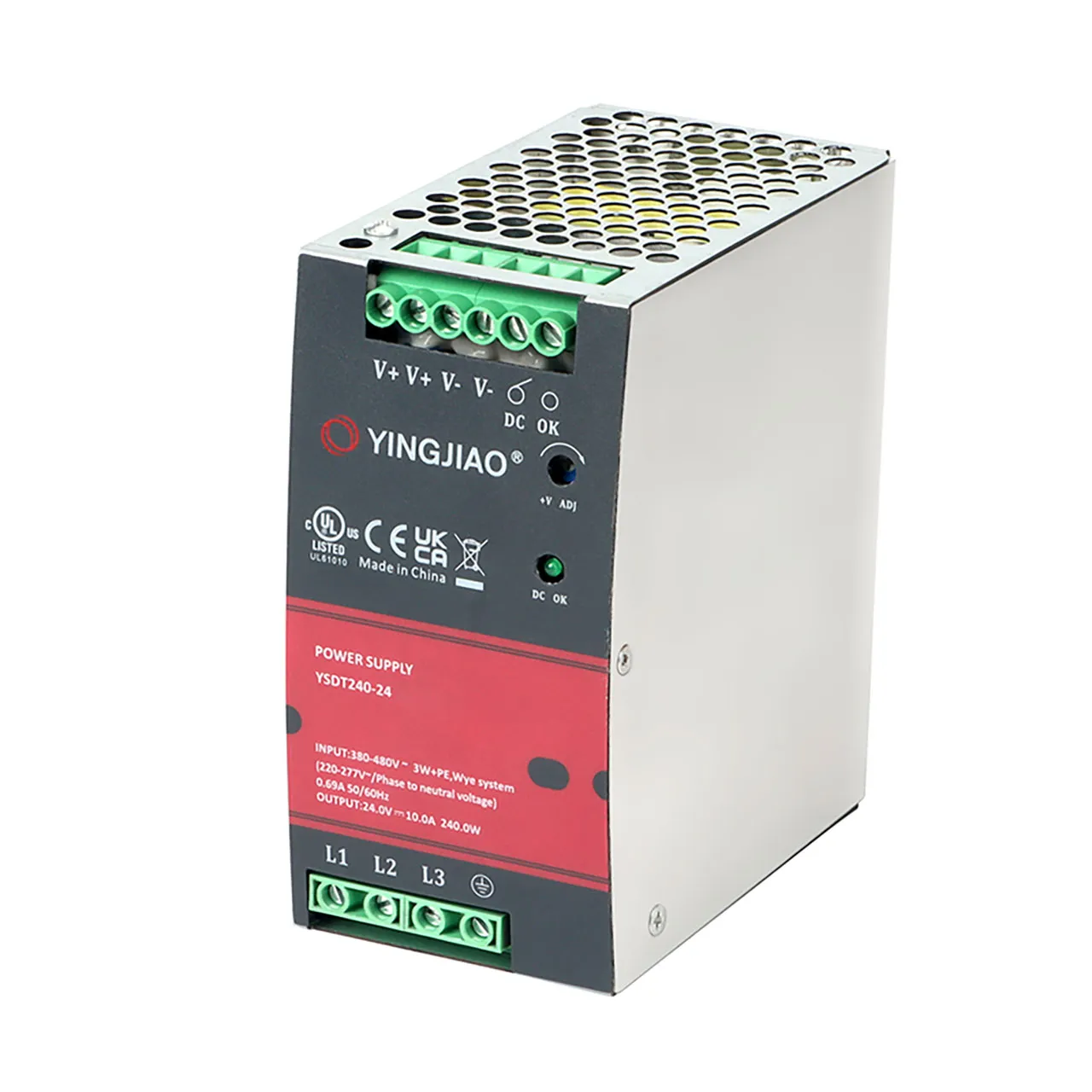

DIN Rail Power Supply 24 VDC 10A 240W 340 VAC to 550 VAC Input
Features
- 3-phase 340 VAC to 550 VAC wide range input (2-phase operation is possible)
- DC OK relay contact
- Protections: Short circuit, overload, over voltage, over temperature
- Installs on DIN Rail TS-35/7.5 & 15
- Built-in Passive PFC function
- Built-in constant current limiting circuit
- Low power dissipation
- Full power between -30°C and +60°C
- 3 year warranty
Overview
Yingjiao's YSTD series are designed with metal housing for three phase systems with a wide range from 350 VAC to 550 VAC. The series offers built-in constant current limiting circuit and passive PFC function, and it operates in a wide temperature range. They are suitable for industrial-related applications such as industrial control, semiconductor fabrication equipment, and factory automation.
