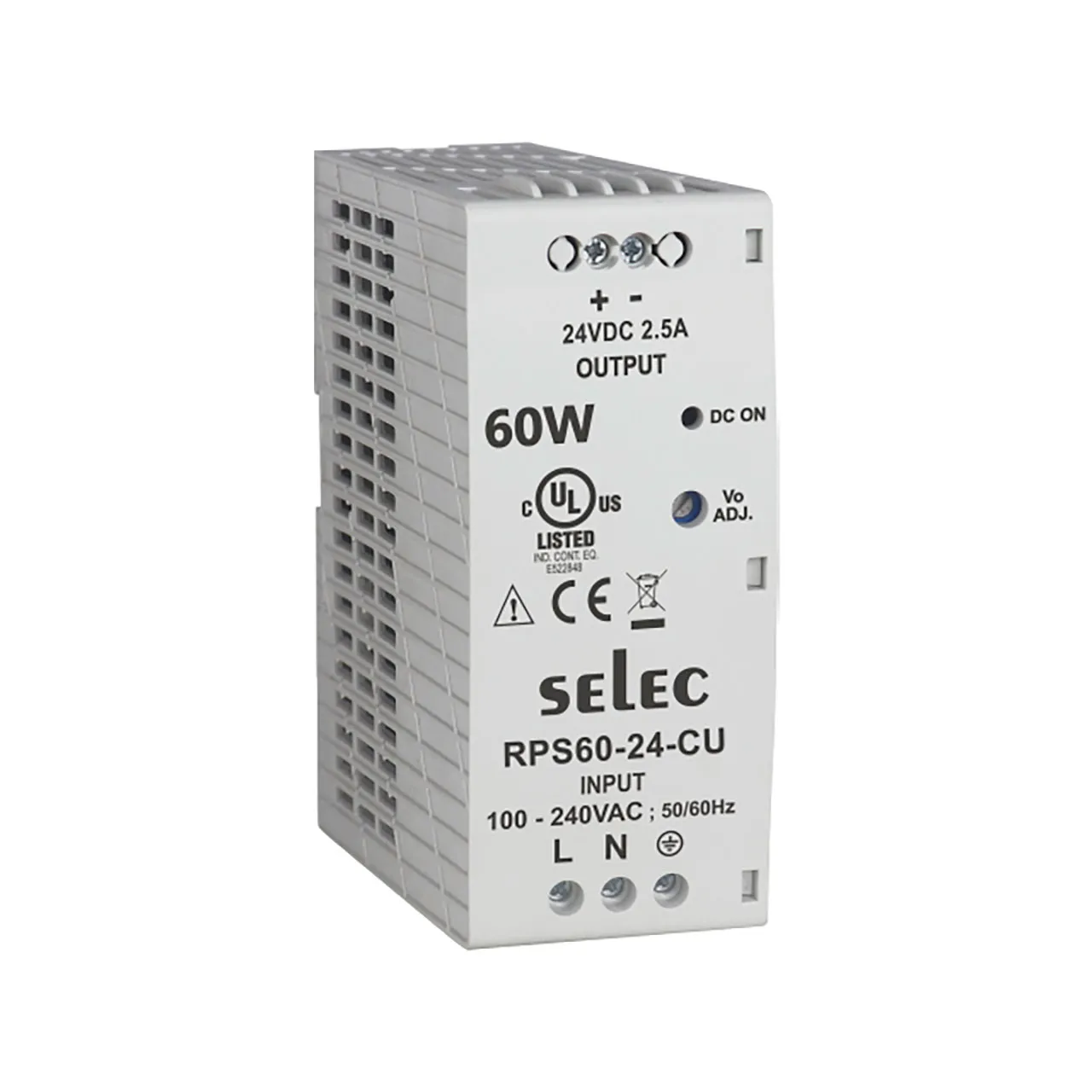

DIN Rail Mounted Power Supply in Plastic Housing 60W 24V/2.5A UL Listed

Features

  • Product Type: Power Supplies
  • Supports 90 - 264 VAC / 127 - 370 VDC
  • Efficiencies up to 87%
  • Protection against short circuit, overload, overvoltage & over temperature
  • Cooling by free air convection
  • UL 508 approved (E522848)

Overview

DIN Rail Mounted Power Supply in Plastic Housing 60W, 24V/2.5A, UL Listed

Product Identification

Product Type:Industrial DIN Rail Power Supply SMPS
Manufacturer Series:RPS60

Compliance

Agency Approvals: CE, CUL, UL

Dimensions & Appearance

Color:White
Depth:4.04 in.
Width:1.69 in.
Height:4.32 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:50 Hz to 60 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.2 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.50 A

Features

PFC Function:No
Low Power Source (LPS):No
Minimum Isolation Voltage:4000V
Efficiency:87%
Power Rating:60 W
,
