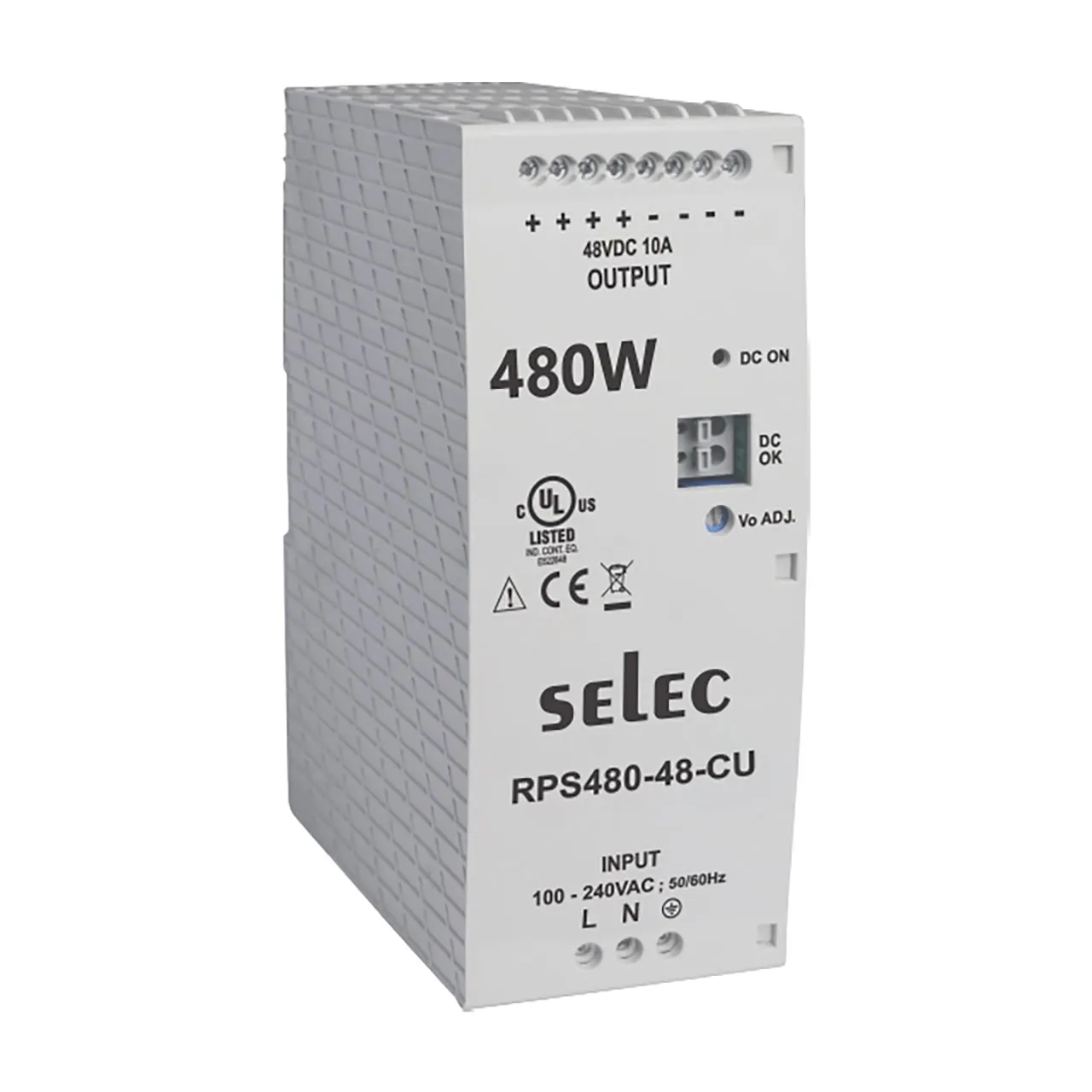

DIN Rail Mounted Power Supply in Plastic Housing 480W 48V/10A PFC UL Listed

Features

  • Product Type: Power Supplies
  • Supports 90 - 264 VAC / 127 - 370 VDC
  • Power factor >0.95 @ full load over entire input range
  • Efficiencies up to 93%
  • Protection against short circuit, overload, overvoltage & over temperature
  • Cooling by free air convection
  • UL 508 approved (E522848)
  • DC OK Relay contact

Overview

DIN Rail Mounted Power Supply in Plastic Housing 480W, 48V/10A, PFC, UL Listed

Product Identification

Product Type:Industrial DIN Rail Power Supply SMPS
Manufacturer Series:RPS480

Compliance

Agency Approvals: CE, CUL, UL

Dimensions & Appearance

Color:White
Depth:6.24 in.
Width:2.36 in.
Height:6.06 in.

Operating conditions

Minimum Operating Temperature:-25°C
Maximum Operating Temperature:70°C

Input

Input Frequency:50 Hz to 60 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:4.8 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:10 A

Features

Low Power Source (LPS):No
PFC Function:Yes
Minimum Isolation Voltage:4000V
Efficiency:94%
Power Rating:480 W
,
