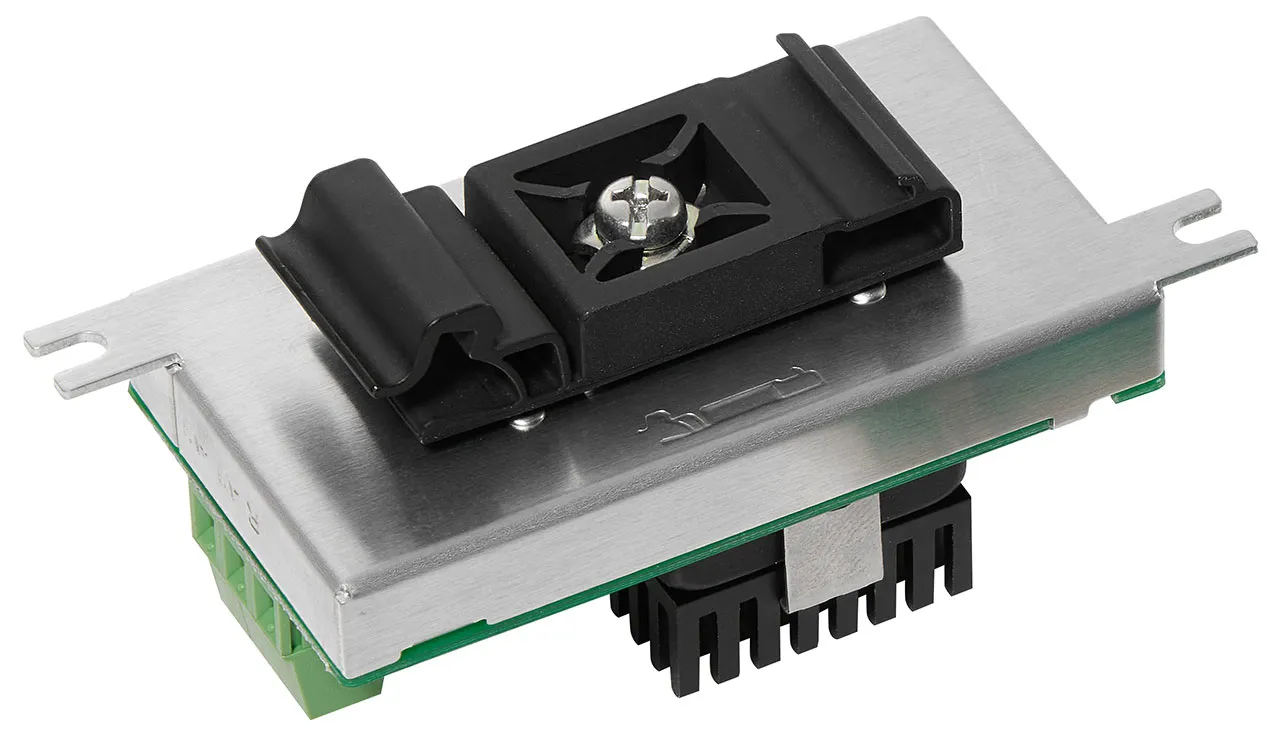

DIN Rail Mount Isolated DC-DC Converter Module Positive Remote On/Off Logic 30W 12V 2.5A 19-74Vin

Features

  • Efficiency up to 90%
  • Fixed Switching Frequency
  • Regulated Outputs
  • Remote On/Off
  • Low No Load Power Consumption
  • Fully Protected (OTP/OCP/OVP/UVLO)
  • 1500Vdc I/O Isolation
  • Operating Case Temperature -40 to +105°C
  • No Tantalum Capacitor Inside
  • UL62368-1 Approval for DC Modules
  • Safety Meets IEC/EN/UL 62368-1
  • Build-In EMI Filter
  • DIN Rail Mount

Overview

The EC5SBW-C(D)MF series of DC-DC converters offers 30 watts of output power at output voltages of 3.3, 5, 12, 15, ±12, ±15VDC. Models have a wide (4:1) input voltage range of 10 to 36VDC (24VDC nominal), or 19 to 74VDC (48VDC nominal) and 1500VDC isolation. The series is fully protected against input UVLO (under voltage lock out), output over-current, output over-voltage, over temperature and continuous short circuit conditions.

The standard control functions include remote on/off (positive or negative) and +10%, -10% adjustable output voltage (single output only). EC5SBW-C(D)MF series is designed to be suitable for distributed power architectures, telecommunications, battery operated equipment, industrial and mobile equipment application.

Product Identification

Product Type:Isolated DC-DC Converter SMPS 4:1 Input
Manufacturer Series:EC5SBW

Compliance

Agency Approvals:UL 62368-1, CE, UKCA

Dimensions & Appearance

Color:Silver
Width:1.48 in.
Height:1.71 in.
Length:3.04 in.
Mounting:DIN Rail

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Input

Input Voltage Range:19 VDC to 74 VDC
Input Voltage:48 VDC
Maximum Input Current:0.702 A

Output

Number of Outputs:1
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Screw Terminal Block
Output Current (Channel 1):2.50 A
Output Current:2.50 A

Features

Pins:6
Minimum Isolation Voltage:1500V
AC Power Cord:NOT INCLUDED
Power Rating:30 W
,
