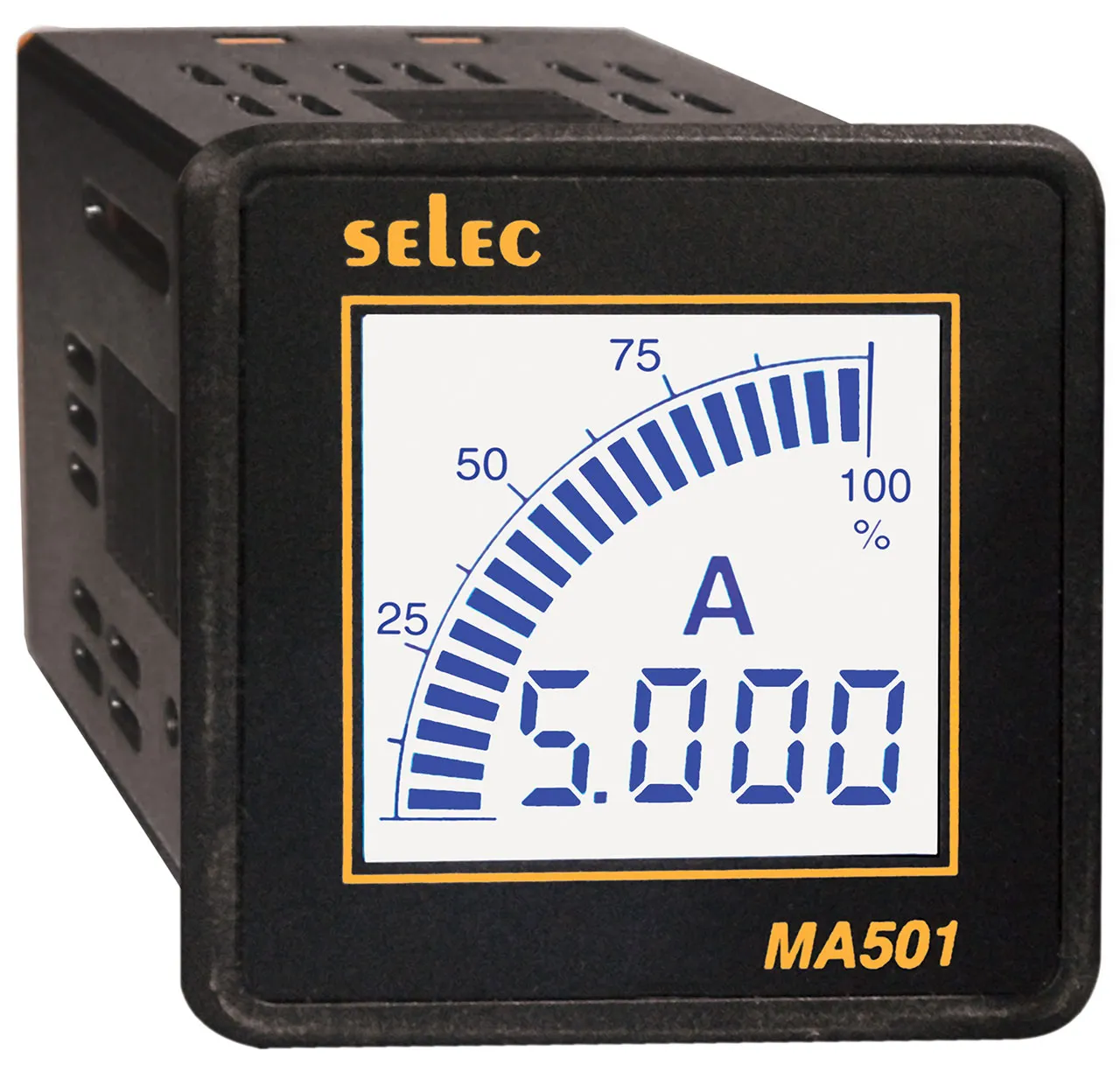

Digital Panel Meter Ampere Meter 1/16DIN LCD Ampere 1 Phase 110VAC

Features

• Digital Display: LCD Display with backlight
• Digits: 4 digits
• Bargraph: Analog bargraph Indicator
• Display Range: 0 ~ 6200A
• Supply Specification: 110 VAC +/-20% (60Hz)
• Electrical Wire System: 1 Phase (2 wire)
• Input Specification - Measurement Type : AC, CT Type (External CT required for current > 5A
• Input Current Range: 50mA ~ 5A (External CT required for current > 5A)
• Frequency: 45 ~ 65Hz
• Parameter Resolution - Current: 0.001, 0.01, 0.1, 1A (depending on CT Primary)
• Parameter Resolution -Sampling Rate: 3 samples / sec
• Accuracy Class - Current : +/-0.5% of Full-Scale Value
• CT Primary: 5, 10, 20, 30, 40, 50, 60, 75, 80. 100, 150, 200, 250, 300, 400, 500, 600, 800, 1000, 1200, 1500, 1600, 2000, 2500, 3000, 4000
• CT Secondary: 5A fixed (External CT must be connected for current >5A)
• Temperature: Operating: -10°C~55°C, Storage: -20°C~ 75°C
• Humidity: Up to 85% RH
• Protection Level: IP65 for Faceplate
• Size: 1/16 DIN, 48 mm x 48 mm
• Weight: 0.25 (113g)
• Terminal Size Acceptability and Torque: 20-14 AWG (0.5 - 2.5mm2), 6-7 lb-in. (0.68 - 0.79Nm)
