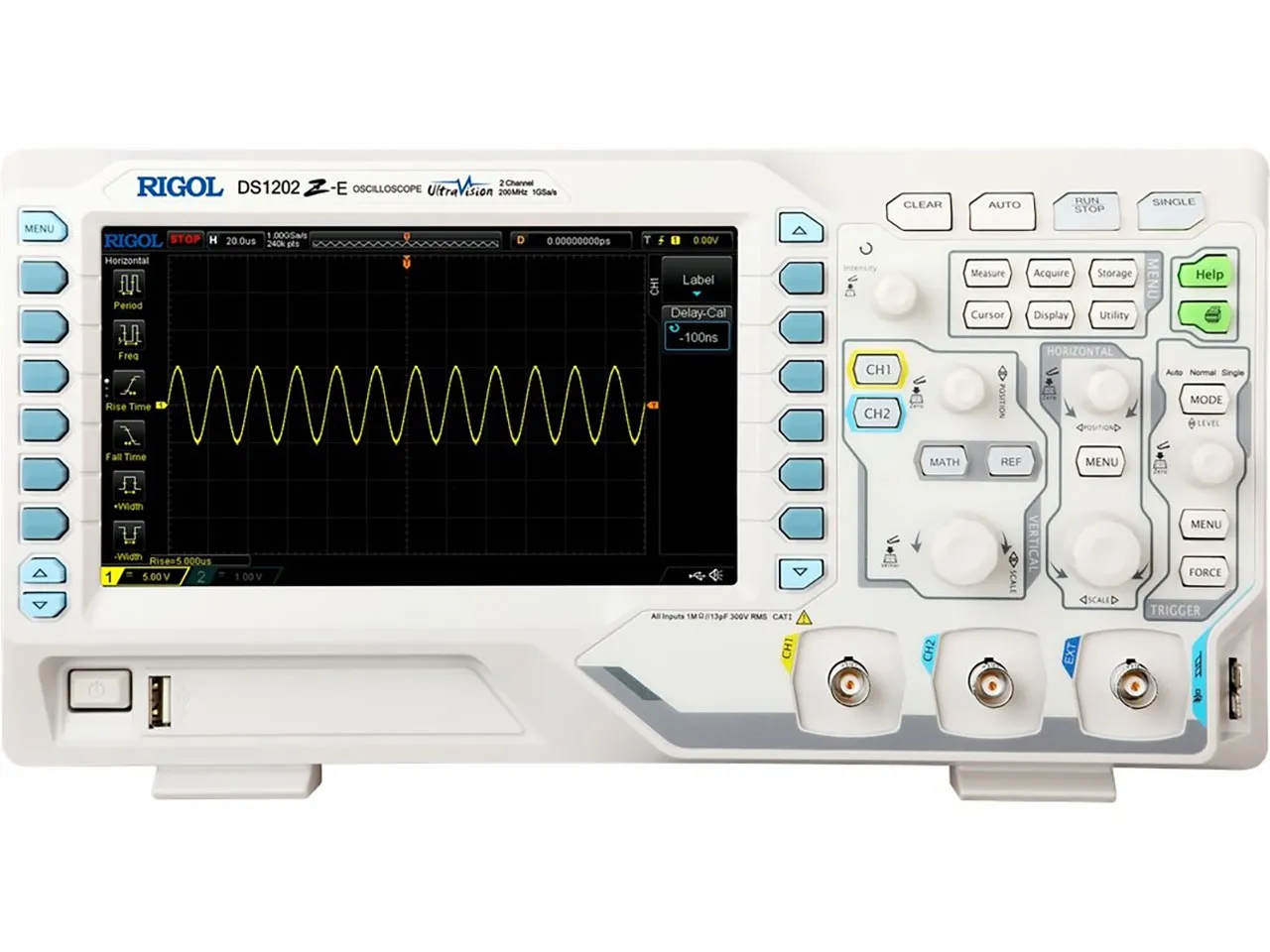

Digital Oscilloscopes 2 Channel 200 MHz USB Interface 7" Color TFT LCD

Specifications

  • Type: Bench, Digital
  • Bandwidth: 200 MHz
  • Channels: 2 Analog
  • Display Type: 7" TFT LCD, 800x480 intensity graded color display
  • Interface: USB Host & Device, LAN (LXI), AUX
  • Memory Size: 12 Mpts (2 ch), 24 Mpts (single channel)
  • Function: Record, Playback
  • Probe Type: Two PVP2350 350 MHz passive HighZ probes
  • Sampling Rate (Per Second): 1 GSa/s (single channel); 500 MSa/s (dual channel)
  • Input Impedance: 1 M - 15 pF
  • Up to 30,000 wfms/s waveform capture rate
  • Up to 60,000 frames hardware real-time waveform recording and playback functions
  • Voltage - Input (Max): CAT I 300V, CAT II 100V
  • Voltage - Supply: 100 to 240 VAC
  • Includes: Passive Probes, Power Cord, USB Cable

Product Identification

Product Type:Digital Oscilloscope

Compliance

RoHS Status:ROHS Compliant

Features

Sampling Rate:1 GS/s
Number of Channels:2
Display:7 in. LCD
Bandwidth:200 MHz
,
