Digital Multimeters Mini 10 Function

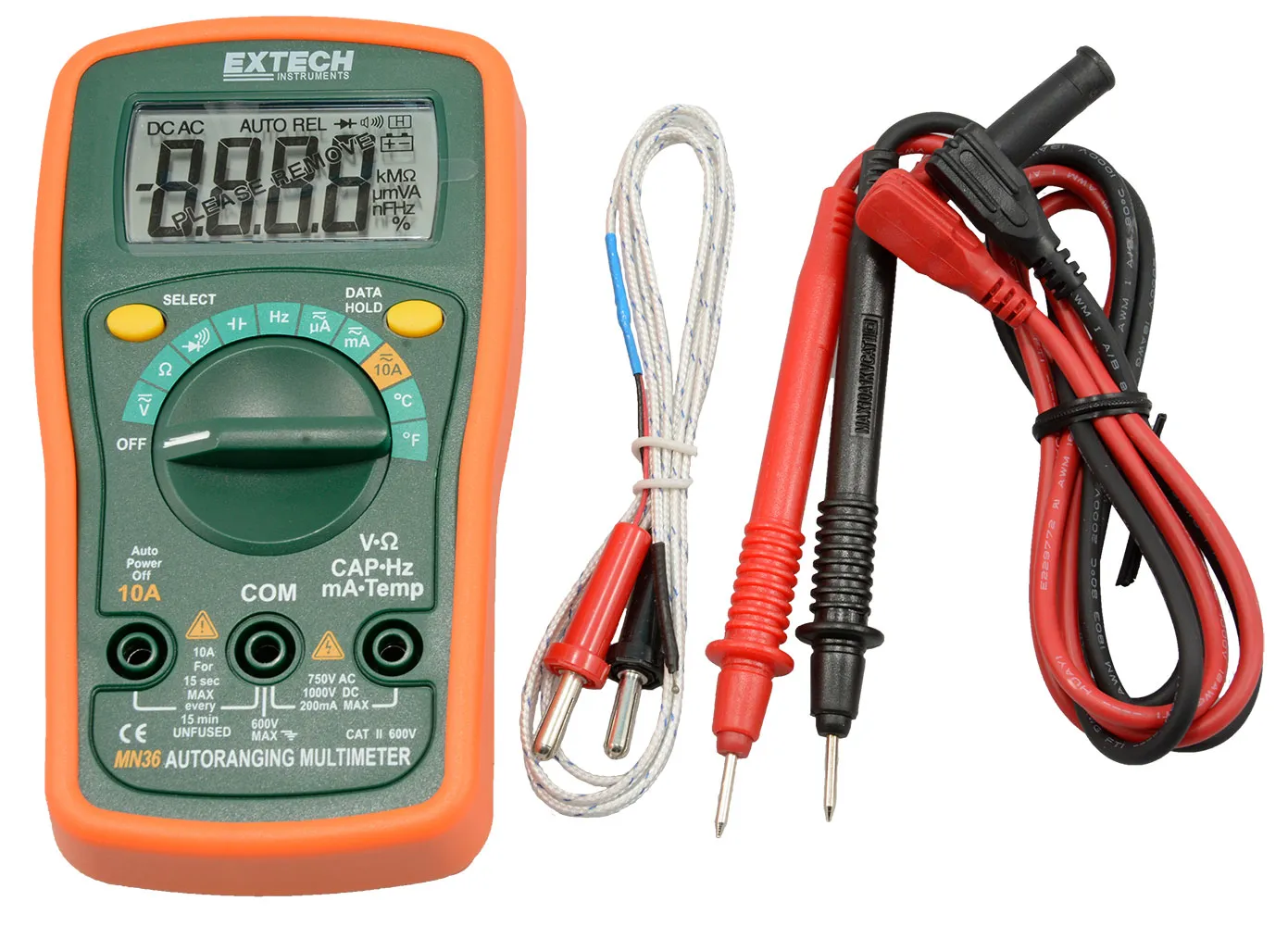

The Extech MN36 digital multimeter is compact but still packed with features. It's capable of measuring AC and DC voltage up to 600 volts and is auto-ranging, which means it automatically displays readings with the proper decimal place location and maximum resolution. It comes with protective rubber holster, 2xAAA batteries, bead wire Type-K temperature probe and test leads.

Features

• Large easy to read digital display
• Type: DMM
• DC Voltage Range (V) : 400mV to 600 V
• AC Voltage Range (V) : 4 V to 600 V
• DC Current function to 10A
• Resistance Range (Ω) : 400 Ohms to 40 MOhms
• Capacitance Range (F) : 4nF to 100 µF
• Frequency Range (Hz) : 10 Hz to 5 MHz
• Thermocouple Temperature measurements to 1400°F (750°C)
• Resistance tests with Continuity and Diode functions
• Convenient mini size with protective rubber holster and tilt stand
• Data Hold locks reading in the display
• Size : 5.43 x 2.83 x 1.5"
• Includes protective rubber holster, battery, Test leads and Type K thermocouple probe

Specifications

• DC Voltage: 600V (0.1mV) ±0.5%
• AC Voltage: 600V (0.1V) ±1.2%
• DC Current: 10A (0.1µA) ±1.2%
• AC Current: 10A (0.1µA) ±1.5%
• Resistance: 40M (0.1µΩ) ±1.2%
• Capacitance: 100µF (0.001nF) ±3.0%
• Frequency: 5MHz (0.01Hz) ±1.0%
• Temperature: -4 to 1400°F (1°) -20 to 750°C ±(1%+4°)
• Power: 2 x AAA batteries
• Dimensions/Weight: 5.43x2.83x1.5" (138x72x38mm) / 5.4oz (153g)
