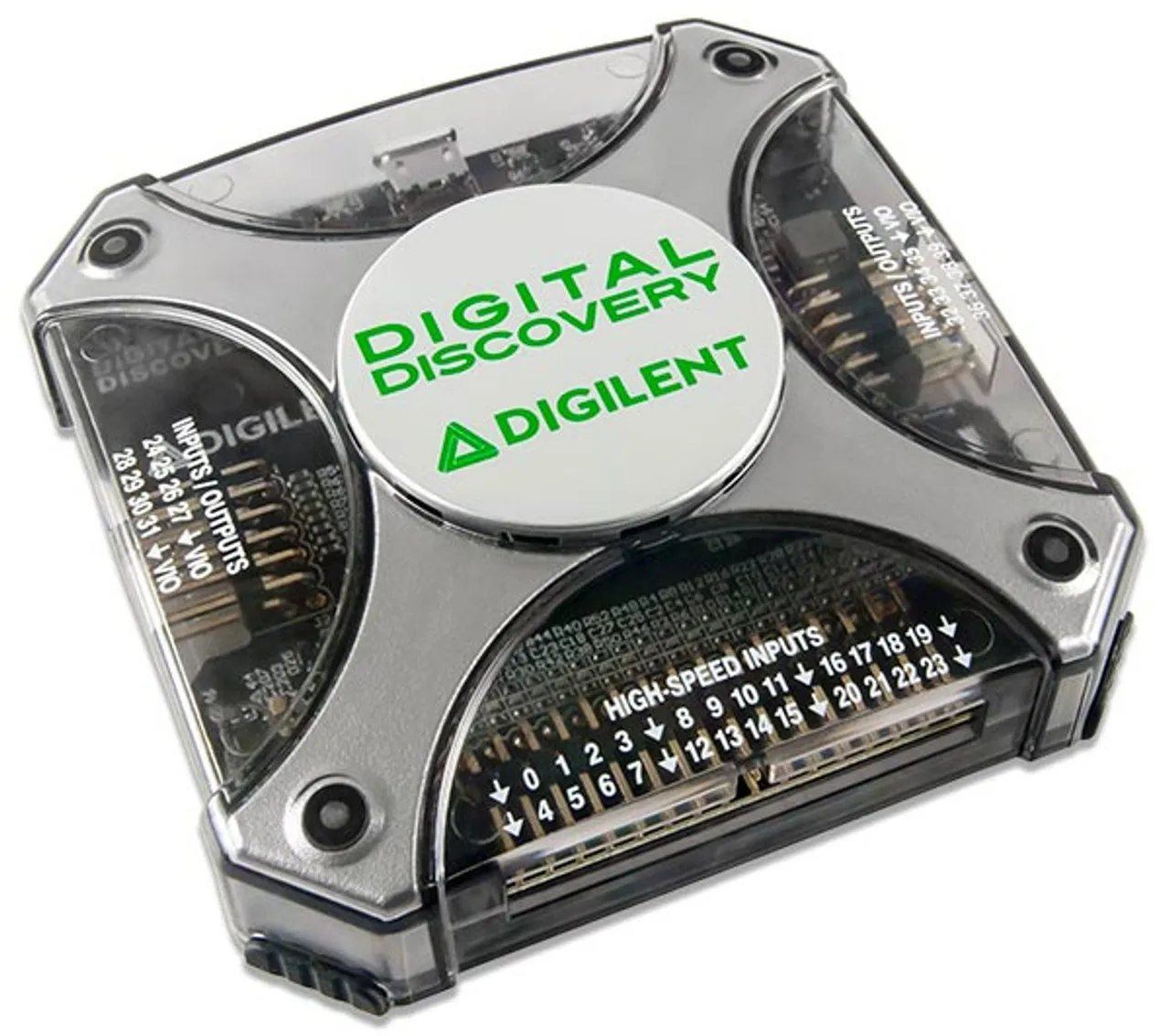

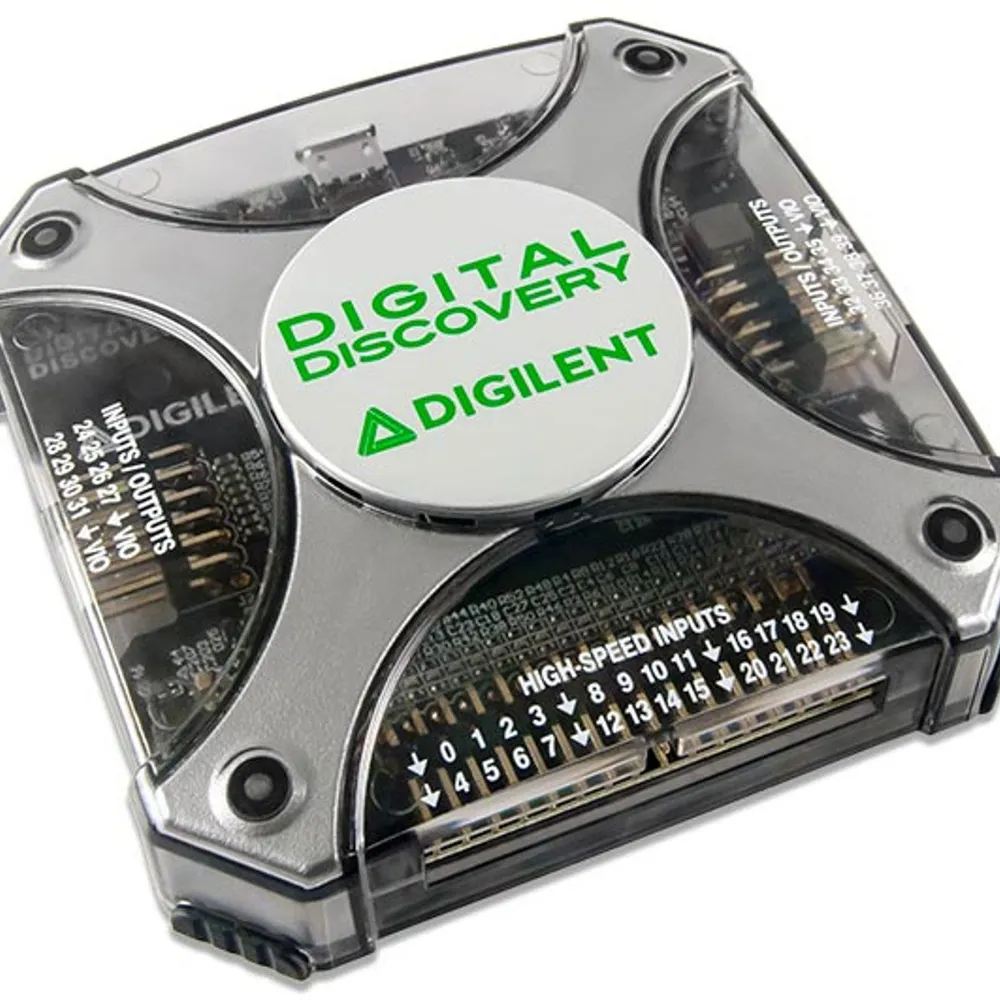

Digital Discovery with High Speed Adapter and 16 Logic Probes

The Digilent Digital Discovery™ is a combined logic analyzer and pattern generator instrument that was created to be the ultimate embedded development companion. Digital Discovery was designed to optimize channels, speed, and portability. A small form factor facilitates easy storage and provides a whole suite of advanced features to allow you to debug, visualize, and simulate digital signals for most embedded projects. Digital inputs and outputs can be connected to a circuit using simple wire probes or breadboard wires. The Digital Discovery is driven by the free WaveForms software and can be configured to be any of the below instruments:

• 32-channel digital logic analyzer (1.2 to 3.3V CMOS, 8 channels at 800MS/s*, 16 channels at 400MS/s*, and 32 channels at 200MS/s)
• Digital Bus Analyzers (SPI, I²C, UART, CAN, Parallel)
• 16-channel pattern generator (1.2 to 3.3V CMOS, 100MS/s)
• 16-channel virtual digital I/O including buttons, switches, and LEDs ? perfect for logic training applications
• A programmable power supply of 1.2 to 3.3V/100mA. The same voltage supplies the Logic Analyzer input buffers and the Pattern Generator input/output buffers, for keeping the logic level compatibility with the circuit under test.
• All Inputs and Outputs Programmable
  • Selectable Digital IO pulls
  • Selectable Drive, Slew, Pull and Frequency
  • Logic Level Selectable between 1.2V and 3.3V

*Note: to obtain speeds of 200MS/s and higher, the High Speed Adapter must be used.

What's Included

• Digital Discovery packaged in a regular-sized project box
• 2x6 flywire assembly
• 2x16 flywire assembly
• USB A to Micro-B cable
• High Speed Adapter
• 16 Logic Probes

The Digital Discovery is designed for anyone embarking on embedded development with features and specifications deliberately chosen to maintain a small and portable form factor, withstand use in a variety of environments, and keep costs down while balancing the requirements of operating on USB Power.

The resource center for the Digital Discovery is the central hub of technical content for the device, and contains everything to get started and reduce mean time to test. This includes a Getting Started Guide, documentation, Tutorials on each instrument, example projects and a link to technical support.
