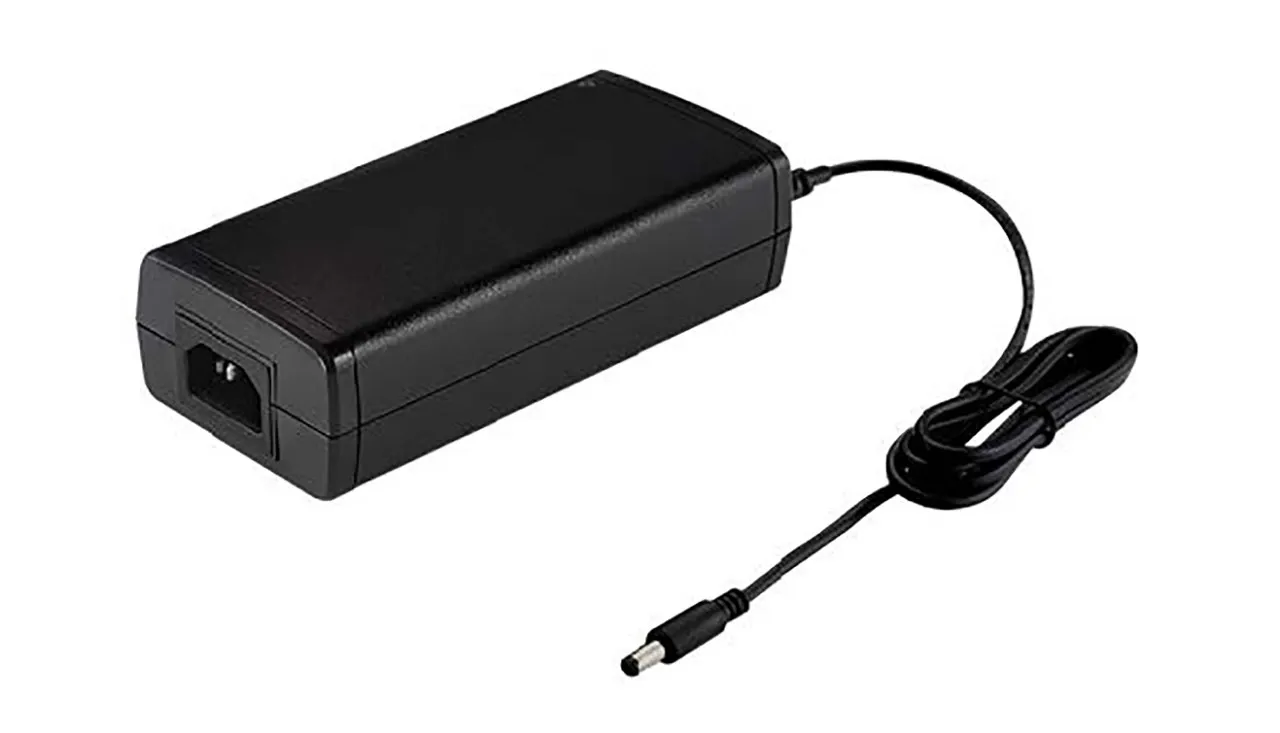

Desktop Switching Power Adapter 15VDC 4A 60W 2.1mm DC Plug C14 Inlet
Product Identification
Type:Auto Switching SMPS
Product Type:Switching Power Adapter
Manufacturer Series:YS50
Compliance
Agency Approvals: CB, CCC, CE, C-TICK, EAC, EN, FCC, ICC, PSE, TUV, UL
Dimensions & Appearance
Style:Desktop
Color:Black
Height:1.36 in.
Width:2.13 in.
Length:4.59 in.
Operating conditions
Minimum Operating Temperature:-25°C
Maximum Operating Temperature:60°C
Input
Input Frequency:50 Hz, 60 Hz
Input Voltage:85 VAC to 264 VAC
Maximum Input Current:1.5 A
Output
Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage (Channel 1):15 VDC
Output Connector Type:Cylindrical Female
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):4 A
Output Current:4 A
Features
Polarity:Center Positive
Minimum Isolation Voltage:3000VAC
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:89%
Power Rating:60 W
