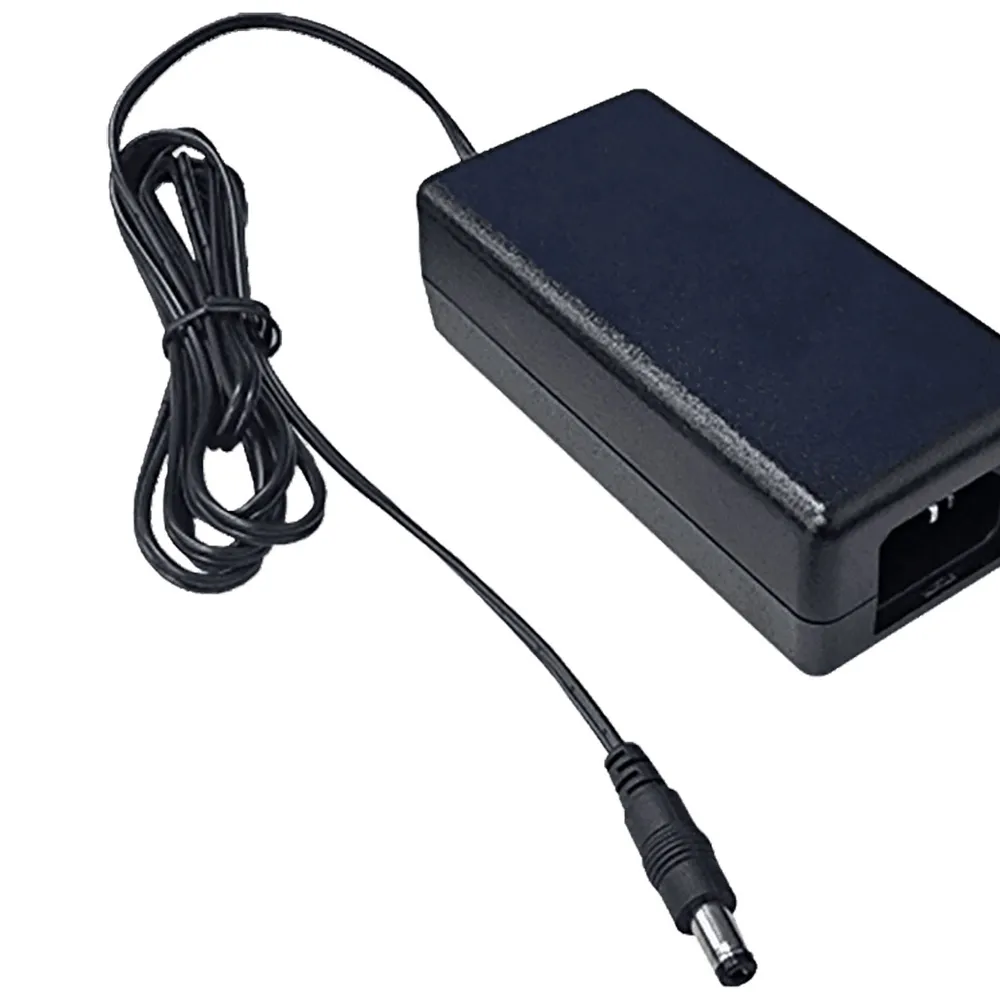

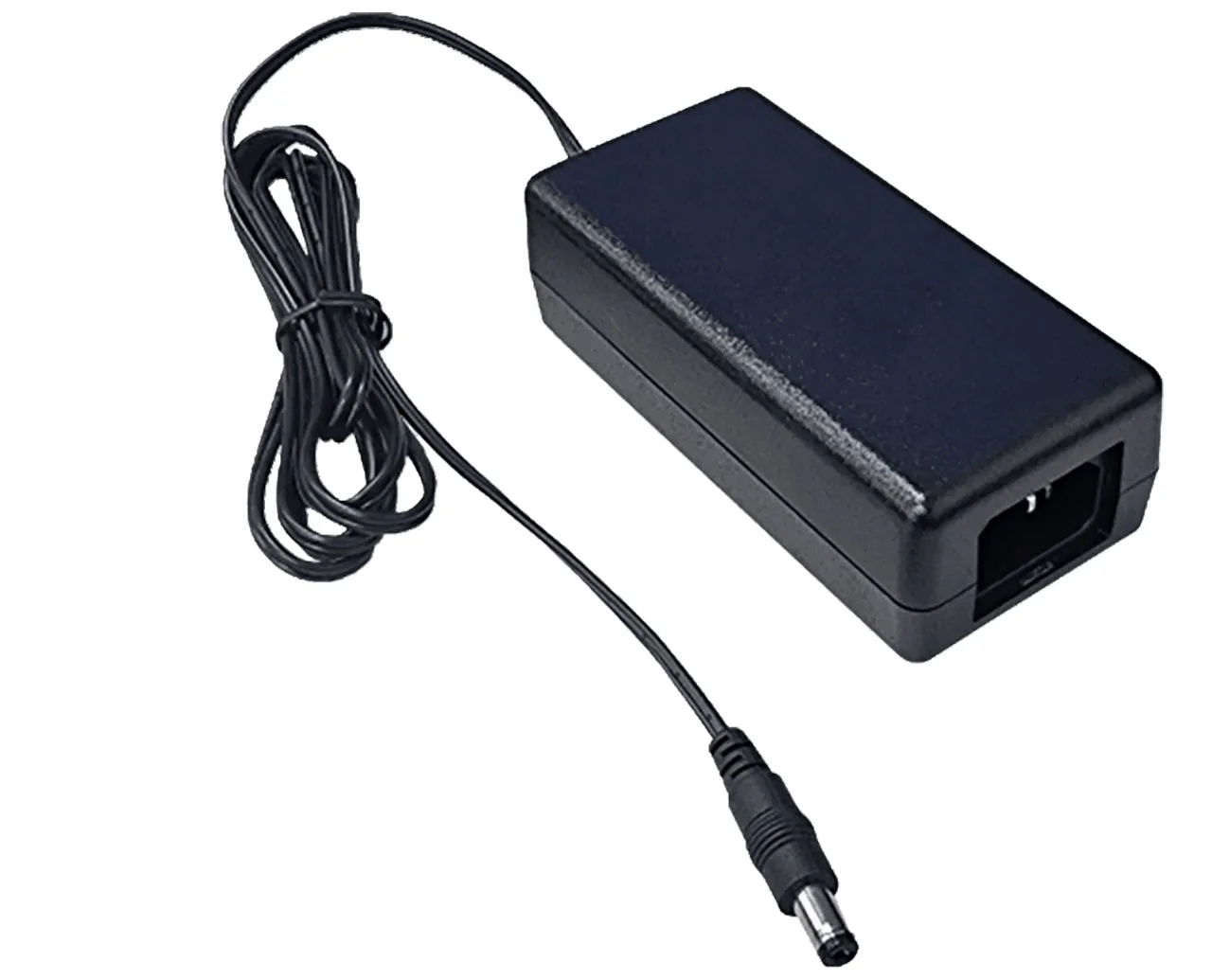

Desktop Power Adapter 36W 24V 1.5A 2.1mm DC Plug C14 Inlet Level VI

Features

  • IEC 320 C14 Inlet
  • US DoE Level VI Efficiency Compliance
  • CoC V5 Tier 2 Compliance
  • Over-Voltage, Over-Current & Short Circuit Protection
  • Class B EMI
  • Up to 5,000 Meter Operating Altitude

Overview

The AA36U series AC/DC desktop adapters provide an output of 36 watts and are available in single output voltages of 12VDC and 24VDC. Utilizing a 1,500mm long output cable, the highly efficient Class I power supplies feature an IEC 60320 C14 inlet, meeting the more demanding Level VII efficiency and no-load limits proposed by the US Department of Energy in February 2023, as well as those for Europe’s voluntary Code of Conduct Version 5 Tier 2.

Approved for operation to +45 degrees C without derating and up to 5,000 meters altitude, the AA36U series power adapters meets ±8kV contact discharge and ±15kV air discharge ESD levels and Class B emissions limits and have UL, CE, UKCA, FCC, CAN ICES-3(B), and NRCan compliance approvals. The cost-effective, high-performance adapter is ideal for use in portable equipment, peripheral and networking applications.

Product Identification

Type:Auto Switching SMPS
Manufacturer Series:AA36U
Product Type:Desktop Power Adapter

Compliance

Agency Approvals: IEC, EN

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.32 in.
Width:1.93 in.
Length:4.06 in.

Operating conditions

Minimum Operating Temperature:-10°C
Maximum Operating Temperature:65°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage (Channel 1):24 VDC
Output Current (Channel 1):1.50 A
Output Connector Type:Cylindrical Female
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.50 A

Features

Polarity:Center Positive
Minimum Isolation Voltage:3000V
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:88.3%
Power Rating:36 W
,
