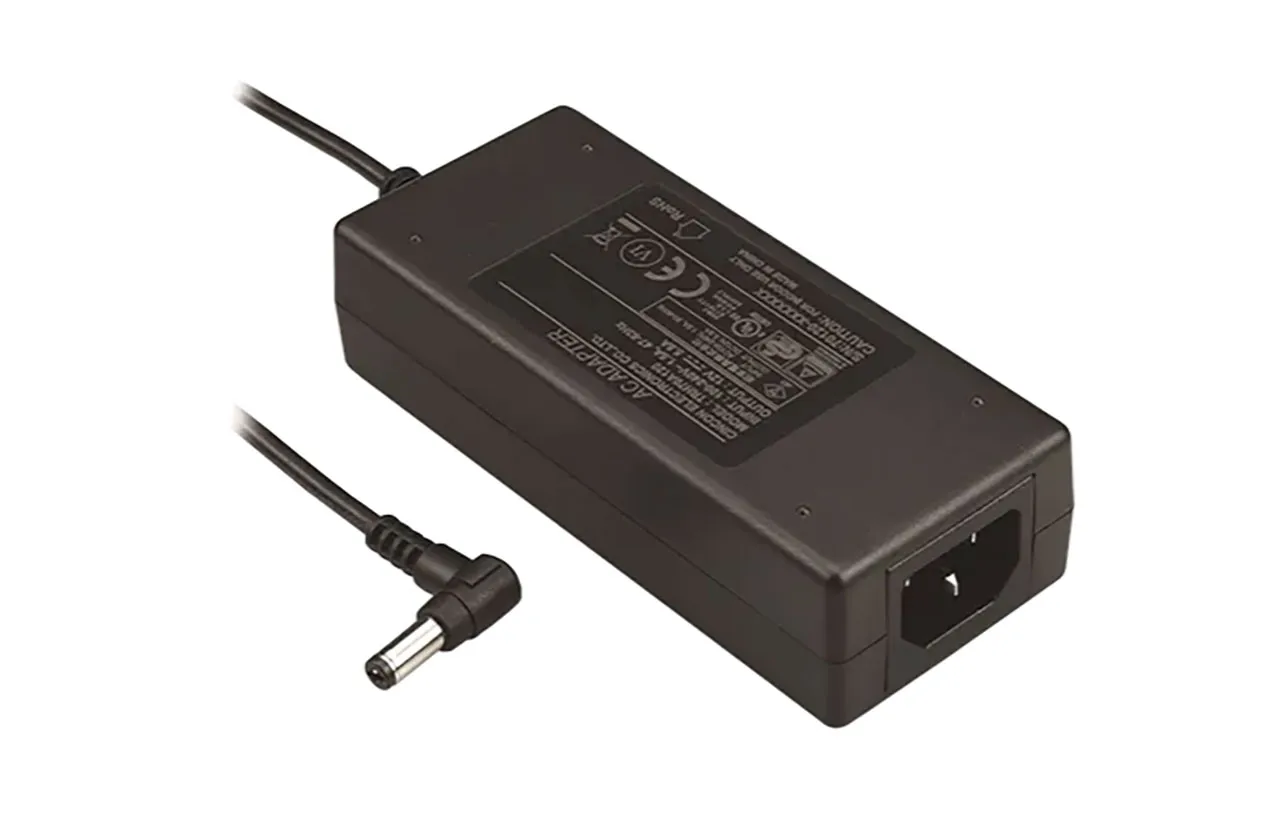

Desktop Power Adapter 12V 5.8A 70W 2.1x5.5mm Plug 2.3' Cord C14-Inlet No AC Cord

Features

  • Universal Input Range 90 to 264 Vac
  • High Efficiency up to 89%
  • Class I
  • No Load Input Power Consumption < 150mW
  • Approval IEC/EN/UL 62368-1 Ed 3.0
  • Approval EN55032 and CISPR/FCC Class B
  • Operating Altitude 5000m
  • Continuous Short Circuit Protection
  • Over Voltage Protection
  • Meets DOE and CoC Tier 2 Level VI

Overview

Desktop Power Adapter 12V 5.8A 70W 2.1x5.5mm Plug 2.3' Cord C14-Inlet No AC Cord.

Product Identification

Type:Auto Switching SMPS
Product Type:ITE Switching Desktop Adapter
Manufacturer Series:TRH70A

Compliance

Agency Approvals: CE, CUL, EN, FCC, PSE, TUV, UKCA, UL

Dimensions & Appearance

Style:Desktop
Color:Black
Height:1.22 in.
Width:2.05 in.
Length:4.72 in.

Operating conditions

Minimum Operating Temperature:-20°C
Maximum Operating Temperature:70°C

Input

Input Frequency:47 Hz to 63 Hz
Input Voltage:90 VAC to 264 VAC
Maximum Input Current:1.5 A

Output

Number of Outputs:1
Output Connector Diameters:2.1mm x 5.5mm
Output Voltage (Channel 1):12 VDC
Output Voltage:12 VDC
Output Connector Type:Cylindrical Female
Additional Output Voltages (VDC):N/A
Output Current (Channel 1):5.80 A
Output Current:5.80 A

Features

Polarity:Center Positive
Minimum Isolation Voltage:3000V
Product Note:Level VI
AC Power Cord:NOT INCLUDED, RECOMMEND 2271575
IP Rating:N/A
Efficiency:88%
Power Rating:70 W
,
