Deluxe SMD Learn To Solder Kit

Features

• Operates on one 9V battery (not included).
• Size of PC board: 2" x 3".
• Complete with all parts, PC board and instructions.
• A super value!
• Skill Level 2.
• Related Items: C6364 - TYPE 2 Plastic Box

Overview

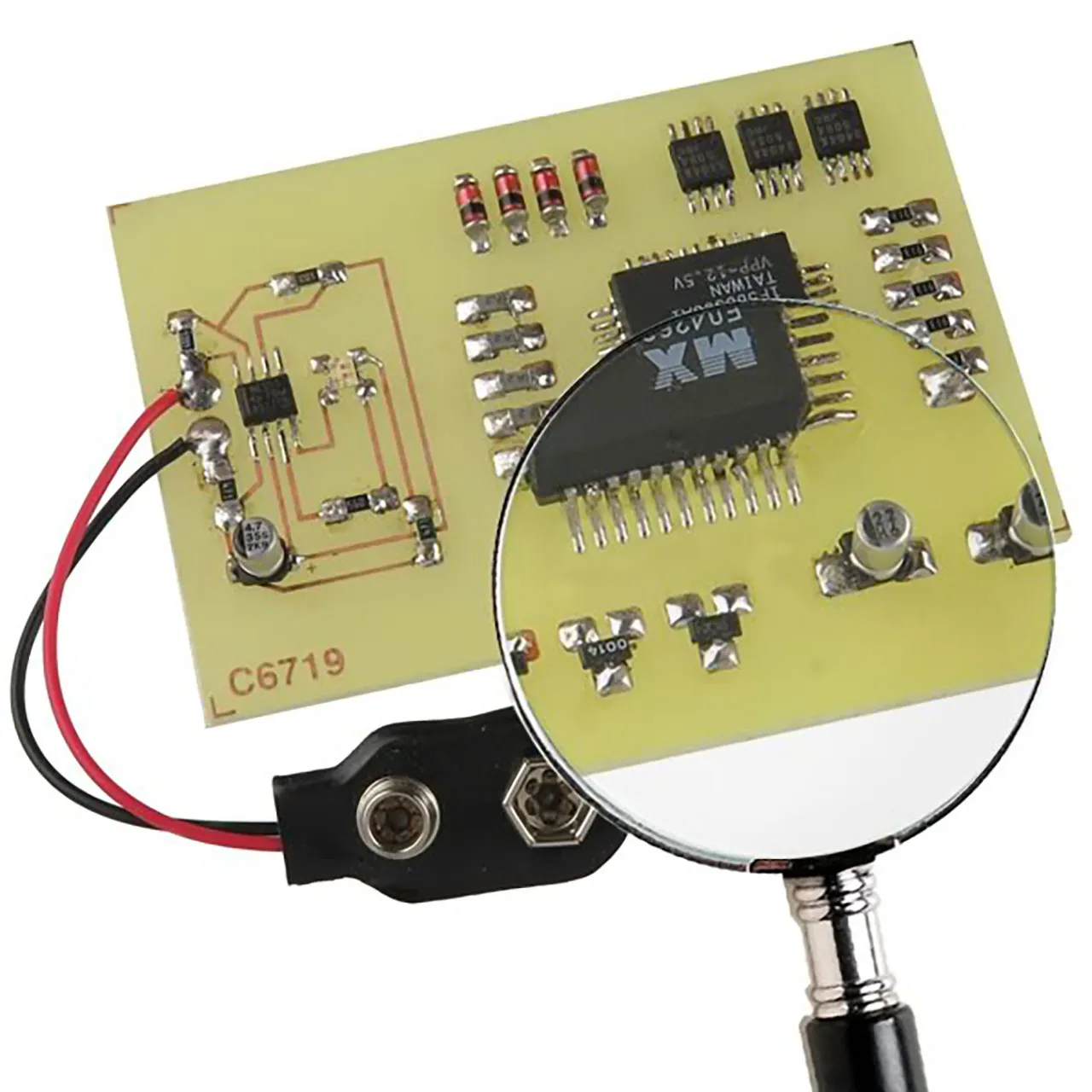

Here's the perfect way to gain experience in soldering, identification and use of Surface Mount Device (SMD) technology. This kit features 32 SMD components, including 3 SMD 8 pin ICs, microprocessor IC, capacitors, resistors, transistors and a LED. The first 24 components are parts used to gain ample soldering experience with SMD parts as the student solders the various parts onto the practice section of the PC board. The last 8 SMD components are used to make an IC type dual LED flasher. This section of the kit flashes a dual color SMD LED. It flashes red then green from the same LED. Not only does the student learn to solder SMD parts but in the end the student has an attractive and functional SMD dual color LED flasher to show for his/her effort. Operates on one 9V battery (not included). Size of PC board: 2" x 3". Complete with all parts, PC board and instructions. A super value! Skill Level 2.
