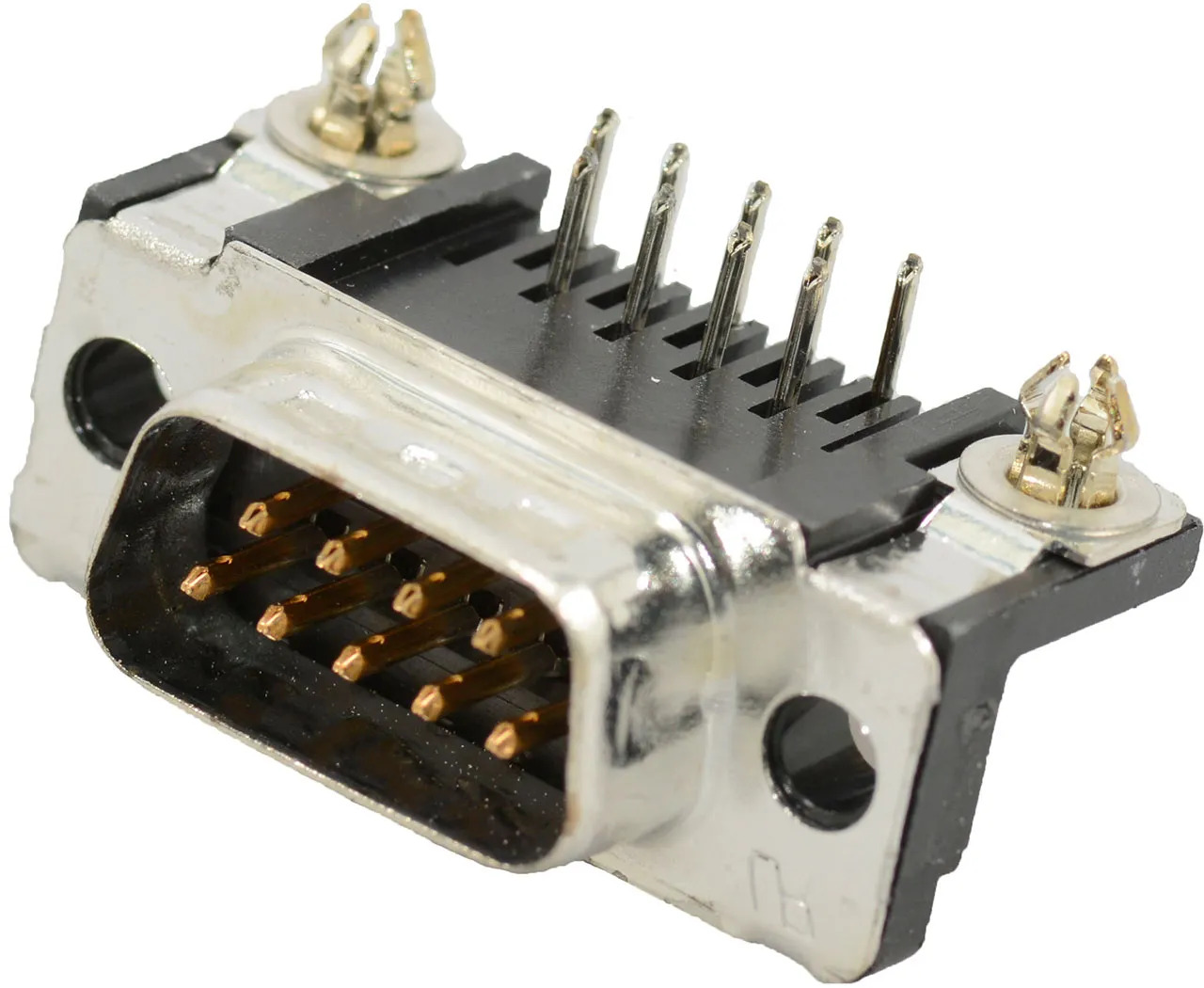

DE9 9-Position Male Pins D-Sub Connector Unthreaded PCB Mount Board Locks

Specifications

  • Backset Spacing: 0.318" (8.08 mm)
  • 0.318" (8.08mm) footprint D-sub socket with forked boardlocks and #4-40 inserts
  • 9 male pins
  • Common names: DB-9, DE-9
  • Right angle PCB mount
  • Housing/Shell (Unthreaded)

Product Identification

Product Type:PCB
Manufacturer Series:ValuePro

Dimensions & Appearance

Mounting:Unthreaded

Features

Number of Rows:2
Shell Material:Metal
Number of Contacts:9
Termination:0.318" Right Angle PCB
Gender:Male
Pitch:2.77 mm
,
