DC-DC Step-Up Constant Current LED Driver 64W 1400mA 12.5-46V 9.5-32Vin PC Pins

Features

  • Wide DC input voltage operation 9.5-32V
  • DC/DC step-up converter
  • Constant current output: 700mA to 1750mA
  • Wide output LED forward voltage up to 80V DC
  • High efficiency up to 96%
  • 2 in 1 dimming (0-10V, PWM)
  • Protections: short circuit, over voltage
  • Cooling by free air convection
  • Fully encapsulated
  • 3-year warranty

Overview

The LDH-65 series is a 65W DC/DC LED driver featuring constant current output. The LDH-65 operates from 9.5-32VDC and offers models with different rated current ranging between 700mA and 1750mA. Thanks to the efficiency up to 96%, the 94V-0 flame retardant plastic case, and the fully potted silicone, enhance the heat dissipation allowing this series to fit solar LED street lights. In addition, LDH-65 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting systems.

Applications

  • DC battery source lighting
  • Portable lighting
  • LED solar street lighting
  • LED greenhouse lighting
  • LED low-bay lighting

Product Identification

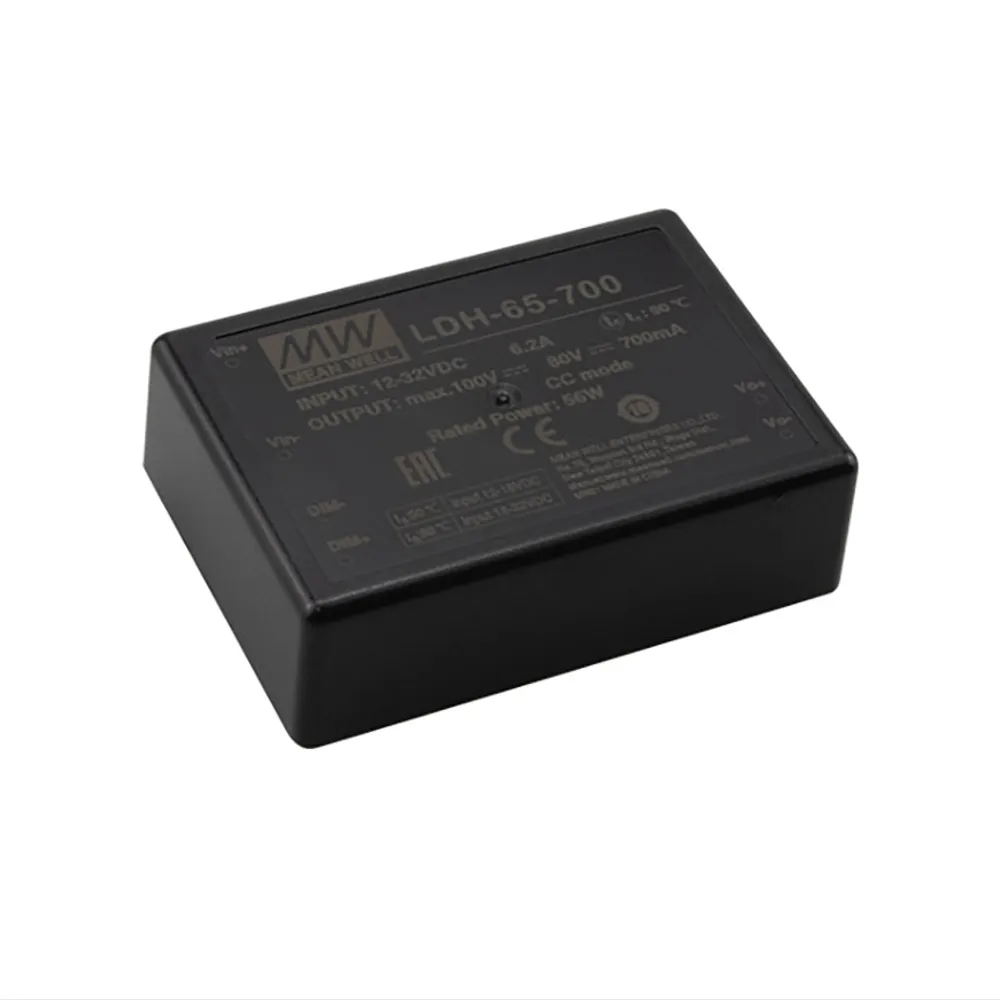

Manufacturer Series:LDH-65
Product Type:DC-DC Step-Up Constant Current SMPS LED Driver

Compliance

Agency Approvals:CE, EN, EAC, UKCA

Dimensions & Appearance

Style:Encapsulated
Color:Black
Height:0.89 in.
Width:2.09 in.
Length:2.95 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:60°C

Input

Input Frequency:N/A
Input Voltage:9.5 VDC to 32 VDC
Maximum Input Current:6.2 A

Output

Number of Outputs:1
Output Voltage (Channel 1):12.5 VDC to 46 VDC
Output Current (Channel 1):1.40 A
Output Range:12.5 VDC to 46 VDC
Output Connector Type:PC Pins
Output Voltage:See Output Range
Output Current:1.40 A

Features

PFC Function:No
Minimum Isolation Voltage:N/A
IP Rating:N/A
Efficiency:95%
Power Rating:64.4 W
,
