DC-DC Regulated Converter 15W 15V 1A 18-75Vin DIP Package 1x1"

Features

• DIP 1"x1" package with industry standard pinout
• 4:1 ultrawide input range
• 3KV DC I/O isolation
• Operating temperature range: -40C to +85C
• No minimum load required
• Compliant to BS EN/EN55032 radiated Class A without additional components
• High efficiency up to 89%
• Protections: short circuit (continuous), overload, over voltage, input under voltage
• 3-year warranty

Overview

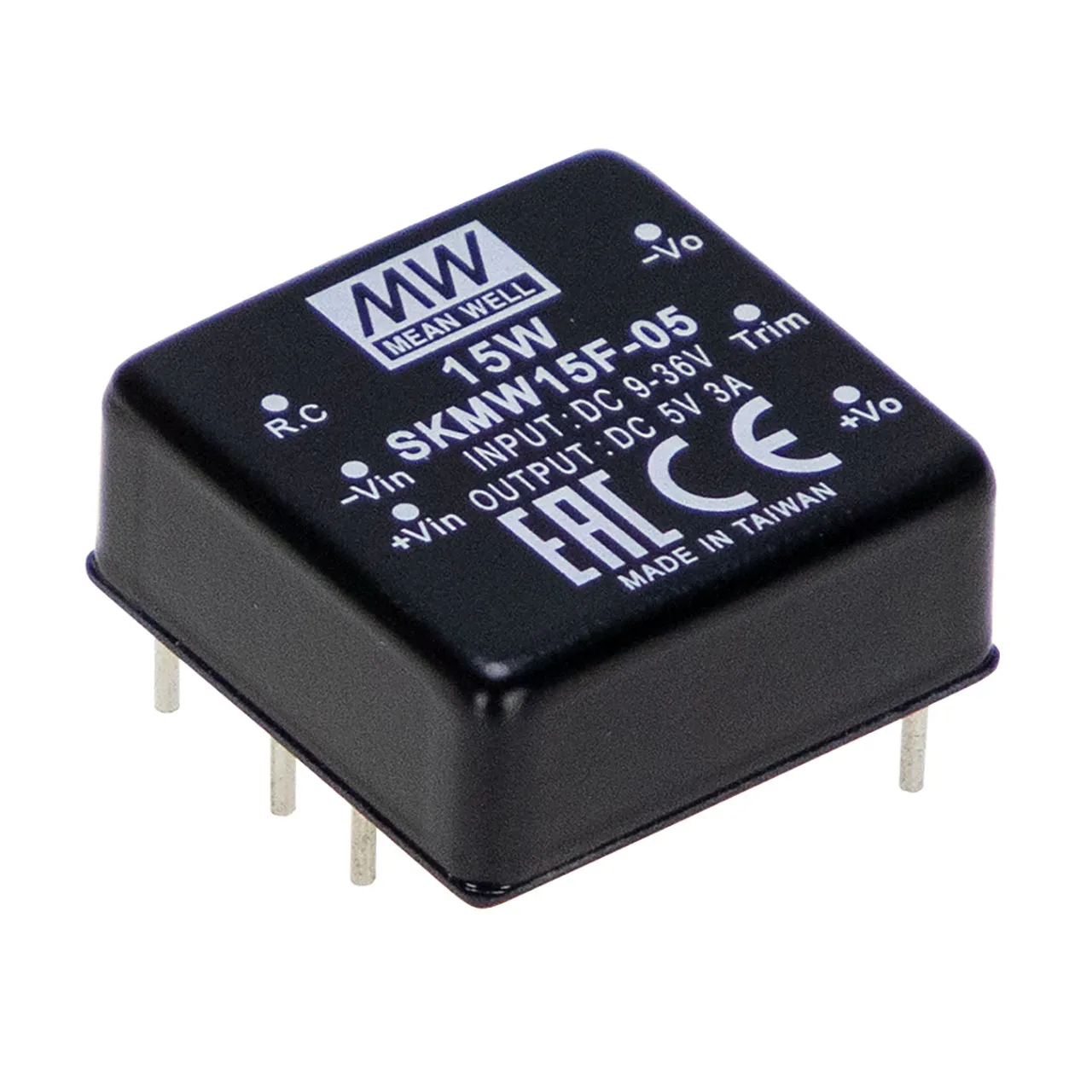

SKMW15 series is a 15W isolated and regulated module type DC-DC converter with DIP 1"x1" package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40 to +85C, 3KV I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload, input under voltage protection, etc. The models account for different input voltage 9-36V and 18-75V 4:1 ultrawide input range, and various output voltage, 3.3V/5V/12V/15V for single output which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and more.

Applications

• Telecom/datacom system
• Wireless network
• Industrial control facility
• Instrument
• Analyzer
• Detector
• Data switch
