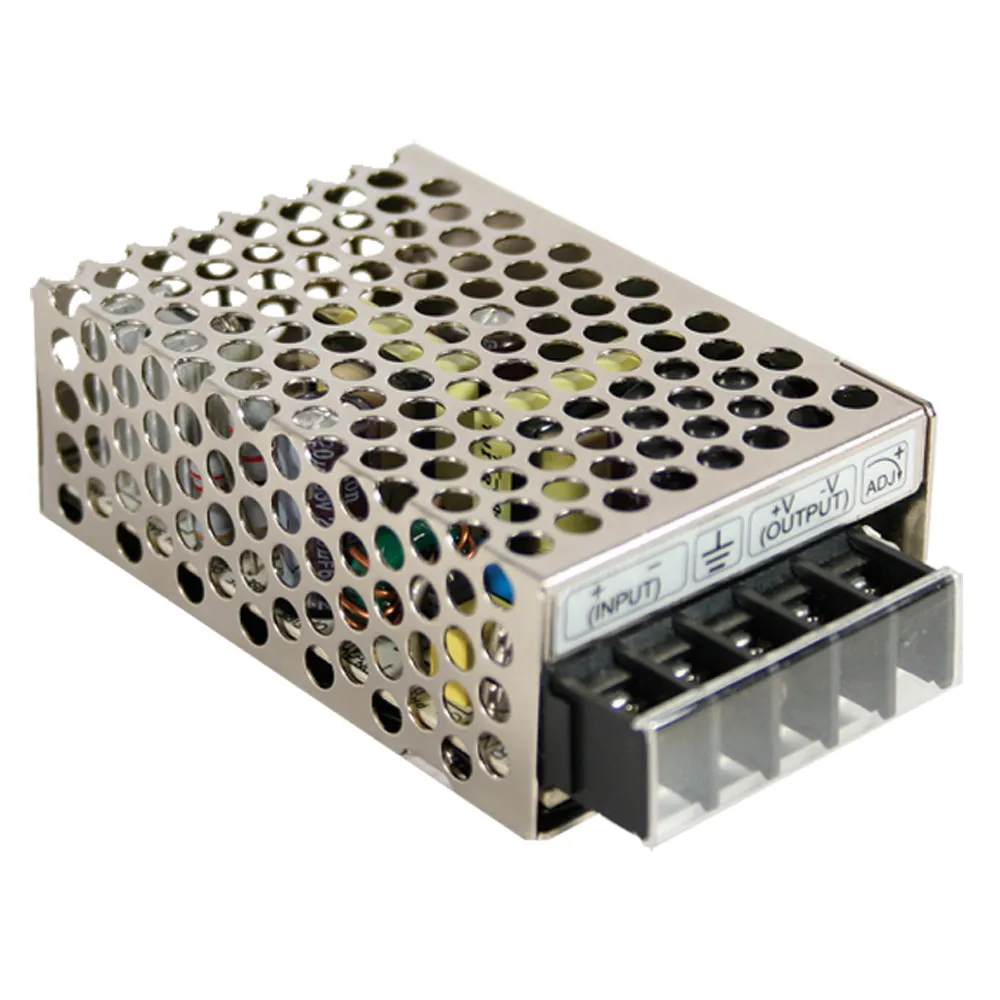

15W ENCLOSED DC/DC CONVERTER
5 Volts @ 3 Amps
Features:
- Input Voltage Range: 9.2V-18V
- Built-in EMI filter, low ripple noise
- 100% Full load burn-in test
- Protections: Short-circuit, Overload, Overvoltage
- Number of terminal pins: 5
- Ripple & Noise: 100mVp-p
- Size: 3.1"L x 2.0"W x 1.1"H
- 2-year warranty
Product Identification
Type:Step Down
Product Type:DC to DC Power Supply SMPS
Manufacturer Series:SD-15
Compliance
Agency Approvals: EAC, EN, CE, CE, EN, EAC
Dimensions & Appearance
Height:1.1 in.
Width:2 in.
Length:3.1 in.
Mounting:Enclosed
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Packaging
Package:Enclosed
Input
Input Voltage Range:9.2 VDC to 18 VDC
Input Voltage:12 VDC
Maximum Input Current:1.9 A
Output
Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:Screw Terminal Block
Additional Output Voltages (VDC):N/A
Output Current:3 A
Features
Pins:5
Switching Regulator:Yes
Efficiency:68%
Power Rating:15 W
