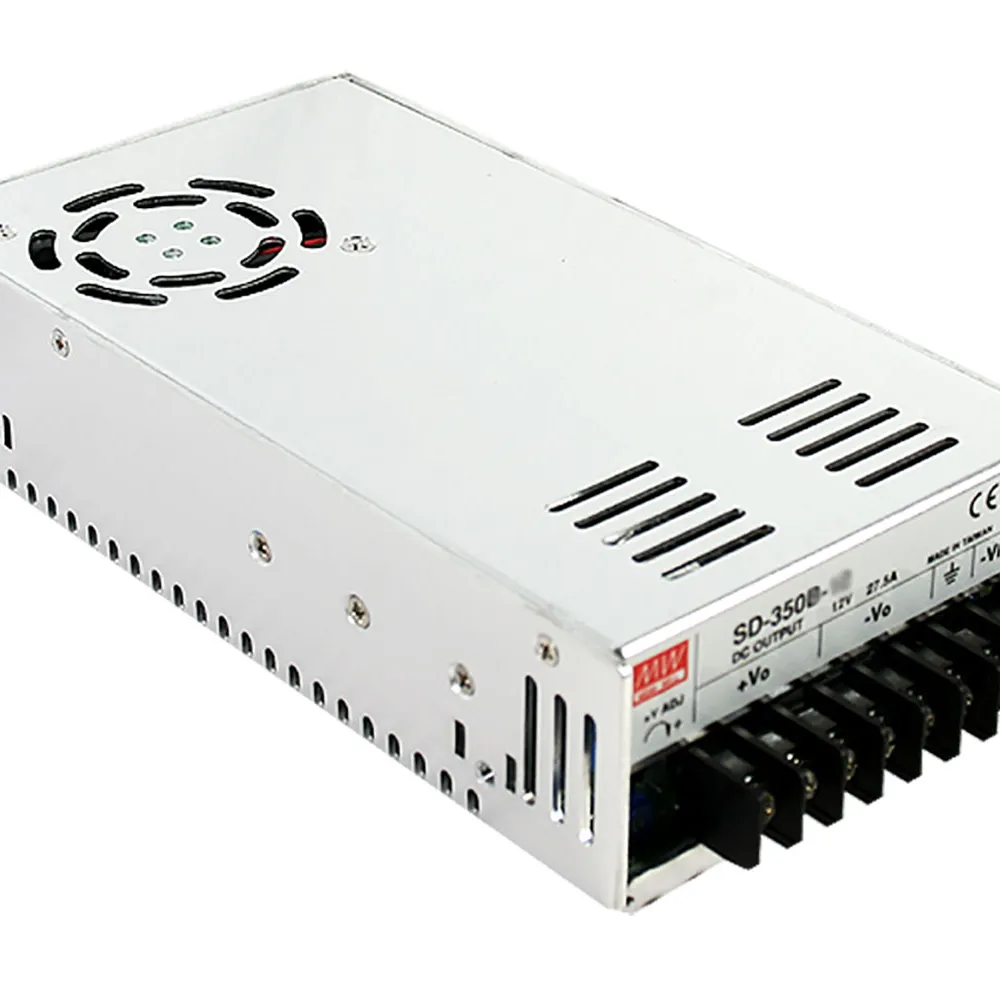

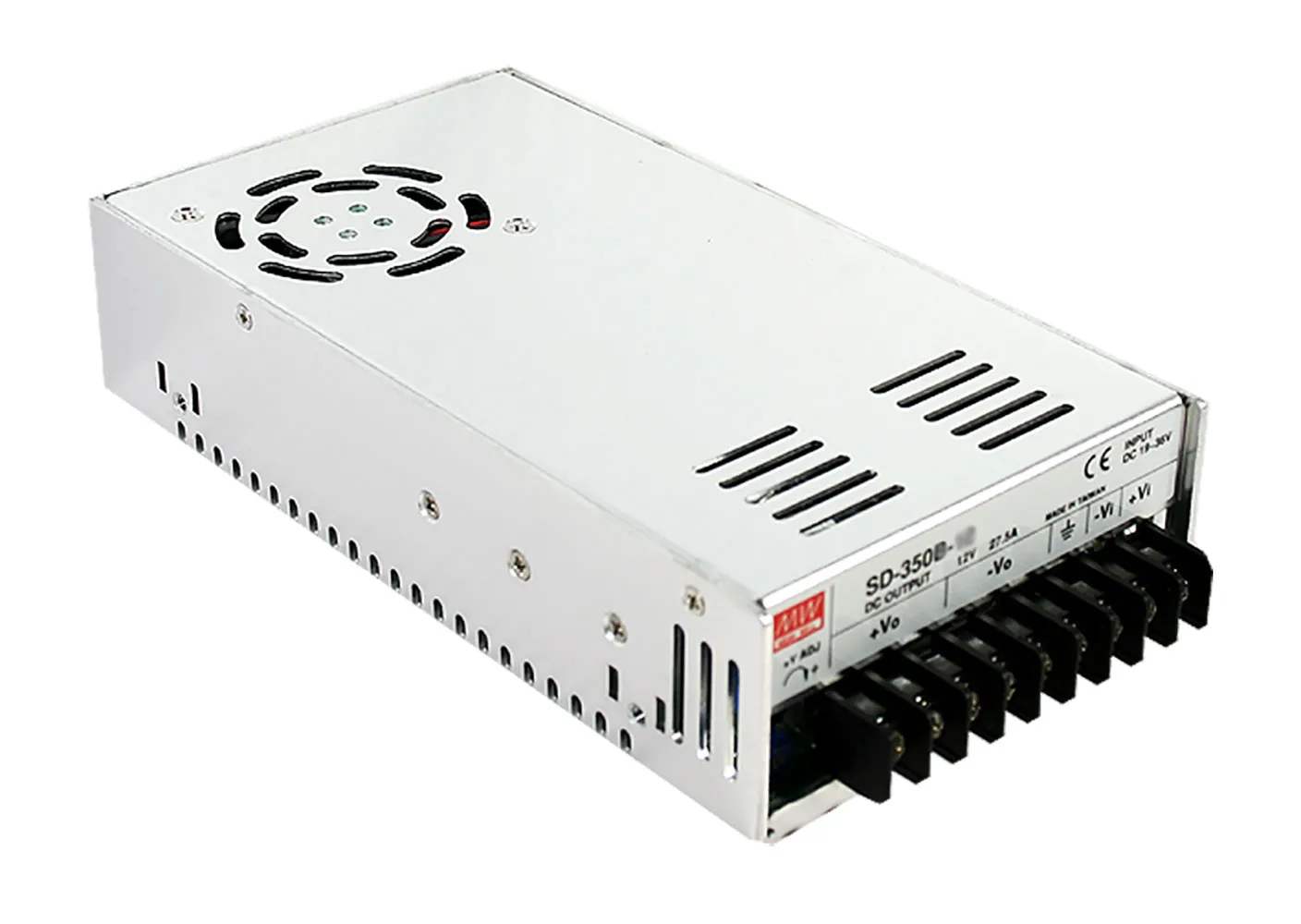

350.4W Single Output DC-DC Converter


Output: 48 Volts @ 7.3 Amps

Features:
  • Input voltage range: 72-144VDC
  • 2:1 wide input range
  • Protection: Short-circuit, overload, over-voltage, over-temperature
  • Forced air cooling by built-in DC fan
  • 100% full load burn-in test
  • 1500VDC I/O isolation
  • Efficiency: 89%
  • Size: 8.5"L x 4.5"W x 2.0"H
  • Weight: 2.4 lbs. (1.1 kg)
  • 2-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC to DC Power Supply SMPS
    Manufacturer Series:SD-350

    Compliance

    Agency Approvals: CB, CE, EAC, EN, TUV, TUV, CB, CE, EN, EAC

    Dimensions & Appearance

    Mounting:Enclosed
    Height:2 in.
    Width:4.5 in.
    Length:8.5 in.

    Operating conditions

    Minimum Operating Temperature:-20°C
    Maximum Operating Temperature:60°C

    Packaging

    Package:Enclosed

    Input

    Input Voltage Range:72 VDC to 144 VDC
    Input Voltage:96 VDC
    Maximum Input Current:6 A

    Output

    Number of Outputs:1
    Output Connector Type:Screw Terminal Block
    Output Voltage:48 VDC
    Additional Output Voltages (VDC):N/A
    Output Current:7.30 A

    Features

    Switching Regulator:No
    Pins:9
    Efficiency:89%
    Power Rating:350.4 W
    ,
