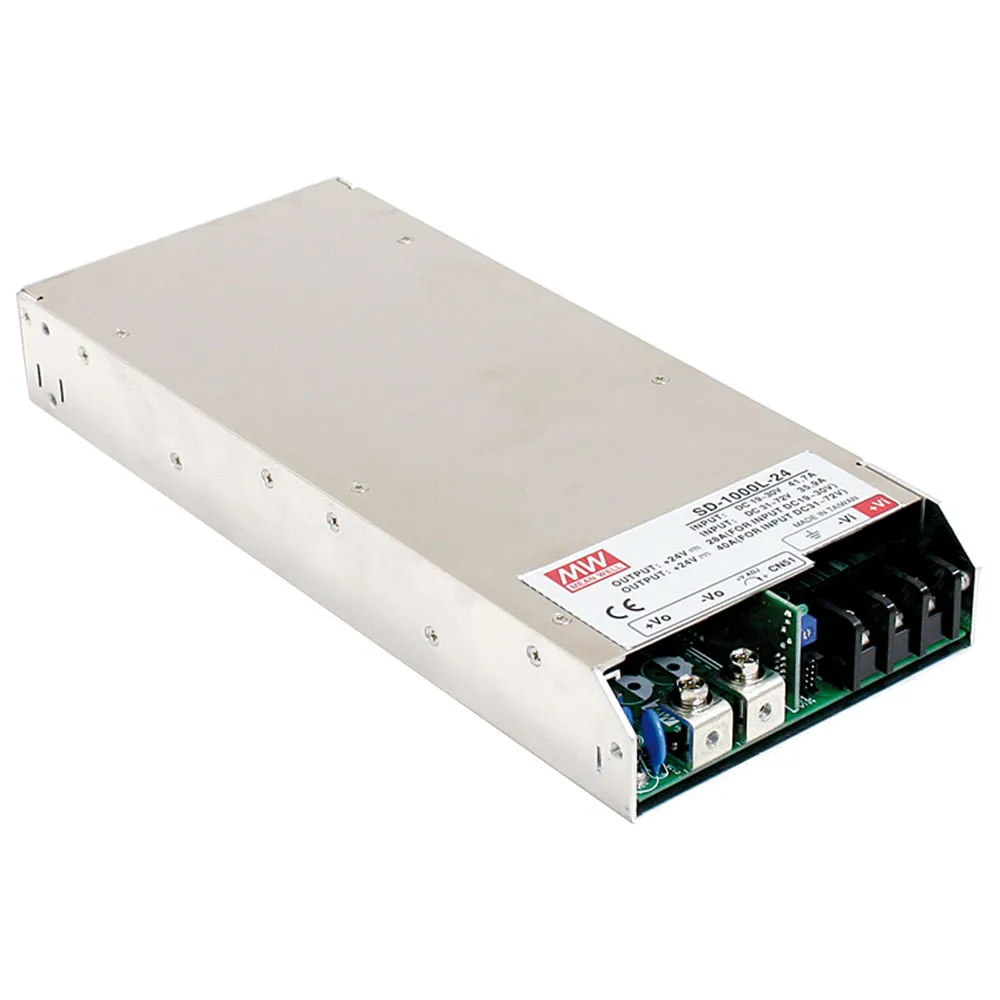

960W DC/DC CONVERTER
24 Volts @ 40 Amps
Specifications:
- Input Range: 19-72VDC
- Size (L x W x H) (inches): 11.6 x 5.0 x 1.6
- Number of pins: 5
- Ripple and Noise (mV p-p): 150
- Load Regulation: 0.5%
- Line Regulation: 0.5%
- Built-in on-off control and remote sense functions
- 3-year warranty
- Certifications: CB/CE
Product Identification
Type:Non-Inverting, Step Up, Step Down
Product Type:DC to DC Power Supply SMPS
Manufacturer Series:SD-1000
Compliance
Agency Approvals: CE, EAC, EN, CB, CB, CE, EN, EAC
Dimensions & Appearance
Mounting:Enclosed
Height:1.6 in.
Length:11.6 in.
Width:5 in.
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Packaging
Package:Enclosed
Input
Input Voltage Range:19 VDC to 72 VDC
Input Voltage:48 VDC
Maximum Input Current:23.5 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:40 A
Features
Switching Regulator:Yes
Pins:13
Efficiency:88%
Power Rating:960 W
