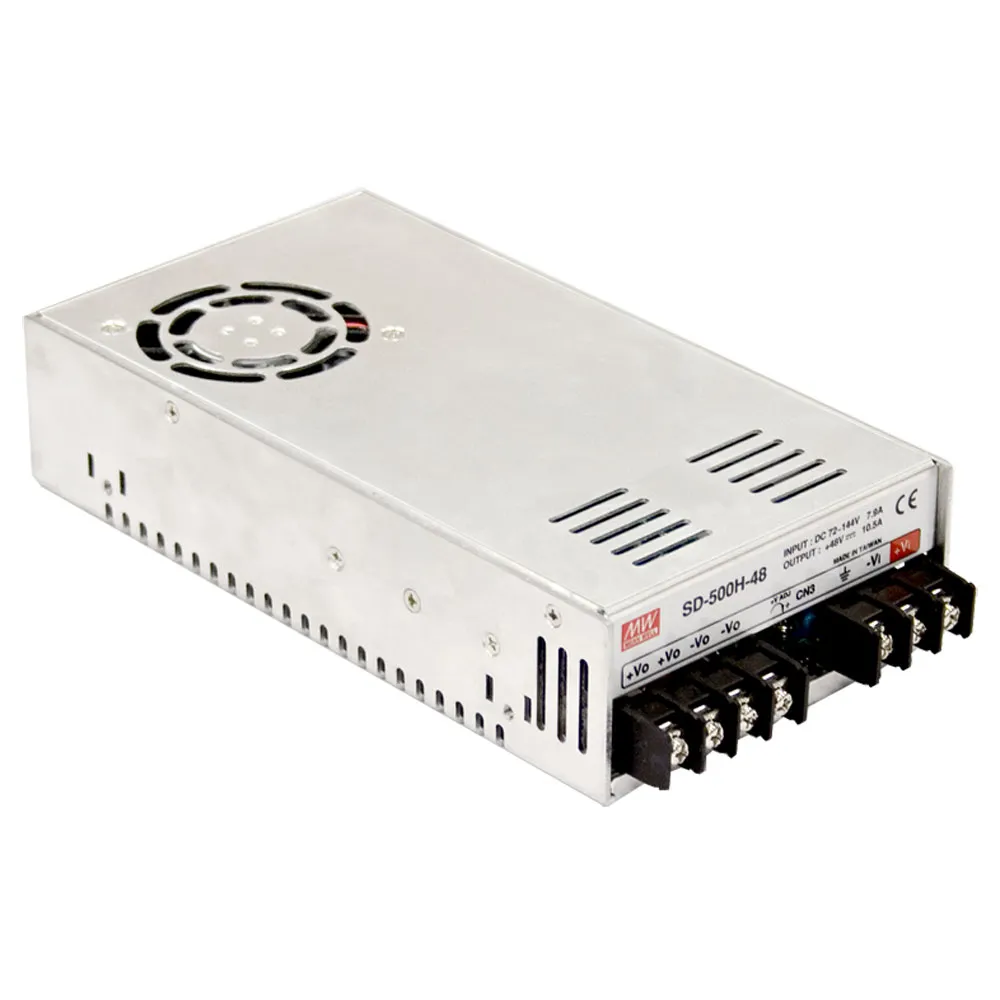

504W ENCLOSED DC/DC CONVERTER
24 Volts @ 21 Amps
Features:
- Input Voltage Range: 19V-72V
- 100% Full load burn-in test
- Protections: Short-circuit, Overload, Overvoltage, Overtemperature, Input polarity
- Number of terminal pins: 7
- Ripple & Noise: 150mVp-p
- Size: 8.5"L x 4.5"W x 2.0"H
- 3-year warranty
Product Identification
Type:Non-Inverting, Step Up, Step Down
Product Type:DC to DC Power Supply SMPS
Manufacturer Series:SD-500
Compliance
Agency Approvals: CB, CE, EAC, EN, TUV, TUV, CB, CE, EN, EAC
Dimensions & Appearance
Height:2 in.
Width:4.5 in.
Length:8.5 in.
Mounting:Enclosed
Operating conditions
Minimum Operating Temperature:-20°C
Maximum Operating Temperature:60°C
Packaging
Package:Enclosed
Input
Input Voltage:24 VDC
Input Voltage Range:19 VDC to 72 VDC
Maximum Input Current:24.2 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:21 A
Features
Switching Regulator:Yes
Pins:13
Efficiency:88%
Power Rating:504 W
