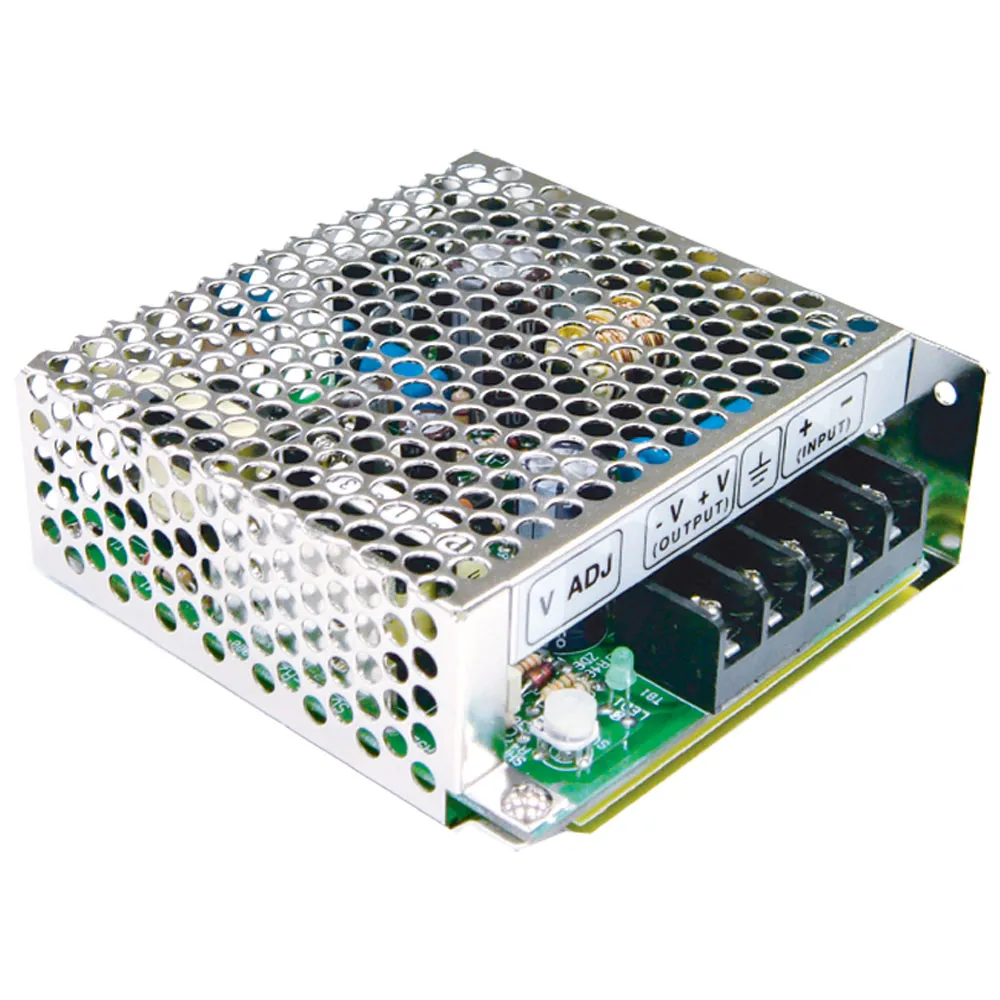

26.4W ENCLOSED DC/DC CONVERTER
24 Volts @ 1.1 Amps
Features:
- Input Voltage Range: 36V-72V
- Built-in EMI filter, low ripple noise
- 100% Full load burn-in test
- Protections: Short-circuit, Overload, Overvoltage
- Number of terminal pins: 5
- Ripple & Noise: 150mVp-p
- Size: 3.9"L x 3.8"W x 1.4"H
- 2-year warranty
Product Identification
Type:Step Down
Product Type:DC to DC Power Supply SMPS
Manufacturer Series:SD-25
Compliance
Agency Approvals: EAC, EN, CE, CE, EN, EAC
Dimensions & Appearance
Height:1.4 in.
Width:3.8 in.
Length:3.9 in.
Mounting:Enclosed
Operating conditions
Minimum Operating Temperature:-10°C
Maximum Operating Temperature:60°C
Packaging
Package:Enclosed
Input
Input Voltage:48 VDC
Input Voltage Range:36 VDC to 72 VDC
Maximum Input Current:0.8 A
Output
Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.10 A
Features
Pins:5
Switching Regulator:Yes
Efficiency:81%
Power Rating:26.4 W
