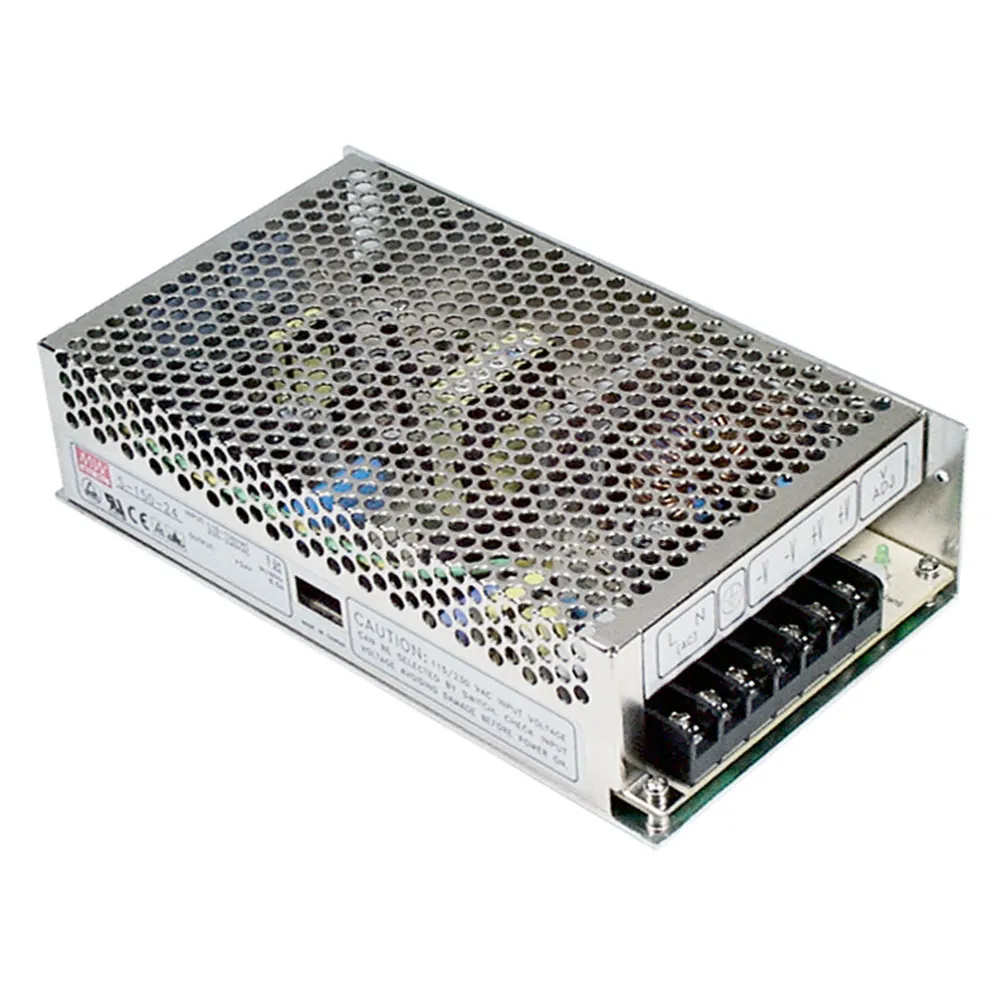

150W SINGLE OUTPUT DC-DC CONVERTER

12 Volts @ 12.5 Amps

Features:

  • Input Voltage range: 72~144VDC or 85~132VAC
  • 2:1 wide input range
  • Short-circuit, Overload and Over-voltage protection
  • 1500VDC I/O isolation
  • Built-in EMI filter, low ripple noise
  • 100% full load burn-in test
  • Efficiency: 79% typical
  • Size: 7.83"L x 4.33"W x 1.97"H
  • Weight: 1.9 lbs.
  • 2-year warranty

    • Product Identification

    Type:Step Down
    Product Type:DC to DC Power Supply SMPS
    Manufacturer Series:SD-150

    Compliance

    Agency Approvals: CB, CE, EAC, EN, TUV, TUV, CB, CE, EN, EAC

    Dimensions & Appearance

    Mounting:Enclosed
    Height:2 in.
    Width:4.3 in.
    Length:7.8 in.

    Operating conditions

    Minimum Operating Temperature:-10°C
    Maximum Operating Temperature:60°C

    Packaging

    Package:Enclosed

    Input

    Input Voltage Range:72 VDC to 144 VDC
    Input Voltage:96 VDC
    Maximum Input Current:2.1 A

    Output

    Number of Outputs:1
    Output Voltage:12 VDC
    Output Connector Type:Screw Terminal Block
    Additional Output Voltages (VDC):N/A
    Output Current:12.50 A

    Features

    Switching Regulator:Yes
    Pins:7
    Efficiency:79%
    Power Rating:150 W
    ,
