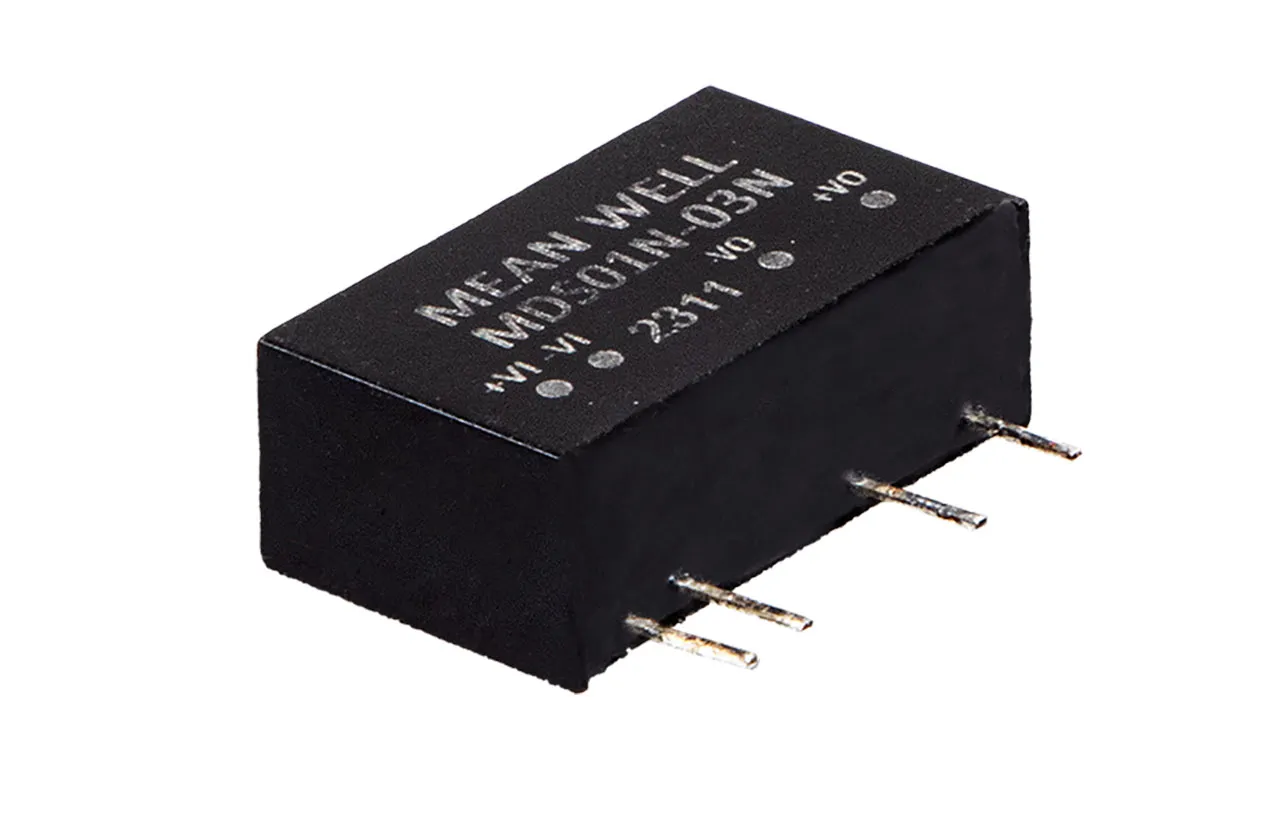

DC-DC Medical Grade Unregulated Converter 1W 12V 9-84mA 5Vin SIP-7
Features
- SIP-7 package with international standard pinout
- Operating temperature range: -40C to 95C
- Comply with IEC/UL62368-1 and LVD IEC60601-1
- Medical safety approved (1xMOPP/2xMOOP) according to IEC60601-1
- Low patient leakage current <2µA
- Protections: Short circuit (continuous)
- 6KV DC high I/O isolation (reinforced insulation)
- Low cost
- 3-year warranty
Overview
The MDS01-N and MDD01-N series are 1W isolated and unregulated module type medical grade DC-DC converter with SIP7 package. It features international standard pins, a high efficiency up to 84%, wide working temperature range of -40C to +95C, 6KV DC I/P-O/P high isolation voltage, short circuit protection, and more. The models account for different input voltage 5V/12V/24V ±10%, and various output voltage, 3.3V/5V/12V/15V for single output and ±5V/±12V/±15V for dual outputs, which are suitable for medical systems, ultra-low leakage current or industrial control, telecommunication field, distributed power architecture, and so on.
Applications
- Medical devices
- Medical oxygen monitor
- CT scanning
- Medical carts
- Oral care equipment
- Telecom / datacom system
- Wireless network
- Industrial control facility
Product Identification
Type:1xMOPP/2xMOOP
Product Type:Medical Grade Unregulated Converter SMPS
Manufacturer Series:MDDS01-N
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, EAC, UKCA
Dimensions & Appearance
Color:Black
Height:0.452 in.
Width:0.279 in.
Length:0.775 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:95°C
Input
Input Frequency:N/A
Input Voltage Range:4.5 VDC to 5.5 VDC
Input Voltage:5 VDC
Maximum Input Current:0.24 A
Output
Number of Outputs:1
Output Connector Diameters:N/A
Output Current:0.084 A
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Features
Pins:4
Isolation Voltage:6000V
AC Power Cord:N/A
Power Rating:1 W
Efficiency:82%
