DC-DC Isolated Unregulated Converter 1W SMD Package +/-5V +/-100mA Output 12V Input
Features
- SMD package with industry standard pinout
- Operating temperature range -40 to 90°C
- Complies with BS EN/EN55032 radiated Class B without additional components
- High efficiency up to 83%
- Protection: Short circuit
- 3KV DC I/O isolation
- Low cost
- Optional reel packaging
- 3 year warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Overview

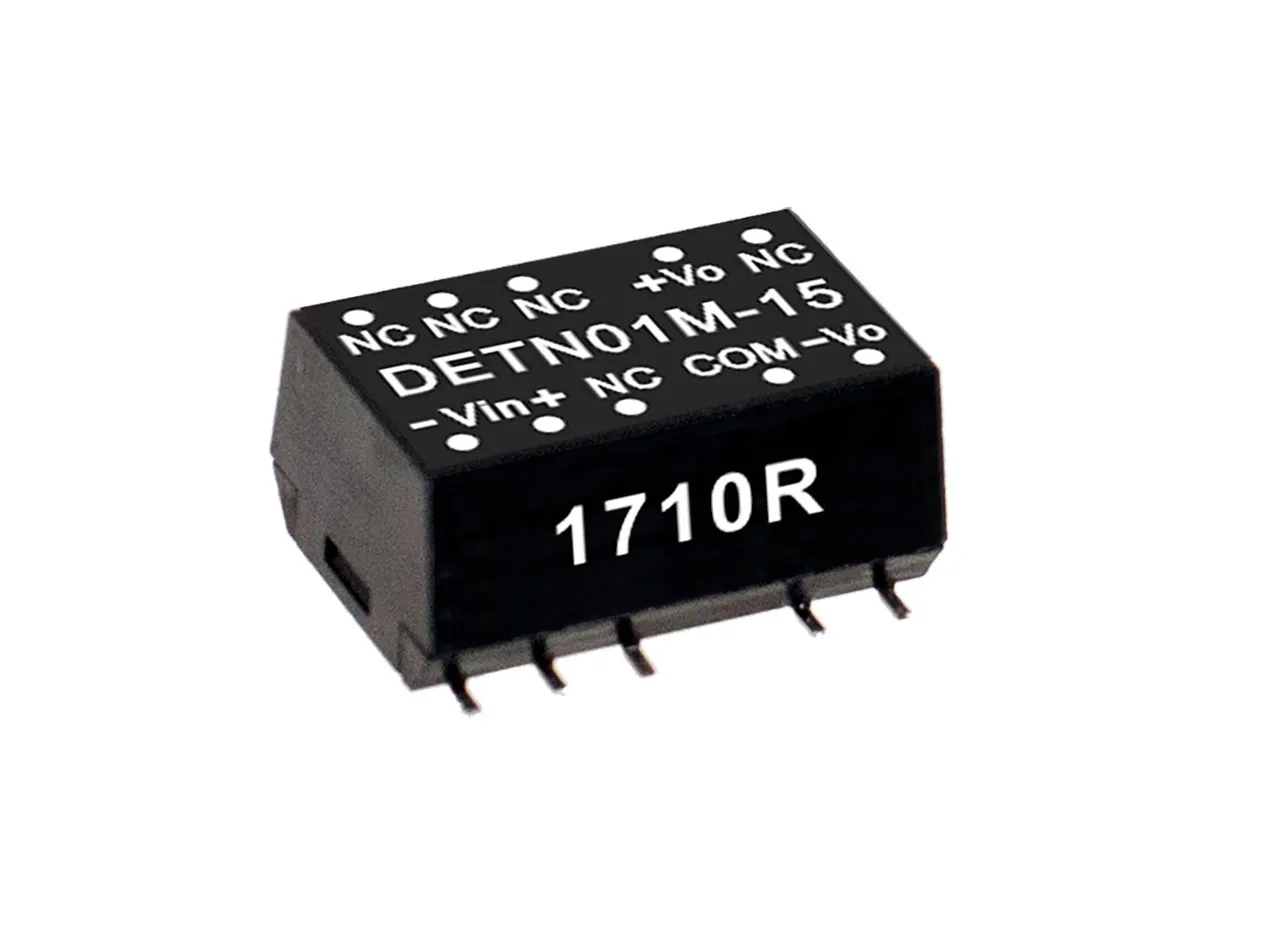

DETN01 series is a 1W isolated and unregulated module type DC-DC converter in a SMD package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40 to 90C, 3KV I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class B without additional components, short circuit protection, and more. The models account for different input voltage 5V, 12V, 24V±10%, and various output voltage, ±5V, ±12V, ±15V for dual output which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and more.
Product Identification
Type:Isolated
Product Type:DC-DC Converter SMPS
Manufacturer Series:DETN01
Compliance
Agency Approvals:UL, CUL, CB, EAC, CE, UKCA
Dimensions & Appearance
Color:Black
Height:0.28 in.
Length:0.6 in.
Width:0.43 In.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Input
Maximum Input Current:0.013 A
Input Frequency:N/A
Input Voltage:12 VDC
Input Voltage Range:10.8 VDC to 13.2 VDC
Output
Number of Outputs:2
Additional Output Voltages (VDC):-5 VDC
Output Connector Diameters:N/A
Output Current:0.10 A
Output Voltage:5 VDC
Output Connector Type:SMD
Features
Pins:10
AC Power Cord:N/A
Power Rating:1 W
Efficiency:82%
