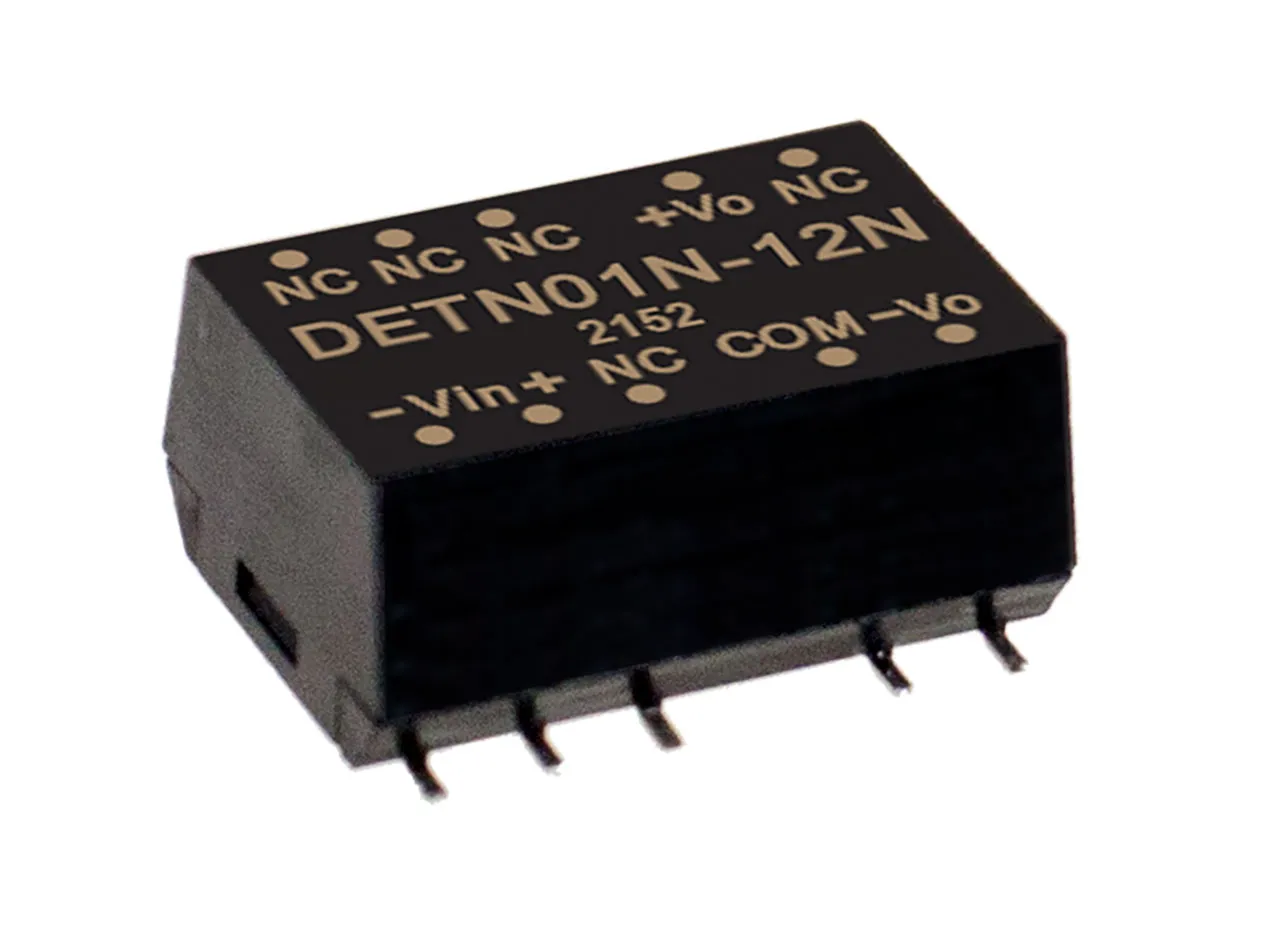

DC-DC Isolated Unregulated Converter 1W SMD Package +/-12V +/-42mA Output 12V Input NEW Series
Features
- NEW series
- SMD package with industry standard pinout
- Operating temperature range -40 to 100°C
- High efficiency up to 83%
- 3KV DC I/O isolation
- Low cost
- ±3.3Vo models are available (Optional, call us to order P/N: DETN01L-03N, DETN01M-03N, DETN01M-03N)
- 3 year warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Overview
DETN01-N series is a 1W isolated and unregulated module type DC-DC converter in a SMD package. It features international standard pins, a high efficiency up to 83%, wide working temperature range -40 to 100C, 3KV I/P-O/P isolation voltage, compliance to BS EN/EN55032. The models account for different input voltage 5V, 12V, 24V±10%, and various output voltage, ±5V, ±12V, ±15V for dual output which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and more.
Product Identification
Type:Isolated
Product Type:DC-DC Converter SMPS
Manufacturer Series:DETN01
Compliance
Agency Approvals:UL, CUL, CB, EAC, CE, UKCA
Dimensions & Appearance
Color:Black
Height:0.28 in.
Length:0.6 in.
Width:0.43 In.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Input
Maximum Input Current:0.012 A
Input Frequency:N/A
Input Voltage:12 VDC
Input Voltage Range:10.8 VDC to 13.2 VDC
Output
Number of Outputs:2
Output Current:0.042 A
Output Connector Diameters:N/A
Additional Output Voltages (VDC):-12 VDC
Output Voltage:12 VDC
Output Connector Type:SMD
Features
Pins:10
AC Power Cord:N/A
Power Rating:1 W
Efficiency:82%
