DC-DC Isolated Regulated Single Output Converter 30W 12V 2500mA 9-36Vin EN55032 Compliant
Features
- DIP 2" x 1" package with industry standard pinout
- 4:1 ultra-wide input range
- Operating temperature range -10 to +90C (-40 to +60C to derating)
- No minimum load required
- Compliant to BS EN/EN55032 radiated Class A without additional components
- High efficiency up to 89%
- Protections: Short circuit (continuous), overload, over voltage
- 3KV DC I/O isolation
- Remote ON/OFF control and Trimming output (±10%)
- 3-year warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Overview

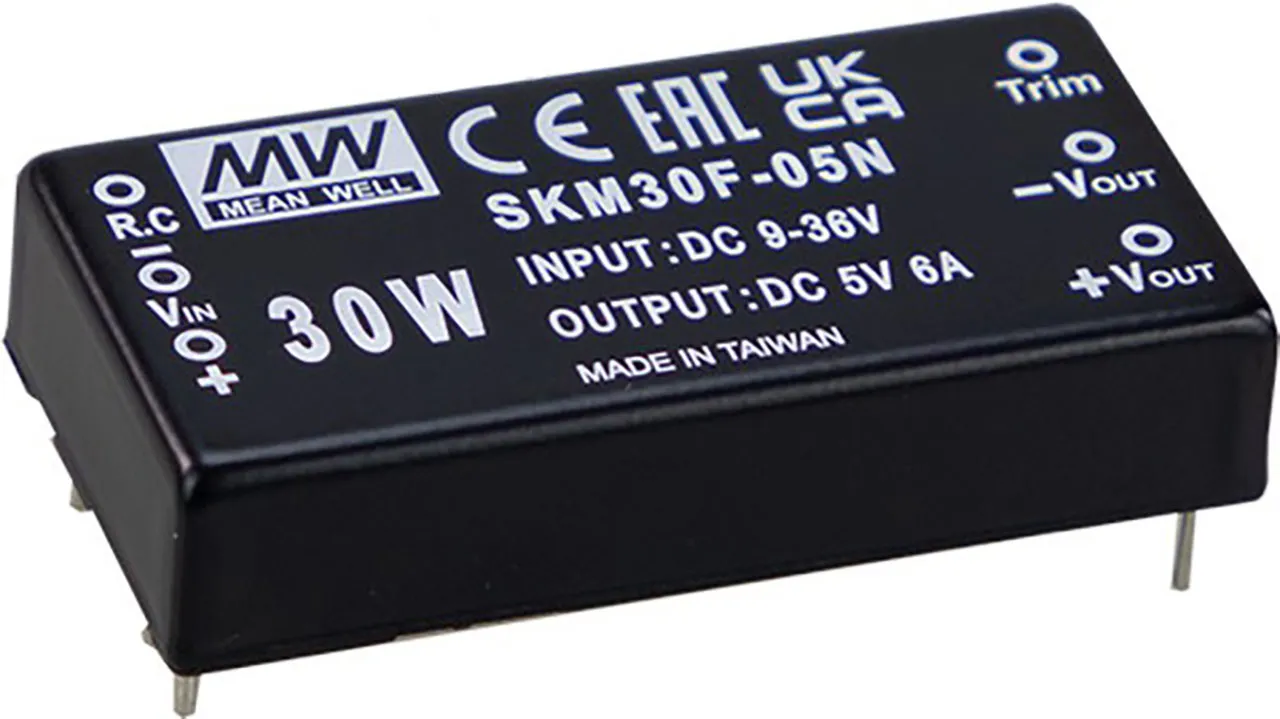

SKM30-N and DKM30-N series are 30W isolated and regulated module type DC-DC converter in a DIP 2"x1" package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40 to 90C, 3KV I/P-O/P isolation voltage, compliance to BS EN/EN55032 radiated Class A without additional components, continuous-mode short circuit, overload and over voltage protection, remote ON/OFF and trimmable output voltage and more. The models account for different input voltage 9V to 36V and 18V to 75V 4:1 ultrawide input range, and various output voltage, 5V, 12V, 15V for single output and ±12V, ±15V for dual output which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and more.
