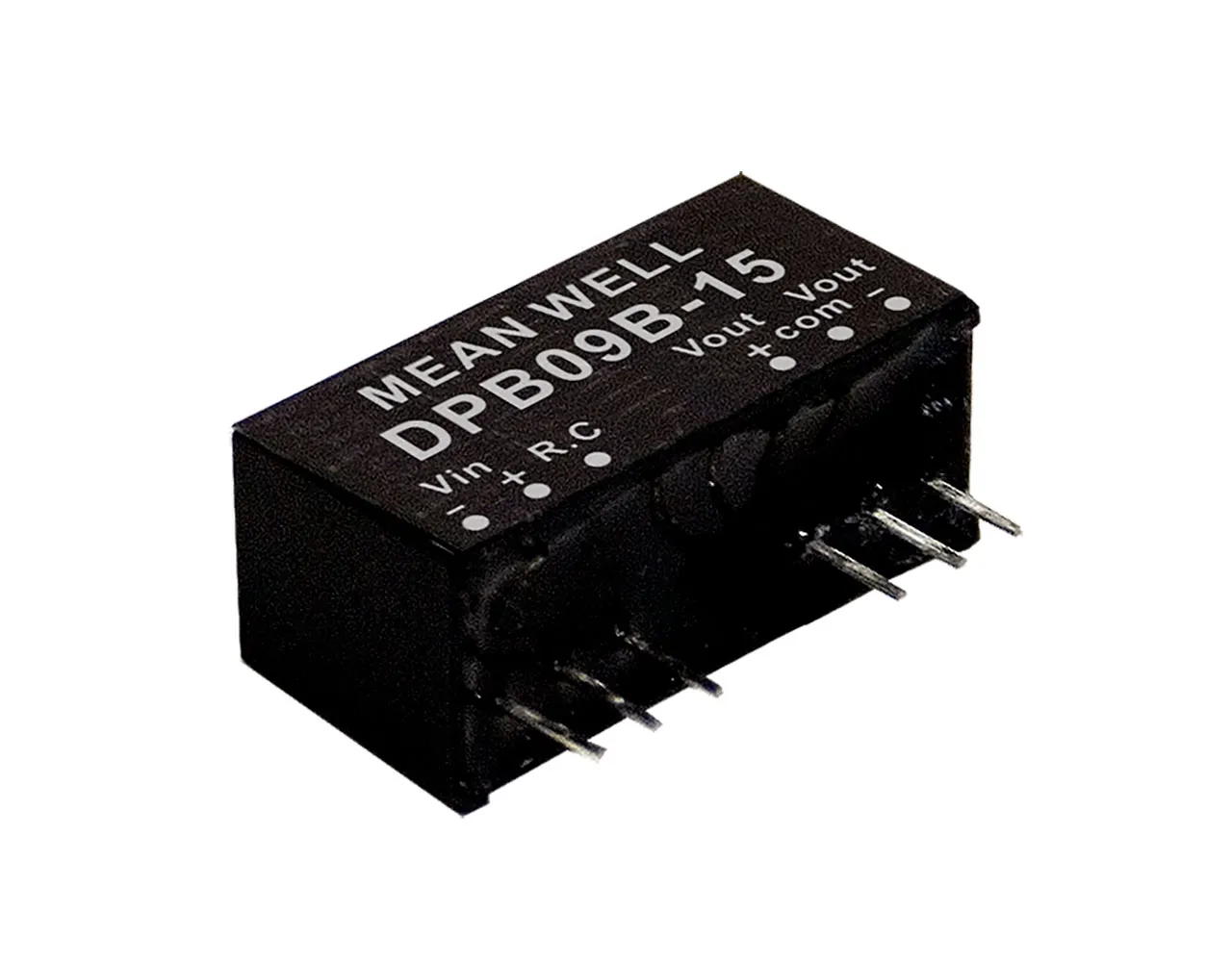

DC-DC Isolated Regulated Dual Output Converter 9W +/-15V +/-300mA 9-18Vin SIP-8
Features
- SIP8 package with industry standard pinout
- 2:1 wide input range
- Operating temperature range -40 to +90°C
- No minimum load required
- High efficiency up to 89%
- Protections: Short circuit (continuous), overload, input under voltage
- 1500V DC I/O isolation
- Remote ON/OFF
- 3 year warranty
Applications
- Telecom/datacom system
- Wireless network
- Industrial control facility
- Instrument
- Analyzer
- Detector
- Data switch
Overview
SPB09 and DPB09 series are 9W isolated and regulated module type DC-DC converter in a SIP8 package. It features international standard pins, a high efficiency up to 89%, wide working temperature range -40 to +90C, 1.5KV I/P-O/P isolation voltage, continuous-mode short circuit protection, and more. The models account for different input voltage 9V to 18V and 18V to 36V and 36V to 75V 2:1 wide input range, and various output voltage, 3.3V/5V/12V/15V/24V for single output and ±5V, ±12V, ±15V for dual output which are suitable for all kinds of systems such as industrial control, telecommunication field, distributed power architecture, and more.
Product Identification
Type:Isolated
Product Type:DC-DC Regulated Dual Output SMPS
Manufacturer Series:DPB09
Compliance
Agency Approvals:CE, EAC, UKCA
Dimensions & Appearance
Color:Black
Height:0.44 in.
Width:0.38 in.
Length:0.94 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:90°C
Input
Input Frequency:N/A
Input Voltage Range:9 VDC to 18 VDC
Input Voltage:12 VDC
Maximum Input Current:0.85 A
Output
Number of Outputs:2
Output Connector Diameters:N/A
Additional Output Voltages (VDC):-15 VDC
Output Current:0.30 A
Output Connector Type:PC Pins
Output Voltage:15 VDC
Features
Pins:6
AC Power Cord:N/A
Efficiency:88%
Power Rating:9 W
