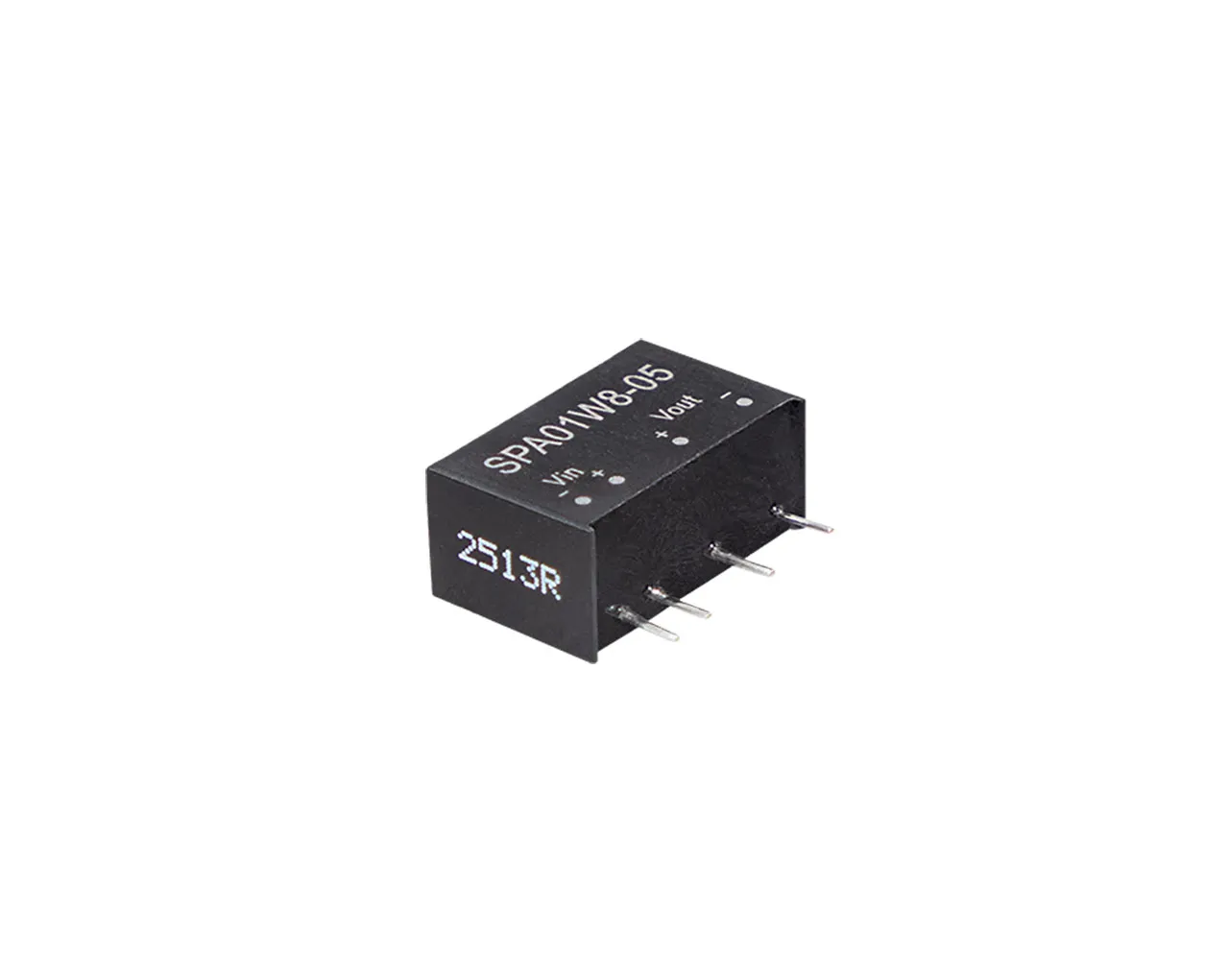

DC-DC CONV,REG,15V@67mA,9-75Vin,1.5KVDC ISOL,SIP6
Product Identification
Type:Isolated
Additional Feature:Continuous Short Circuit Protection, Overload, UVLO
Manufacturer Series:SPA01W8
Product Type:Ultra-Wide Input DC-DC Regulated Converter SMPS
Compliance
Agency Approvals:CE, EN, EAC, UKCA
Dimensions & Appearance
Color:Black
Height:0.44 in.
Width:0.30 in.
Length:0.69 in.
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:95°C
Input
Input Frequency:N/A
Maximum Input Current:0.053 A
Input Voltage Range:9 VDC to 75 VDC
Input Voltage:12 VDC, 24 VDC, 36 VDC, 48 VDC, 72 VDC
Output
Number of Outputs:1
Output Current:0.067 A
Output Connector Type:PC Pins
Output Voltage:15 VDC
Features
Pins:4
Isolation Voltage:1500VDC
AC Power Cord:N/A
Power Rating:1 W
Efficiency:80%
