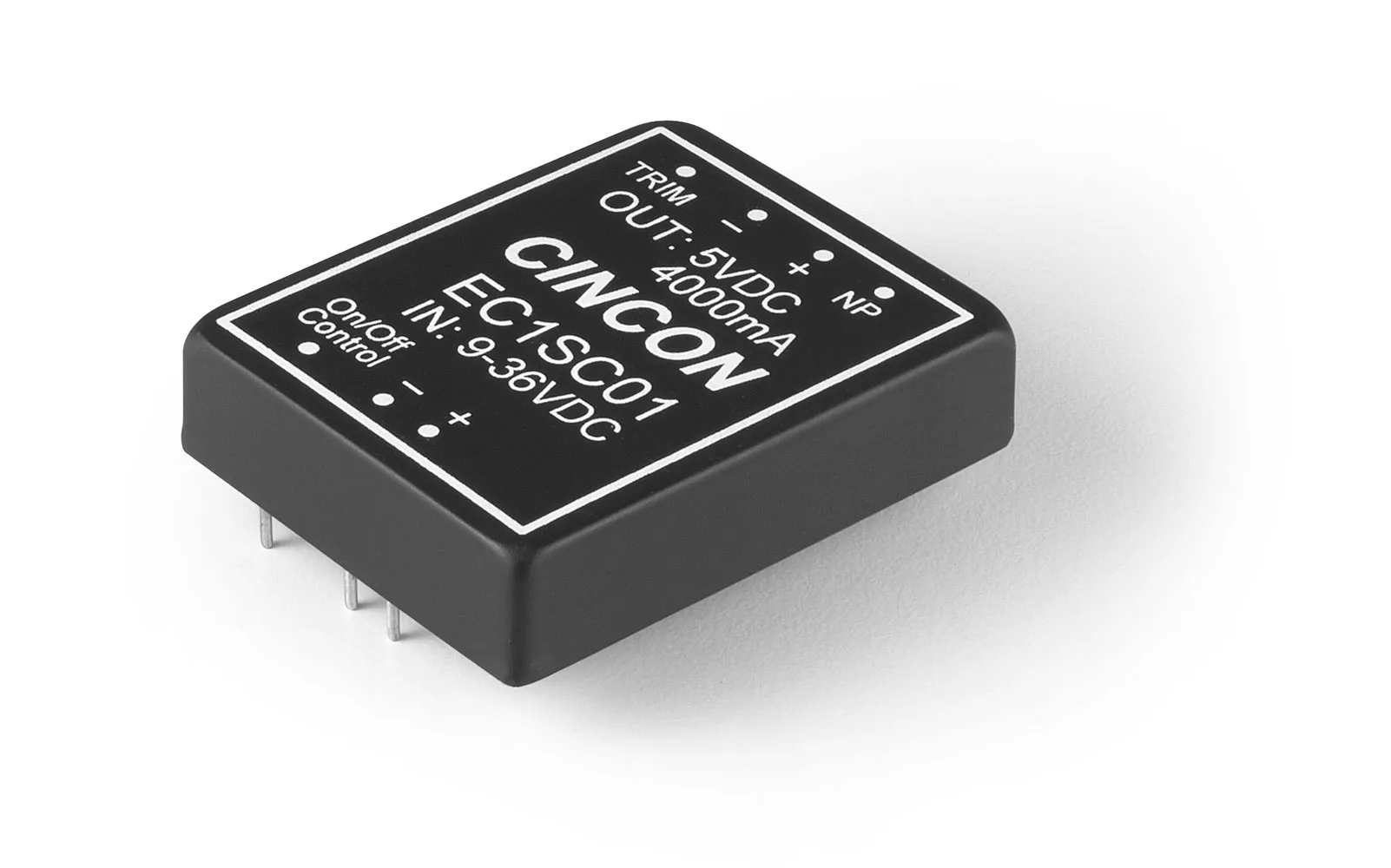

DC-DC Converter Isolated 5VDC 4A 4:1 Input 9-36VDCin 6-Side Metal Case Board Mount

Features

  • 20W Isolated Output
  • Pi-type Input Filter
  • 4:1 Input Range
  • Continuous Short Circuit Protection
  • 2" x 1.6" Six-Sided Shield Metal Case
  • Meets EN55022 Class A, Conducted
  • Remote ON/OFF Control
  • CE Mark Meets 2004/108/EC
  • UL60950-1 Approval

Specifications

  • Output Voltage: 5 VDC
  • Output Current: 0 mA to 4 A
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 15 mA (no load); 1029 mA (full load)
  • Efficiency: 81%
  • Capacitive Load: 4000 µF (max.)
  • Size: 2.00"W x 1.60"D x 0.45"H

Product Identification

Manufacturer Series:EC1
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.45 in.
Width:1.60 in.
Length:2.00 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:100°C

Packaging

Package:6-Sided Shield Metal Case

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:1.029 A

Output

Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:4 A

Features

Pins:8
Efficiency:81%
Power Rating:20 W
,
