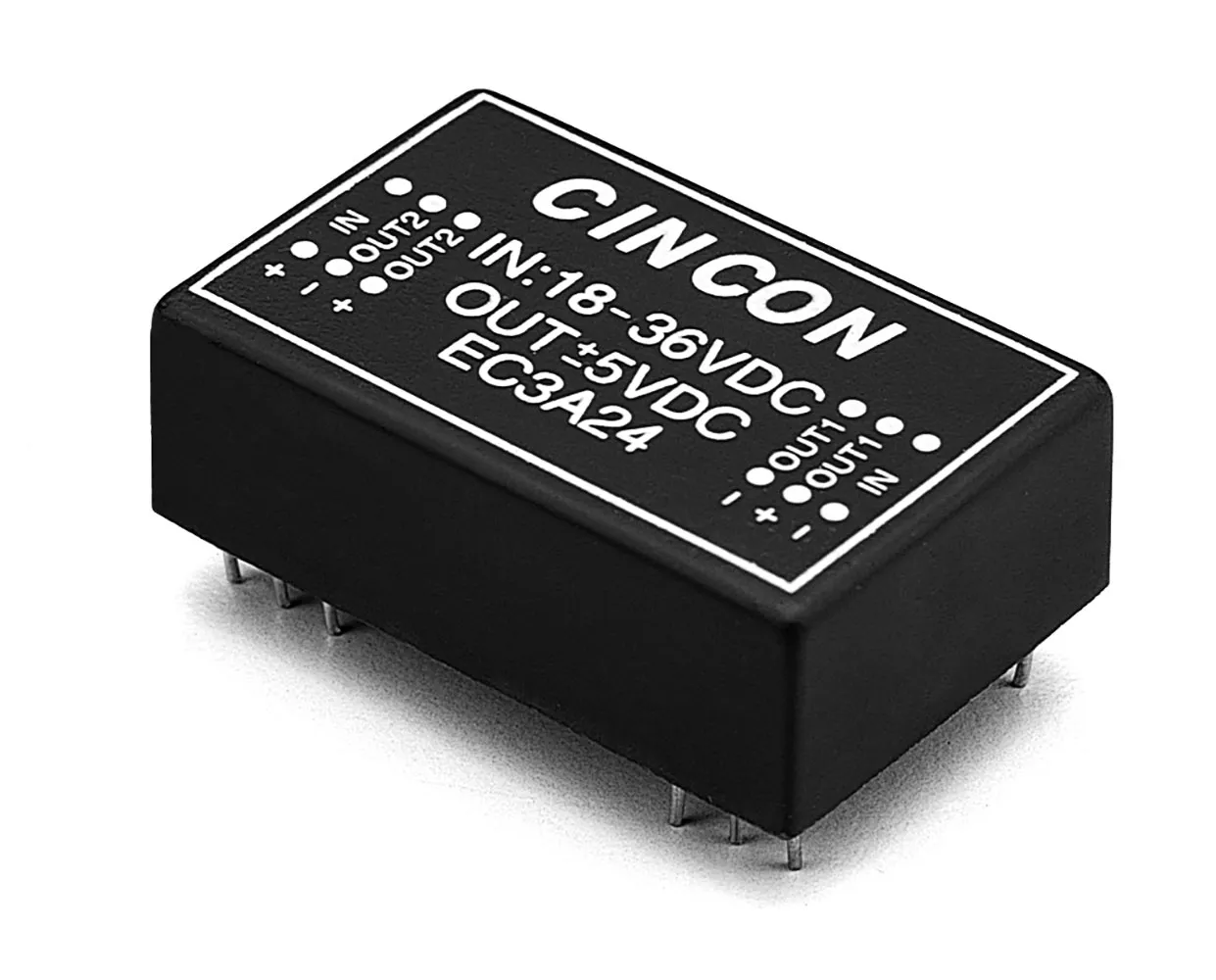

DC-DC Converter Isolated +/-5VDC +/-300mA 2:1 Input 18-36VDCin DIP-24

Features

  • 3W Isolated Output
  • DIP-24 Package
  • 2:1 Input Range
  • Regulated Outputs
  • Pi-type Input Filter
  • Continuous Short Circuit Protection

Specifications

  • Output Voltage: ±5 VDC
  • Output Current: 0 mA to ±300 mA
  • Input Voltage: 18 to 36 VDC (24 VDC nominal)
  • Input Current: 7.5 mA (no load); 162 mA (full load)
  • Efficiency: 77%
  • Capacitive Load: 1000 µF (max.)
  • Size: 1.25"W x 0.80"D x 0.40"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:EC3A

Compliance

Agency Approvals:CE

Dimensions & Appearance

Mounting:PCB
Height:0.40 in.
Width:0.80 in.
Length:1.25 in.

Operating conditions

Minimum Operating Temperature:0°C
Maximum Operating Temperature:100°C

Packaging

Package:DIP-24

Input

Maximum Input Current:0.162 A
Input Voltage:24 VDC
Input Voltage Range:18 VDC to 36 VDC

Output

Number of Outputs:2
Additional Output Voltages (VDC):-5
Output Connector Type:DIP-24 (0.6"W)
Output Voltage:5 VDC
Output Current:0.30 A

Features

Pins:10
Efficiency:77%
Power Rating:3 W
,
