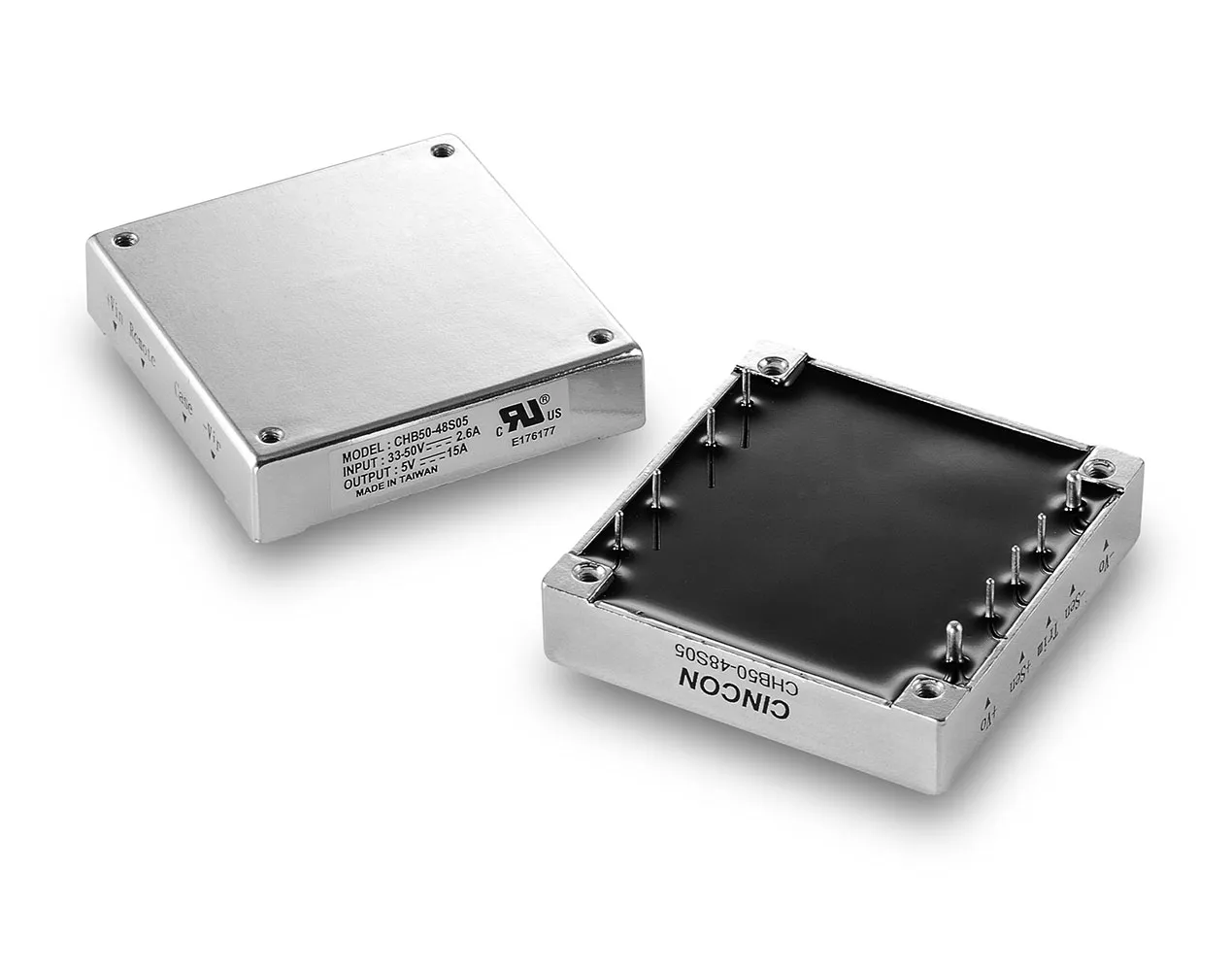

DC-DC Converter Isolated 5VDC 10A 2:1 Input 18-36VDCin Half-Brick Board Mount
Features
- 50W Isolated Output
- 300/400 KHz Switching Frequency
- 2:1 Input Range
- Regulated Outputs
- Continuous Short Circuit Protection
- Half-Brick Size Meet Industry Standard
- Five-sided Metal Case
- CE, UL60950-1 Approval
- Safety Meets IEC/UL60950-1
Specifications
- Output Voltage: 5 VDC
- Output Current: 0 mA to 10 A
- Input Voltage: 18 to 36 VDC (24 VDC nominal)
- Input Current: 50 mA (no load); 2.45 A (full load)
- Efficiency: 85%
- Capacitive Load: 10,000 µF (max.)
- Size: 2.28"W x 2.4"D x 0.5"H
Product Identification
Product Type:DC-DC Converter SMPS
Manufacturer Series:CHB50
Compliance
Agency Approvals:UL, CUL, CE, EN
Dimensions & Appearance
Height:0.5 in.
Width:2.4 in.
Length:2.28 in.
Mounting:PCB
Operating conditions
Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C
Packaging
Package:Half Brick
Input
Input Voltage:24 VDC
Input Voltage Range:18 VDC to 36 VDC
Maximum Input Current:2.45 A
Output
Number of Outputs:1
Output Voltage:5 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:10 A
Features
Pins:9
Efficiency:85%
Power Rating:50 W
