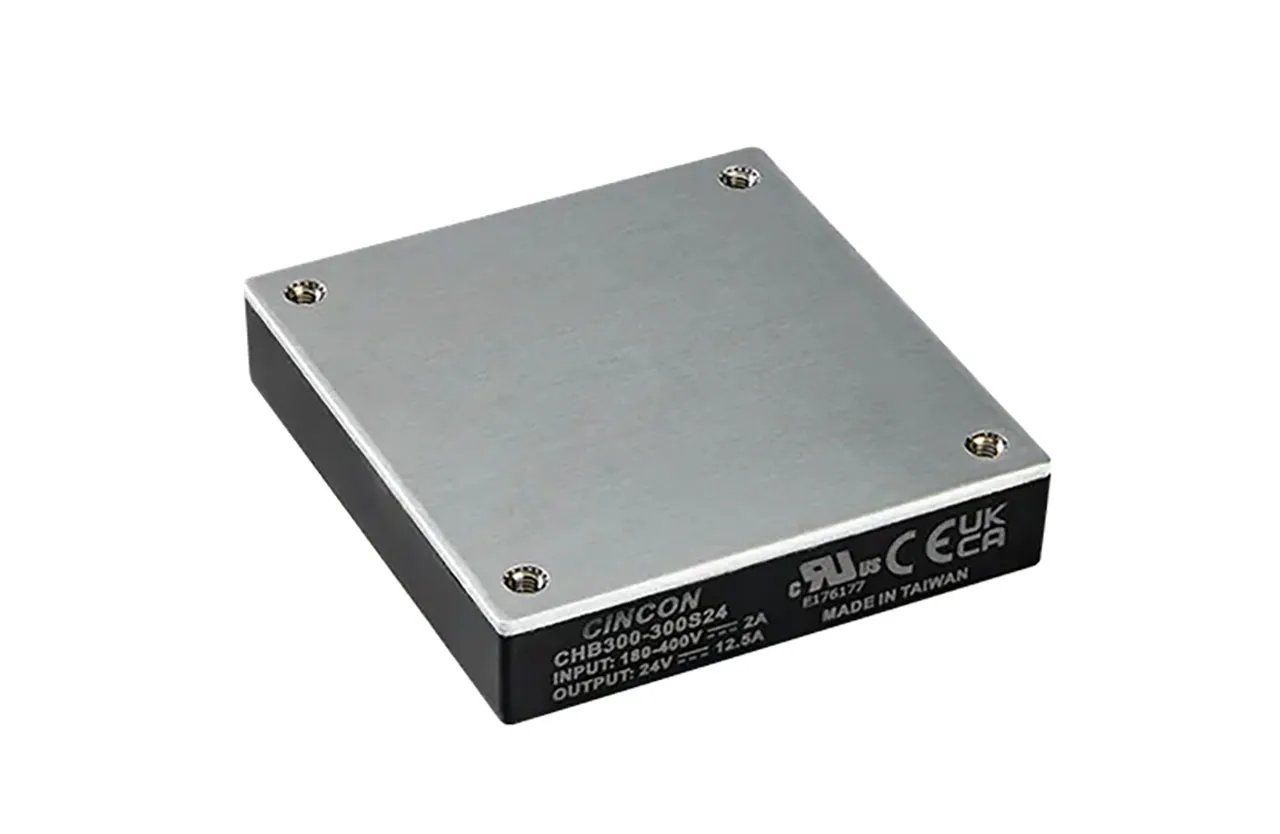

DC-DC Converter Isolated 48VDC 6.25A 2:1 Input 180-425VDCin Half-Brick Board Mount

Features

  • 300W Isolated Output
  • Fixed Switching Frequency
  • 2:1 Input Range
  • Remote ON/OFF
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Half-Brick Size Meet Industry Standard
  • Low No-Load Power Consumption
  • Continuous Short Circuit Protection
  • CE, UL60950-1 2ndApproval, CB Test Certificate IEC60950-1

Overview

Technical Specifications

  • Output Voltage: 48 VDC
  • Output Current: 0 mA to 6.25 A
  • Input Voltage: 180 to 425 VDC (300 VDC nominal)
  • Input Current: 10 mA (no load); 1.11 A (full load)
  • Efficiency: 90%
  • Capacitive Load: 6000 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CHB300

Compliance

Agency Approvals:UL, CUL, CB, CE

Dimensions & Appearance

Color:Black
Mounting:PCB
Height:0.50 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage Range:180 VDC to 425 VDC
Input Voltage:300 VDC
Maximum Input Current:1.11 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:6.25 A

Features

Pins:9
AC Power Cord:N/A
Efficiency:90%
Power Rating:300 W
,
