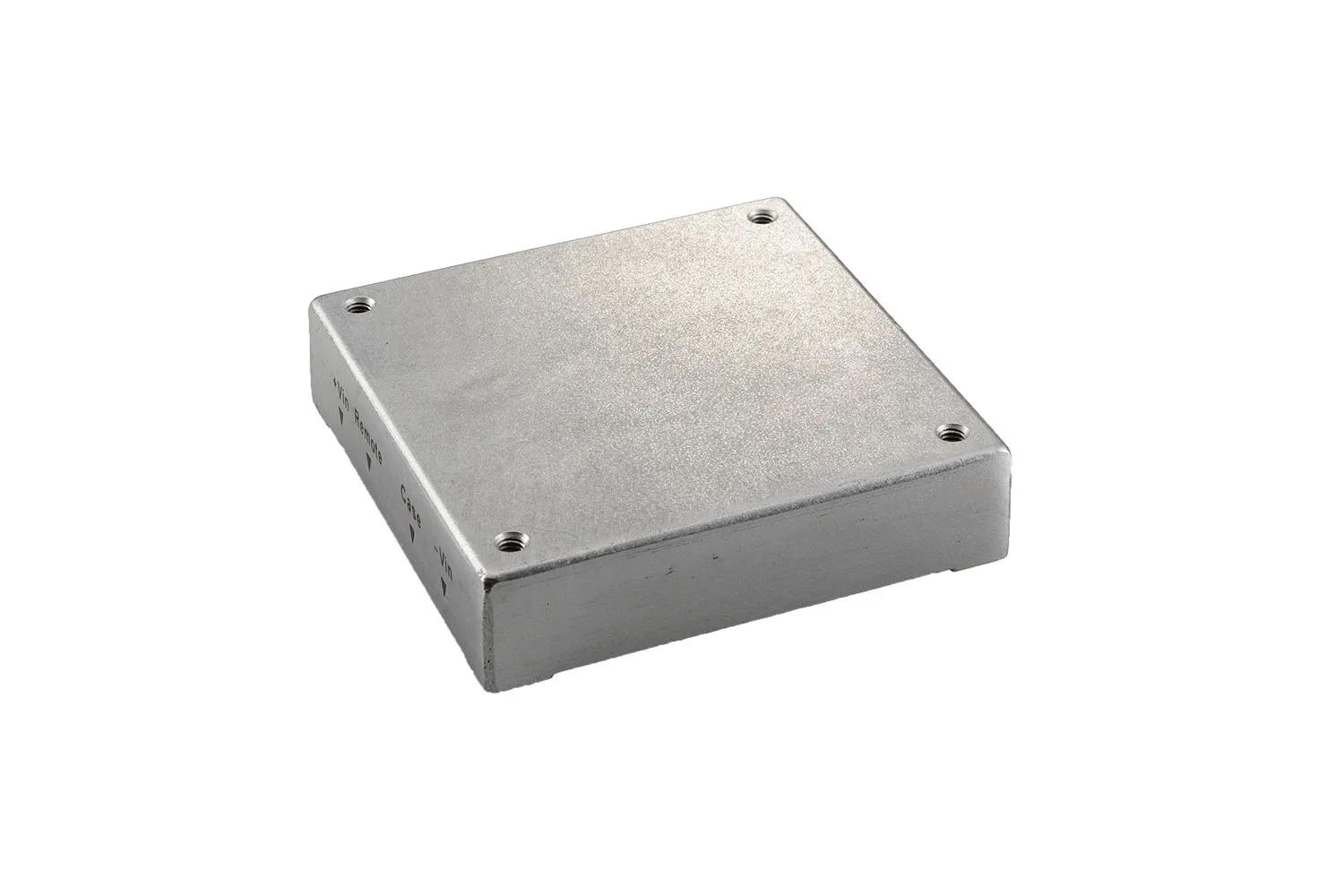

DC-DC Converter Isolated 48VDC 2.08A 4:1 Input 9-36VDCin Half-Brick Board Mount

Features

  • 100W Isolated Output
  • 250 KHz Switching Frequency
  • 4:1 Input Range
  • Regulated Outputs
  • Continuous Short Circuit Protection
  • Five-Sided Metal Case
  • Half-Brick Size Meet Industry Standard
  • Without Tantalum Capacitor Inside
  • CE, UL60950-1 Approval

Specifications

  • Output Voltage: 48 VDC
  • Output Current: 0 mA to 4.17 A
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 35 mA (no load); 5.042 A (full load)
  • Efficiency: 82.5%
  • Capacitive Load: 470 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Manufacturer Series:CHB100W
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:5.042 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:2.08 A

Features

Pins:9
Efficiency:82.5%
Power Rating:99.84 W
,
