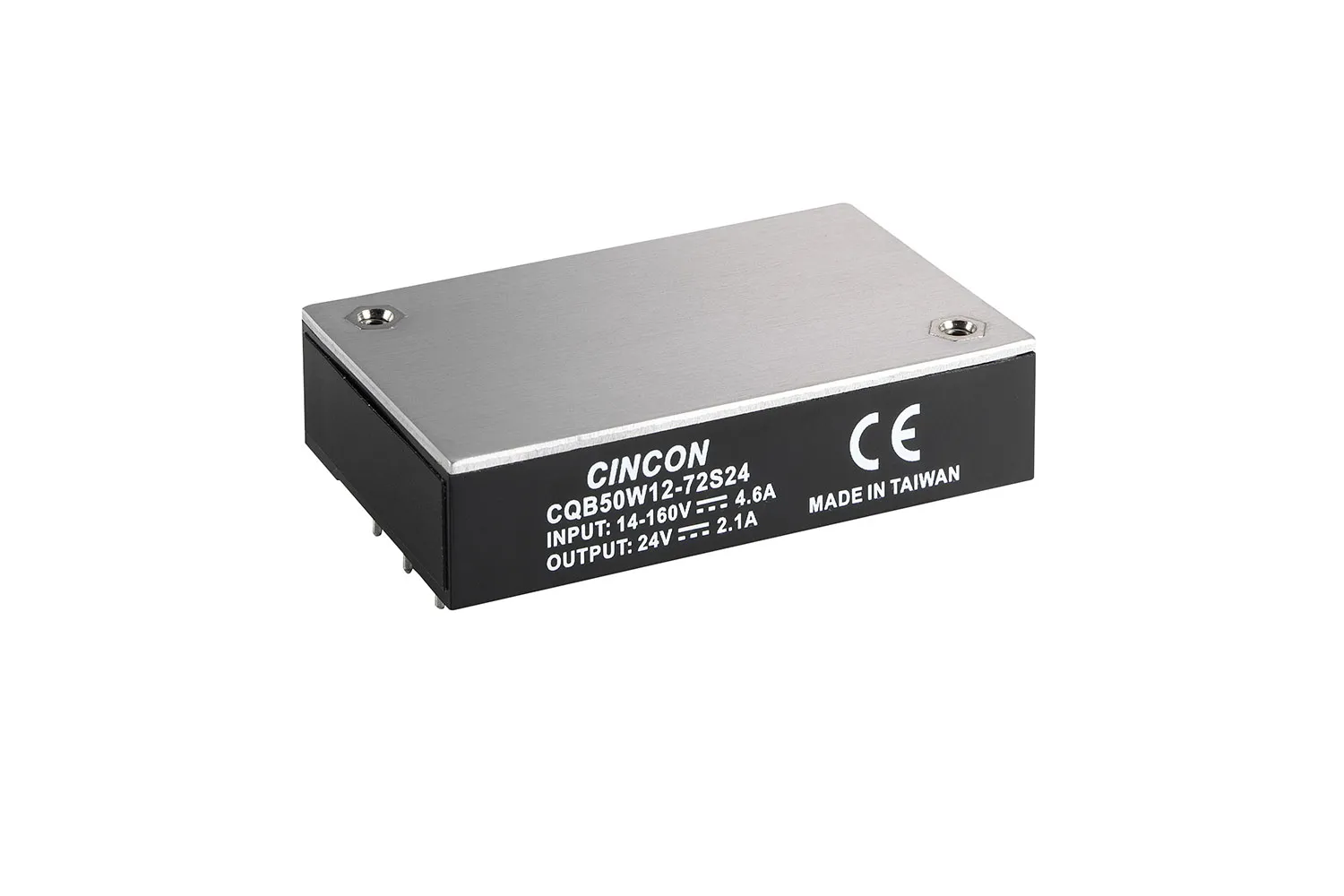

DC-DC Converter Isolated 48VDC 1.05A 12:1 Input 14-160VDCin Quarter-Brick Board Mount

Features

  • 50W Isolated Output
  • 12:1 Input Range
  • Fixed Switching Frequency
  • Regulated Outputs
  • Low No Load Power Consumption
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Continuous Short Circuit Protection
  • 3000 VDC I/O Isolation
  • Operating Case Temp: -40 to +100°C
  • Remote ON/OFF
  • Quarter-Brick Package Meets Industrial Standard
  • UL60950-1 2nd Approval
  • CB Test Certificate IEC60950-1
  • Meets EN50155 with External Circuits
  • Shock & Vibration Meets EN50155 (EN61373) Compliant
  • Fire & Smoke Meets EN45545-2 Compliant
  • 5000m Operating Altitude

Specifications

  • Output Voltage: 48 VDC
  • Output Current: 0 mA to 1.05 A
  • Input Voltage: 14 to 160 VDC (72 VDC nominal)
  • Input Current: 5 mA (no load); 810 mA (full load)
  • Efficiency: 85%
  • Capacitive Load: 680 µF (max.)
  • Size: 2.28"W x 1.45"D x 0.5"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CQB50W

Compliance

Agency Approvals:UL, CUL, CB, CE, EN

Dimensions & Appearance

Height:0.5 in.
Width:1.45 in.
Length:2.28 in.
Mounting:PCB

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Packaging

Package:Quarter Brick

Input

Input Voltage Range:14 VDC to 160 VDC
Input Voltage:72 VDC
Maximum Input Current:0.81 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:1.05 A

Features

Pins:8
Efficiency:88%
Power Rating:50.4 W
,
