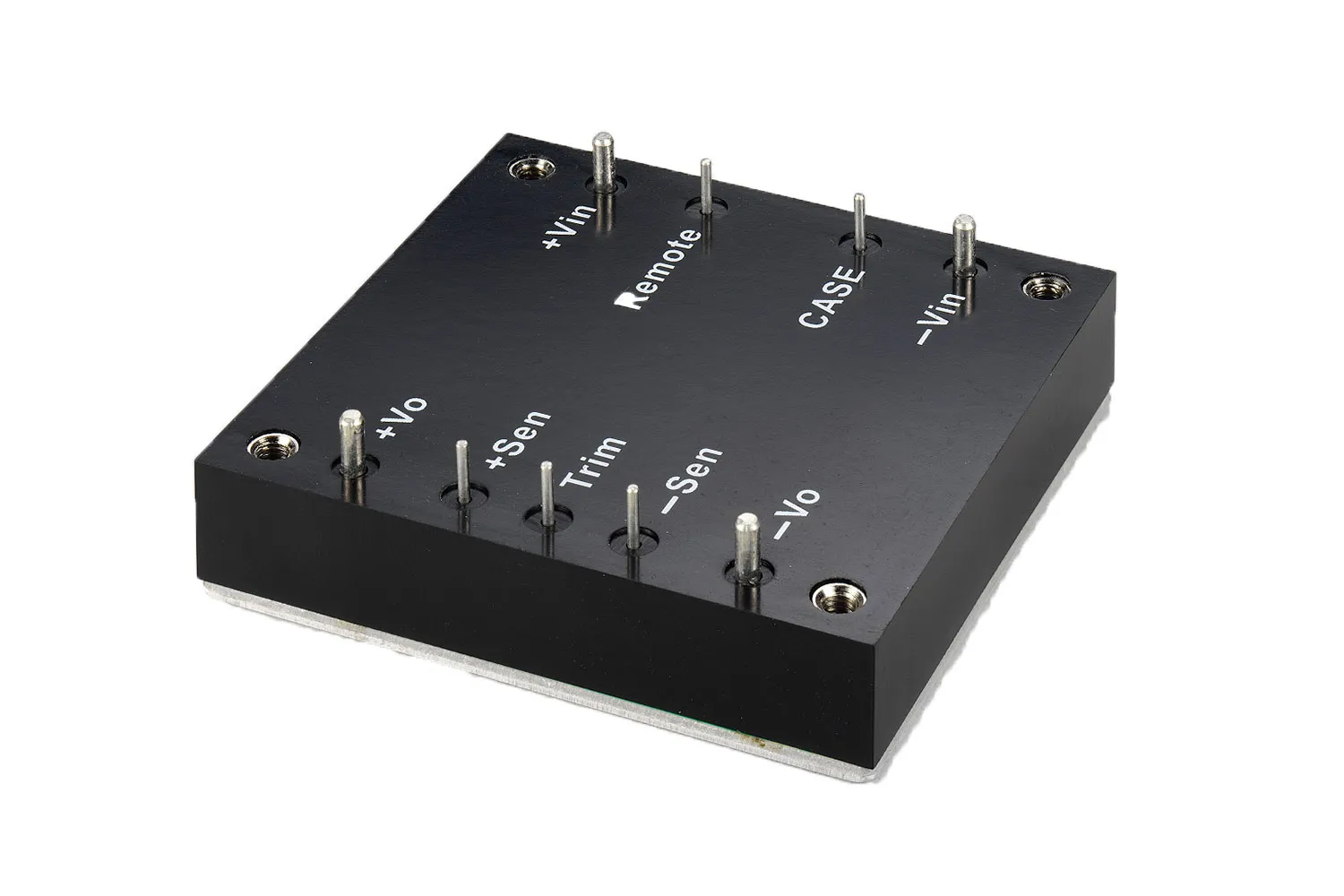

DC-DC Converter Isolated 28VDC 12.5A 2:1 Input 18-36VDCin Half-Brick Board Mount

Features

  • 350W Isolated Output
  • Fixed Switching Frequency
  • 2:1 Input Range
  • Remote ON/OFF
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Half-Brick Size Meet Industry Standard
  • Fully Isolated 1500 VDC
  • CE, UL60950-1 Approval
  • High Power Density 123 W/in3

Specifications

  • Output Voltage: 28 VDC
  • Output Current: 0 mA to 12.5 A
  • Input Voltage: 18 to 36 VDC (24 VDC nominal)
  • Input Current: 60 mA (no load); 16.11 A (full load)
  • Efficiency: 90.5%
  • Capacitive Load: 100 to 7000 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Manufacturer Series:CHB350
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage:24 VDC
Input Voltage Range:18 VDC to 36 VDC
Maximum Input Current:16.11 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:28 VDC
Additional Output Voltages (VDC):N/A
Output Current:12.50 A

Features

Pins:9
Efficiency:90.5%
Power Rating:350 W
,
