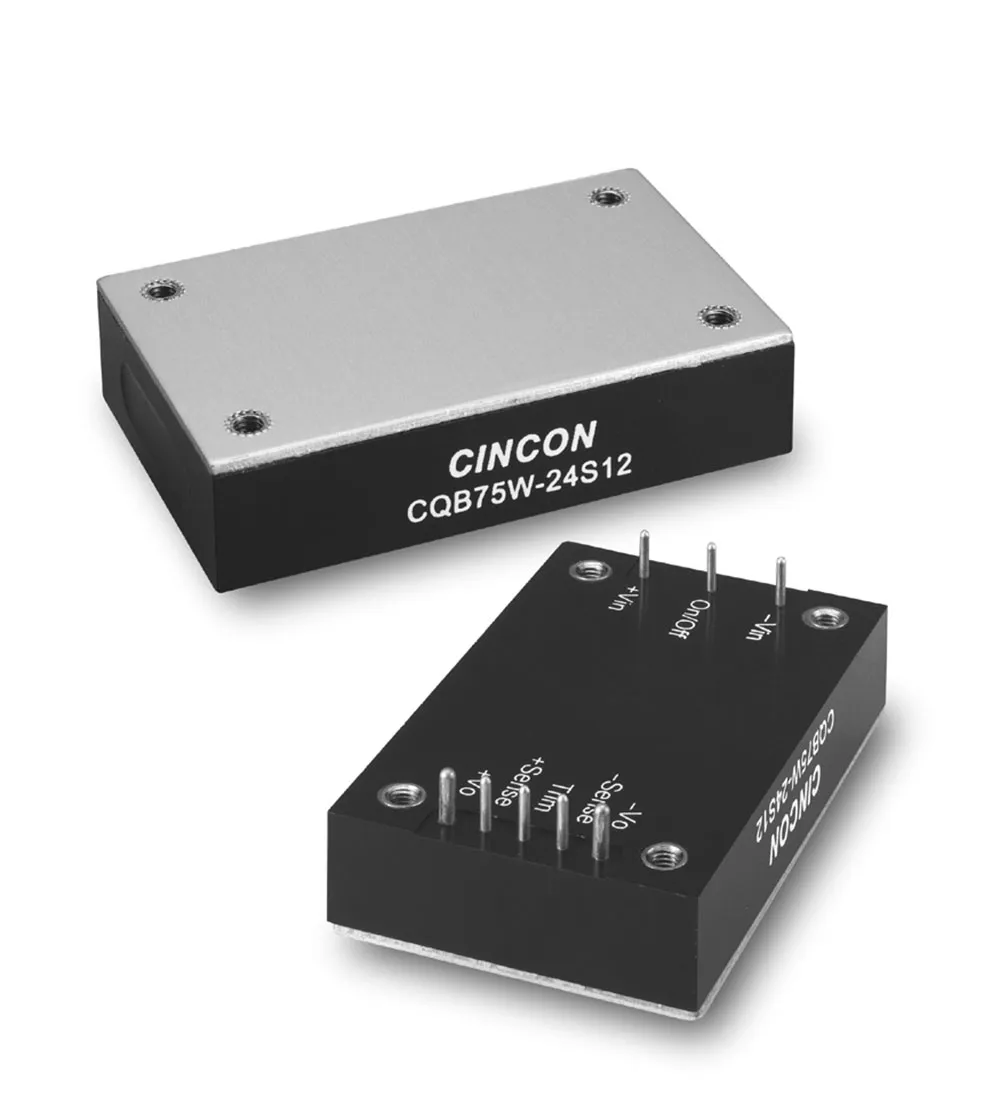

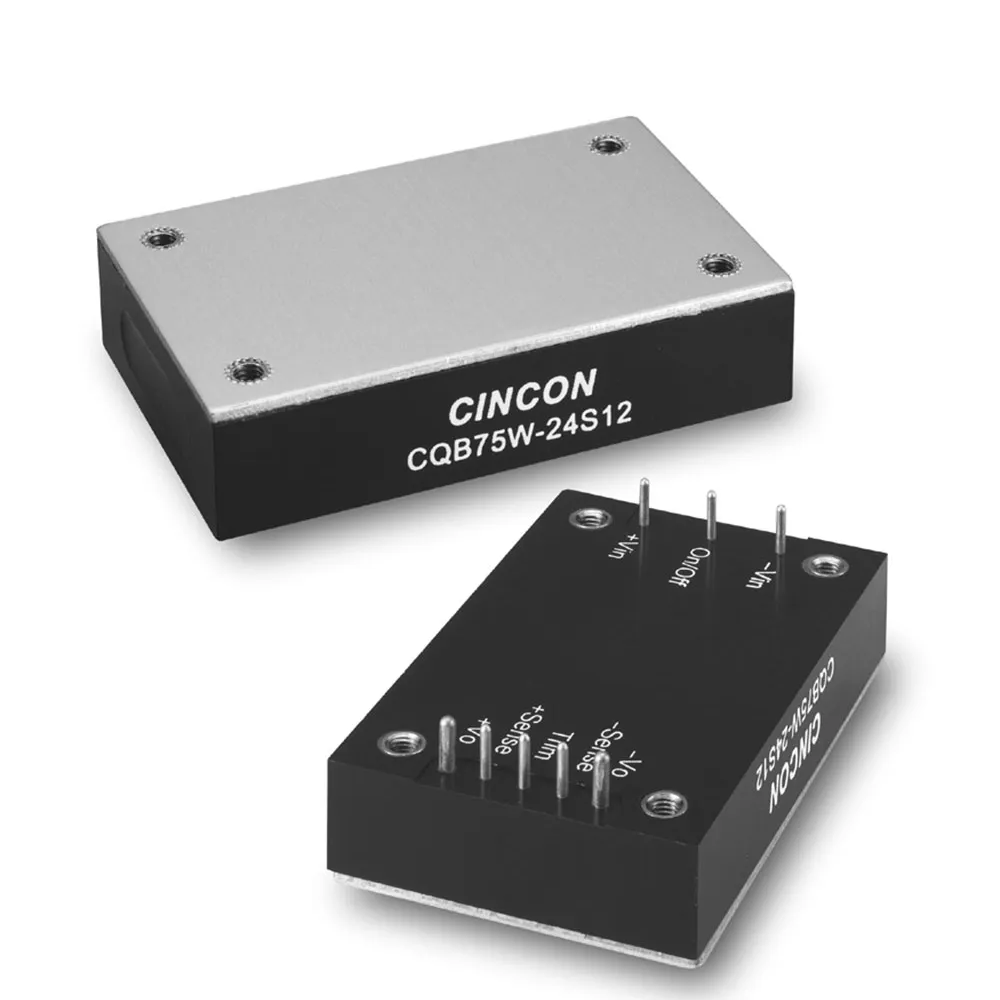

DC-DC Converter Isolated 24VDC 3.12A 4:1 Input 9-36VDCin Quarter-Brick Board Mount

Features

  • 75W Isolated Output
  • Fixed Switching Frequency
  • 4:1 Input Range
  • Regulated Outputs
  • Continuous Short Circuit Protection
  • Quarter-Brick Package Meets Industrial Standard
  • UL60950-1 (2nd) Approval

Specifications

  • Output Voltage: 24 VDC
  • Output Current: 0 mA to 3.12 A
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 50 mA (no load); 3628 mA (full load)
  • Efficiency: 86%
  • Capacitive Load: 1500 µF (max.)
  • Size: 2.28"W x 1.45"D x 0.5"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CQB75W

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Height:0.5 in.
Width:1.45 in.
Length:2.28 in.
Mounting:PCB

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Quarter Brick

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:3.628 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:3.12 A

Features

Pins:8
Efficiency:86%
Power Rating:74.88 W
,
