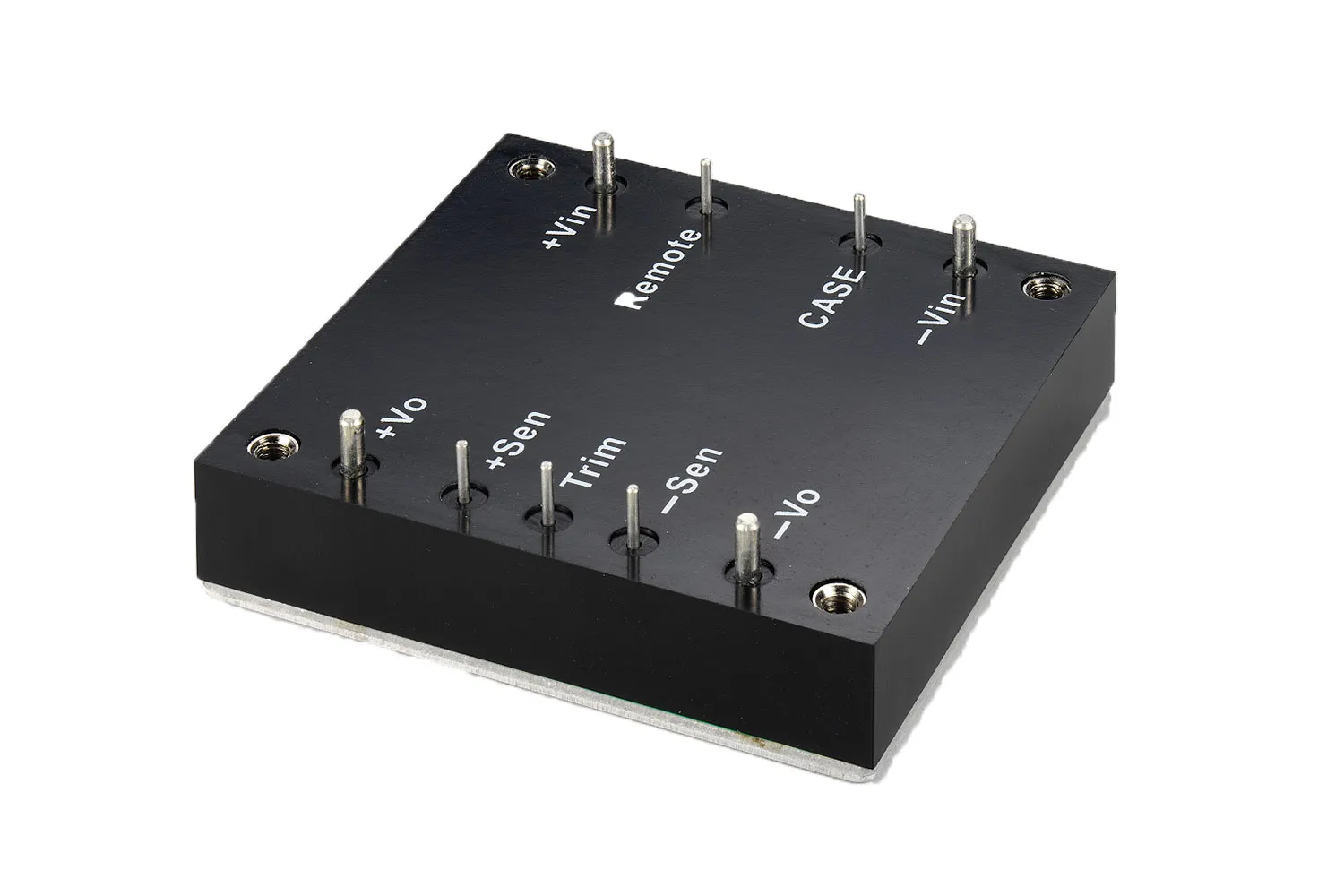

DC-DC Converter Isolated 24VDC 14.6A 2:1 Input 36-75VDCin Half-Brick Board Mount

Features

  • 350W Isolated Output
  • Fixed Switching Frequency
  • 2:1 Input Range
  • Remote ON/OFF
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Half-Brick Size Meet Industry Standard
  • Fully Isolated 1500 VDC
  • CE, UL60950-1 Approval
  • High Power Density 123 W/in3

Specifications

  • Output Voltage: 24 VDC
  • Output Current: 0 mA to 14.6 A
  • Input Voltage: 36 to 75 VDC (48 VDC nominal)
  • Input Current: 60 mA (no load); 7.98 A (full load)
  • Efficiency: 91.5%
  • Capacitive Load: 10,000 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CHB350

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Height:0.5 in.
Width:2.4 in.
Length:2.28 in.
Mounting:PCB

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage:48 VDC
Input Voltage Range:36 VDC to 75 VDC
Maximum Input Current:7.98 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:14.60 A

Features

Pins:9
Efficiency:91.5%
Power Rating:350.4 W
,
