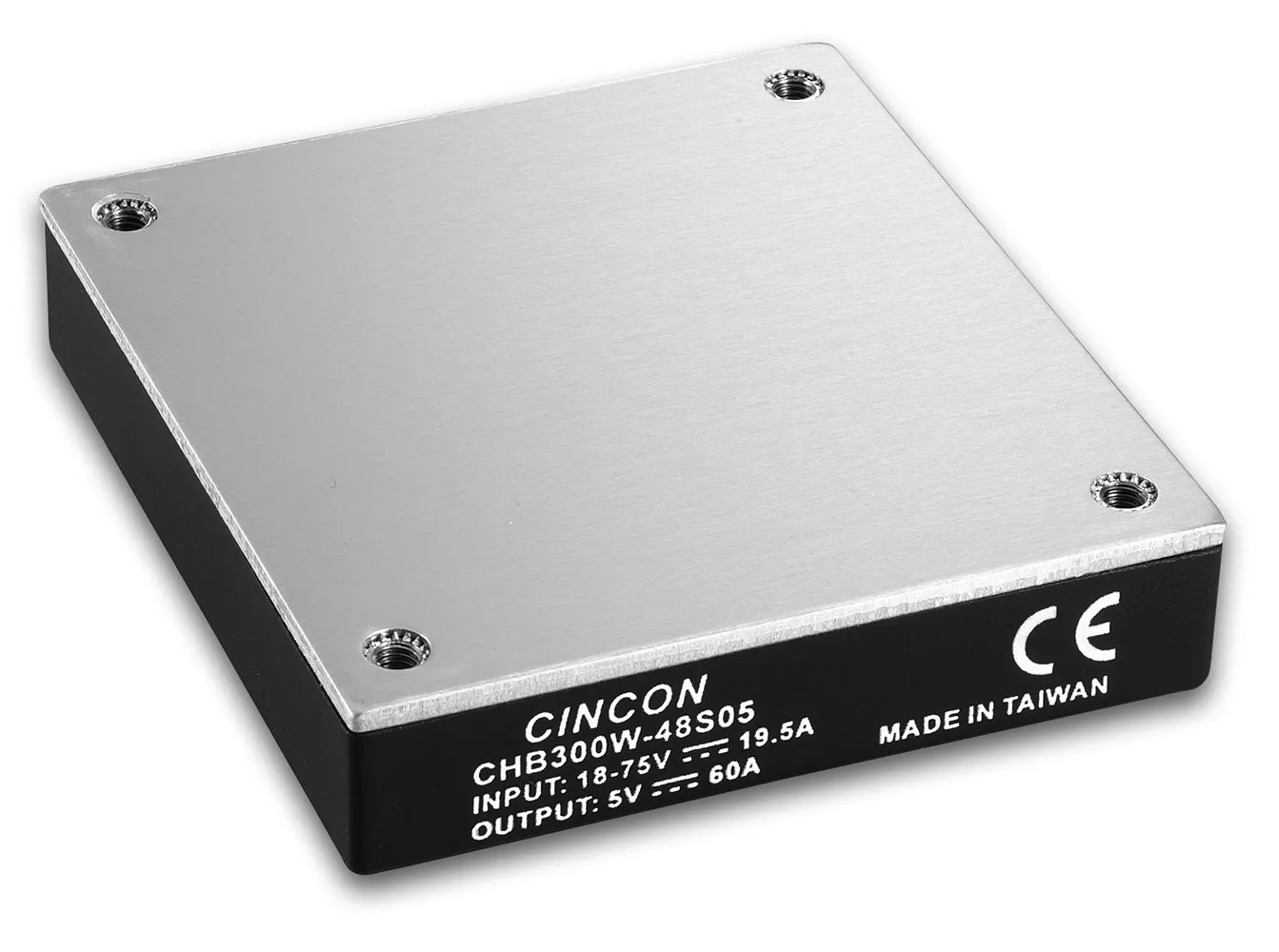

DC-DC Converter Isolated 24VDC 12.5A 4:1 Input 18-75VDCin Half-Brick Board Mount

Features

  • 300W Isolated Output
  • Fixed Switching Frequency
  • Regulated Outputs
  • 4:1 Input Range
  • Remote ON/OFF
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Half-Brick Size Meet Industry Standard
  • Fully Isolated 1500 VDC
  • CE, UL60950-1 2nd Approval

Specifications

  • Output Voltage: 24 VDC
  • Output Current: 0 mA to 12.5 A
  • Input Voltage: 18 to 75 VDC (48 VDC nominal)
  • Input Current: 60 mA (no load); 6.98 A (full load)
  • Efficiency: 89-90%
  • Capacitive Load: 0 to 4700 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CHB300W

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage Range:18 VDC to 75 VDC
Input Voltage:48 VDC
Maximum Input Current:6.98 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:24 VDC
Additional Output Voltages (VDC):N/A
Output Current:12.50 A

Features

Pins:9
Efficiency:90%
Power Rating:300 W
,
