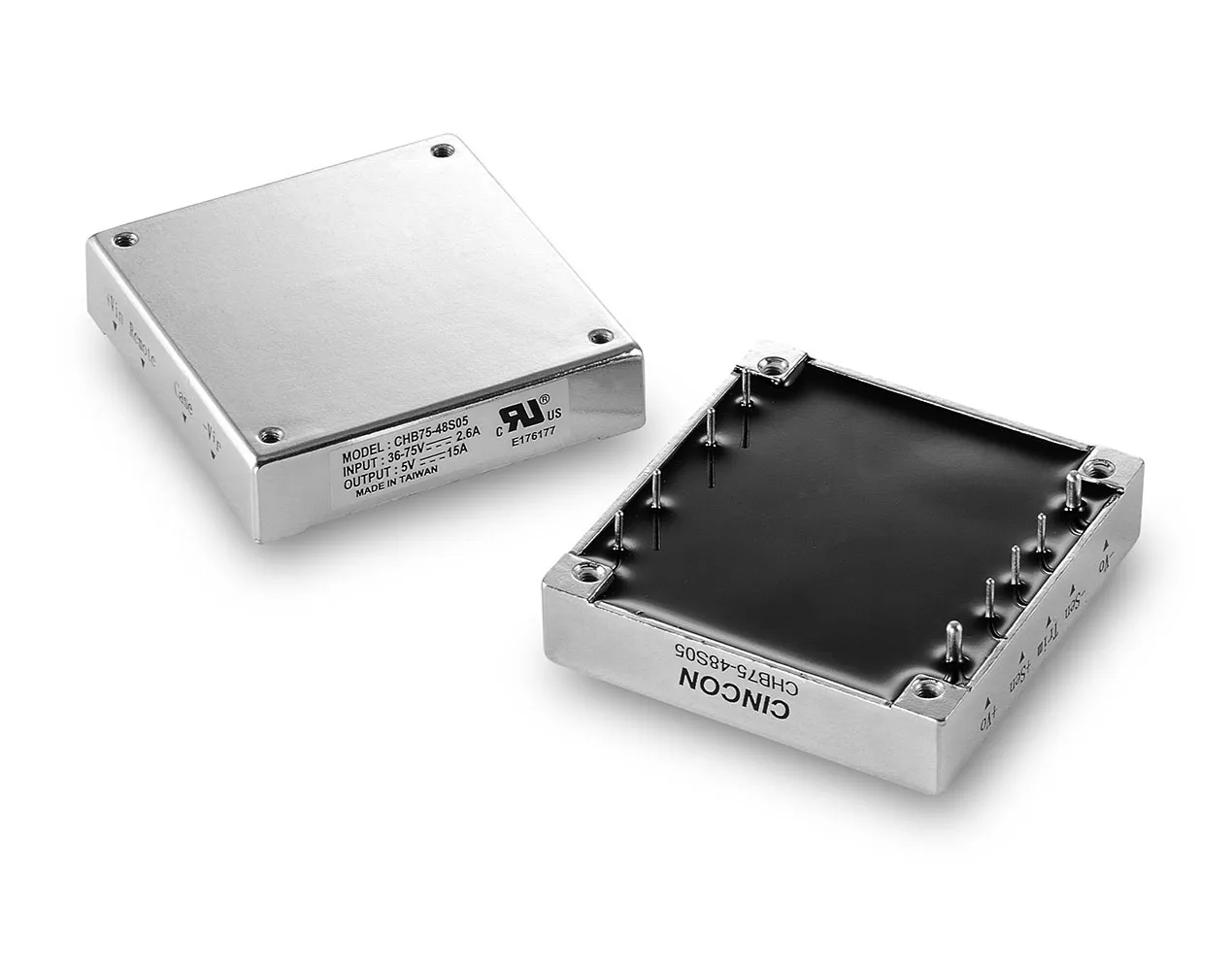

DC-DC Converter Isolated 15VDC 5A 2:1 Input 9-18VDCin Half-Brick Board Mount

Features

  • 75W Isolated Output
  • 300/400 KHz Switching Frequency
  • 2:1 Input Range
  • Regulated Outputs
  • Continuous Short Circuit Protection
  • Half-Brick Size Meet Industry Standard
  • Five-sided Metal Case
  • CE, UL60950-1 Approval
  • Safety Meets IEC/EN/UL60950-1

Specifications

  • Output Voltage: 15 VDC
  • Output Current: 0 mA to 5 A
  • Input Voltage: 9 to 18 VDC (12 VDC nominal)
  • Input Current: 50 mA (no load); 7.267 A (full load)
  • Efficiency: 86%
  • Capacitive Load: 4,000 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CHB75

Compliance

Agency Approvals:UL, CUL, CE, EN

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage Range:9 VDC to 18 VDC
Input Voltage:12 VDC
Maximum Input Current:7.267 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:5 A

Features

Pins:9
Efficiency:86%
Power Rating:75 W
,
