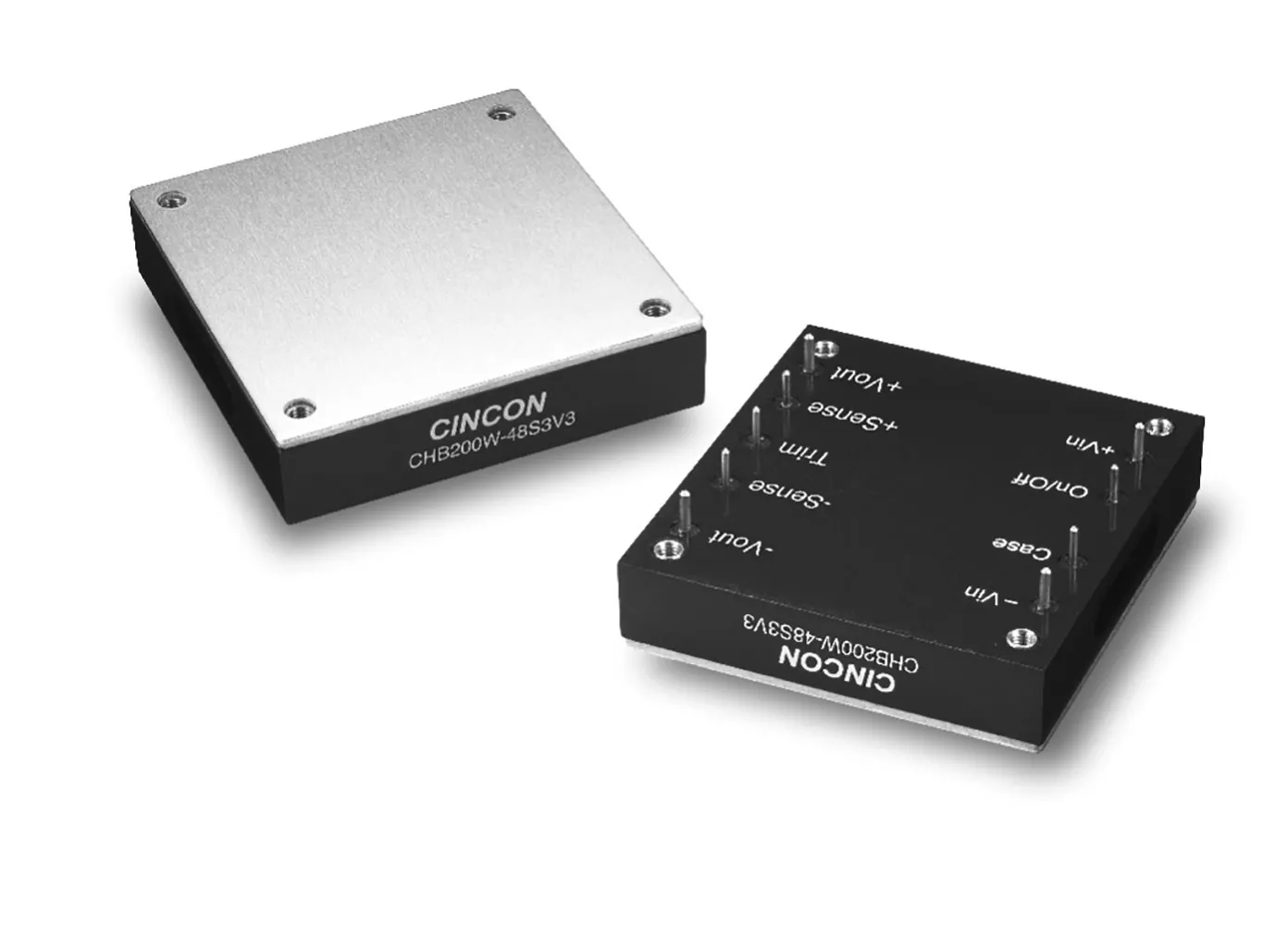

DC-DC Converter Isolated 15VDC 13.3A 4:1 Input 10-36VDCin Half-Brick Board Mount

Features

  • 200W Isolated Output
  • Regulated Output
  • 4:1 Input Range
  • Remote ON/OFF Control
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Half-Brick Size Meet Industry Standard
  • Fully Isolated 1500 VDC
  • Continuous Short Circuit Protection
  • CE, UL60950-1 Approval

Specifications

  • Output Voltage: 15 VDC
  • Output Current: 0 mA to 13.3 A
  • Input Voltage: 10 to 36 VDC (24 VDC nominal)
  • Input Current: 50 mA (no load); 9.56 A (full load)
  • Efficiency: 87%
  • Capacitive Load: 2200 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.52"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CHB200W

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.52 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage Range:10 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:9.56 A

Output

Number of Outputs:1
Output Connector Type:PC Pins
Output Voltage:15 VDC
Additional Output Voltages (VDC):N/A
Output Current:13.30 A

Features

Pins:9
Efficiency:87%
Power Rating:199.5 W
,
