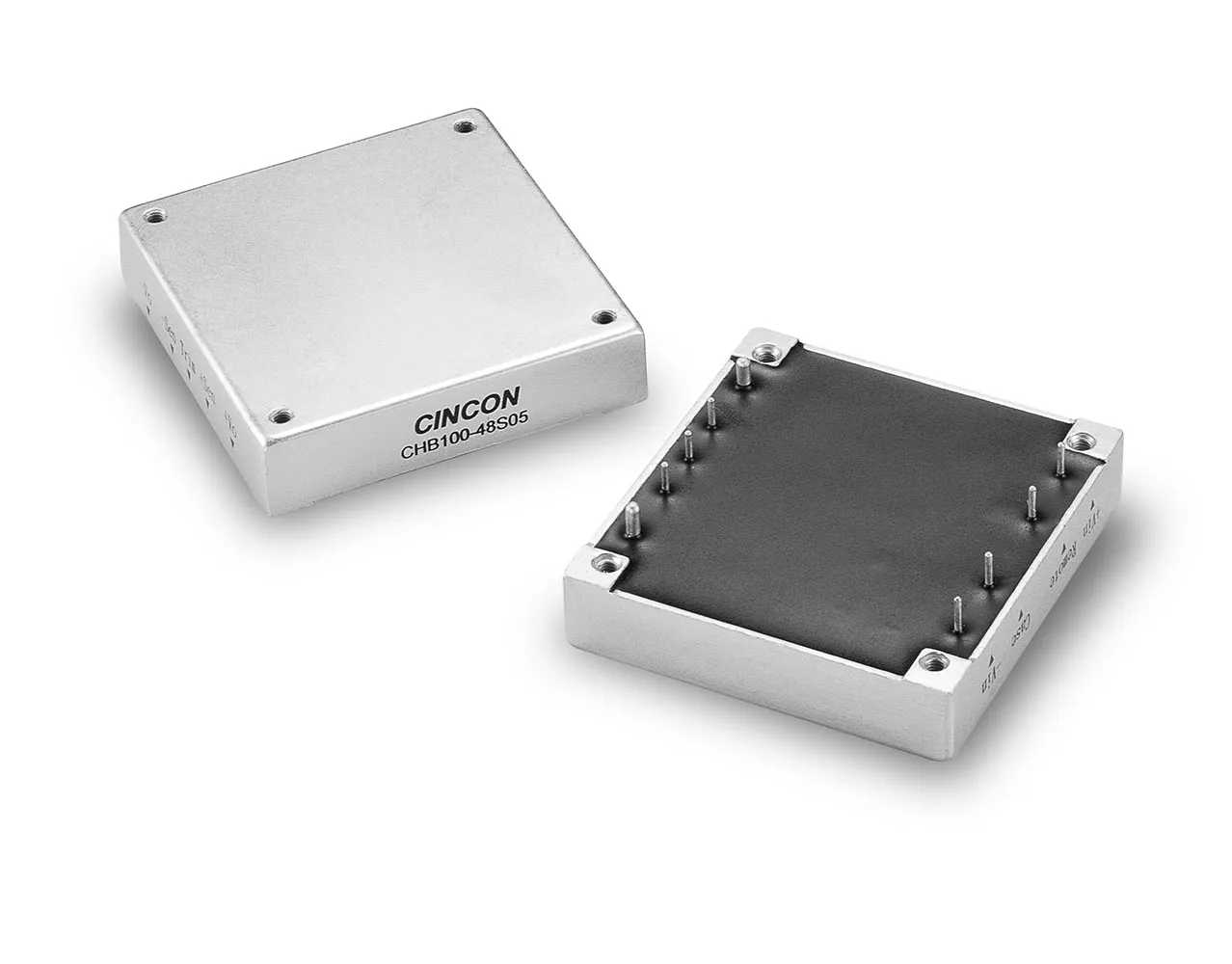

DC-DC Converter Isolated 12VDC 8.3A 2:1 Input 18-36VDCin Half-Brick Board Mount

Features

  • 99.6W Isolated Output
  • 500 KHz Switching Frequency
  • 2:1 Input Range
  • Regulated Outputs
  • Continuous Short Circuit Protection
  • Five-Sided Metal Case
  • Half-Brick Size Meet Industry Standard
  • Without Tantalum Capacitor Inside
  • CE, UL60950-1 Approval

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0 mA to 8.3 A
  • Input Voltage: 18 to 36 VDC
  • Input Current: 50 mA (no load); 4.77 A (full load)
  • Efficiency: 87%
  • Capacitive Load: 8,300 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CHB100

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Height:0.5 in.
Width:2.4 in.
Length:2.28 in.
Mounting:PCB

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage:24 VDC
Input Voltage Range:18 VDC to 36 VDC
Maximum Input Current:4.77 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:8.30 A

Features

Pins:9
Efficiency:87%
Power Rating:99.6 W
,
