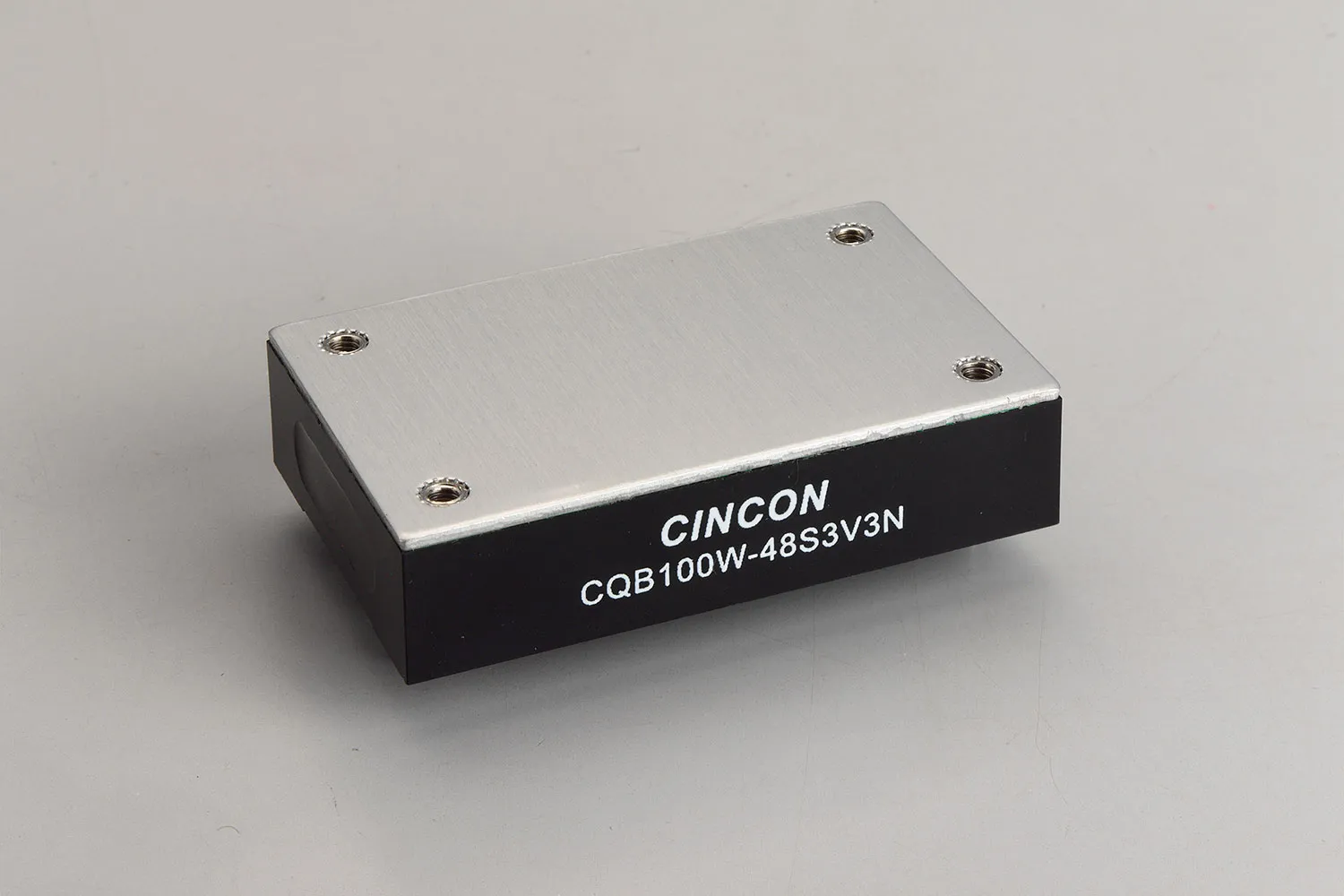

DC-DC Converter Isolated 12VDC 8.3A 4:1 Input 9-36VDCin Quarter-Brick Board Mount

Features

  • 100W Isolated Output
  • 4:1 Input Range
  • Regulated Outputs
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Remote ON/OFF
  • 1500 VDC Isolation
  • Quarter-Brick Package
  • Safety Meets UL60950-1

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0 mA to 8.3 A
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 80 mA (no load); 4.798 A (full load)
  • Efficiency: 86.5%
  • Capacitive Load: 2200 µF (max.)
  • Size: 1.45"W x 2.28"D x 0.5"H

Product Identification

Manufacturer Series:CQB100W
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:1.45 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Quarter Brick

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:4.798 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:8.30 A

Features

Pins:8
Efficiency:86.5%
Power Rating:99.6 W
,
