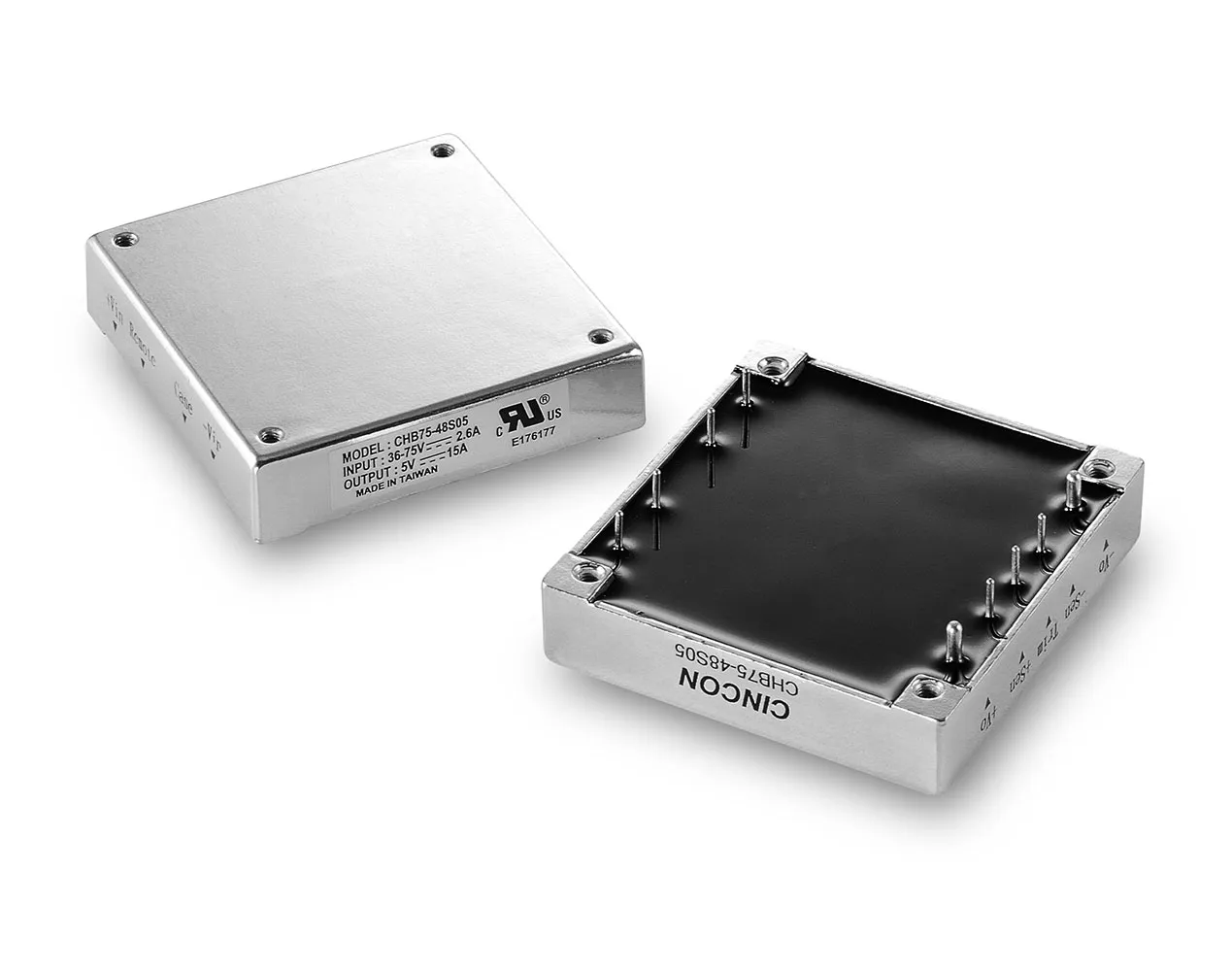

DC-DC Converter Isolated 12VDC 6.25A 2:1 Input 18-36VDCin Half-Brick Board Mount

Features

  • 75W Isolated Output
  • 300/400 KHz Switching Frequency
  • 2:1 Input Range
  • Regulated Outputs
  • Continuous Short Circuit Protection
  • Half-Brick Size Meet Industry Standard
  • Five-sided Metal Case
  • CE, UL60950-1 Approval
  • Safety Meets IEC/EN/UL60950-1

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0 mA to 6.25 A
  • Input Voltage: 18 to 36 VDC (24 VDC nominal)
  • Input Current: 50 mA (no load); 3.551 A (full load)
  • Efficiency: 88%
  • Capacitive Load: 10,000 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.5"H

Product Identification

Manufacturer Series:CHB75
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL, CUL, CE, EN

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage:24 VDC
Input Voltage Range:18 VDC to 36 VDC
Maximum Input Current:3.551 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:6.25 A

Features

Pins:9
Efficiency:88%
Power Rating:75 W
,
