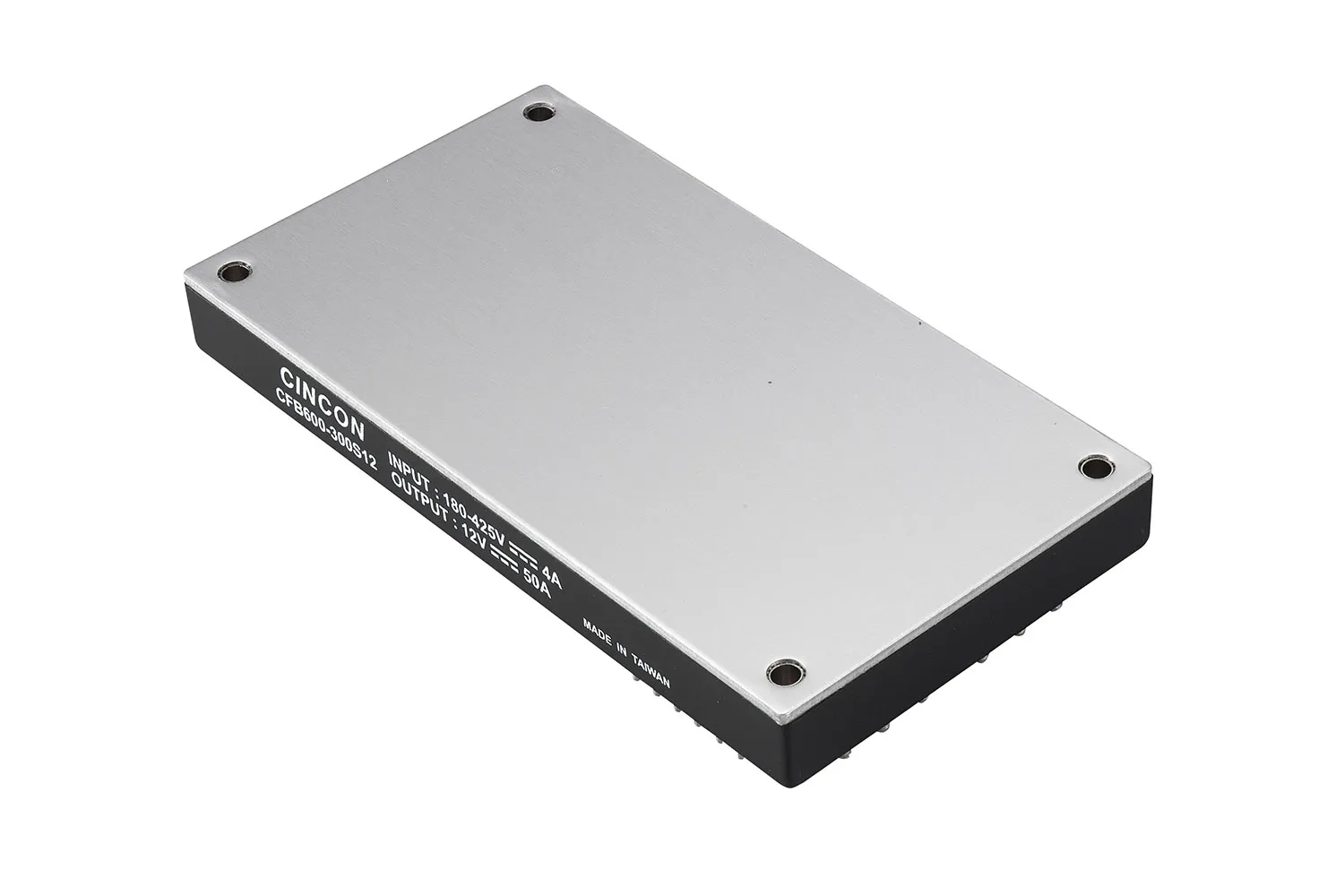

DC-DC Converter Isolated 12VDC 50A 2:1 Input 180-425VDCin Full Brick Board Mount

Features

  • 600W Isolated Output
  • Fixed Switching Frequency
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Remote On/Off
  • Single Wire Parallel
  • Full-Brick Size Meet Industry Standard
  • Fully Isolated 3000VDC
  • CE, UL60950-1 Approval

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0 mA to 50 A
  • Input Voltage: 180 to 425 VDC
  • Input Current: 10 mA (no load); 2.24 A (full load)
  • Efficiency: 89.5%
  • Capacitive Load: 10,000 µF (max.)

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:CFB600

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Height:0.5 in.
Width:2.4 in.
Length:4.6 in.
Mounting:PCB

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Full Brick

Input

Input Voltage Range:180 VDC to 425 VDC
Input Voltage:300 VDC
Maximum Input Current:2.24 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:50 A

Features

Pins:16
Efficiency:89.5%
Power Rating:600 W
,
