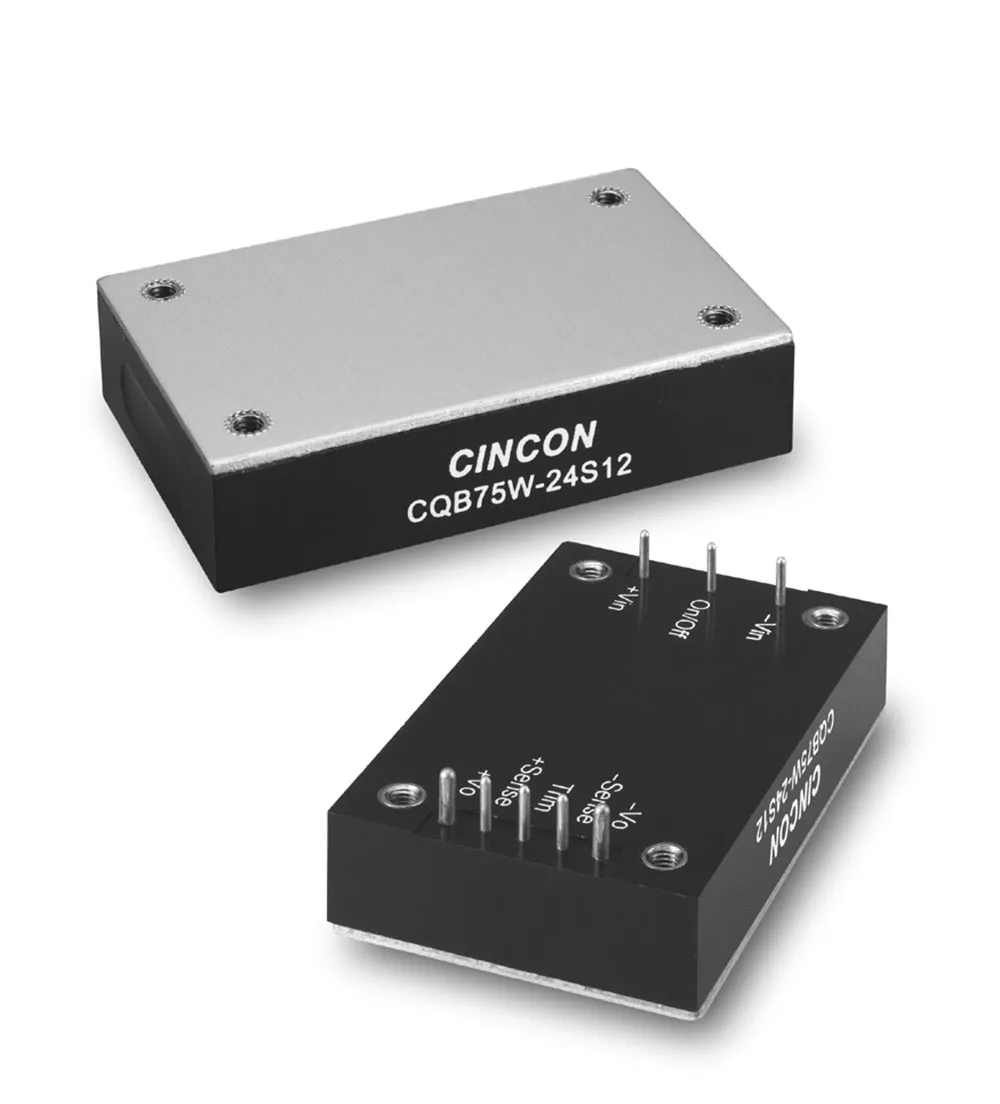

DC-DC Converter Isolated 12VDC 4.16A 4:1 Input 9-36VDCin Quarter-Brick Board Mount

Features

  • 50W Isolated Output
  • No Tantalum Capacitor Inside
  • 300 KHz Switching Frequency
  • 4:1 Input Range
  • Regulated Outputs
  • Continuous Short Circuit Protection
  • Quarter-Brick Package Meets Industrial Standard, Six-Sided Shield Metal Case
  • Full Load Operation up to 80°C with Heat Sink QBT210 (M-C421) Natural Convection
  • Over Temperature/Voltage/Current Protection
  • UL60950-1 (2nd) Approval

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0 mA to 4.16 A
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 100 mA (no load); 2261 mA (full load)
  • Efficiency: 91.5%
  • Capacitive Load: 4160 µF (max.)
  • Size: 2.28"W x 1.45"D x 0.5"H

Product Identification

Manufacturer Series:CQE50W
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:1.45 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:105°C
Minimum Operating Temperature:-40°C

Packaging

Package:Quarter Brick

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:2.261 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:4.16 A

Features

Pins:8
Efficiency:91.5%
Power Rating:49.92 W
,
