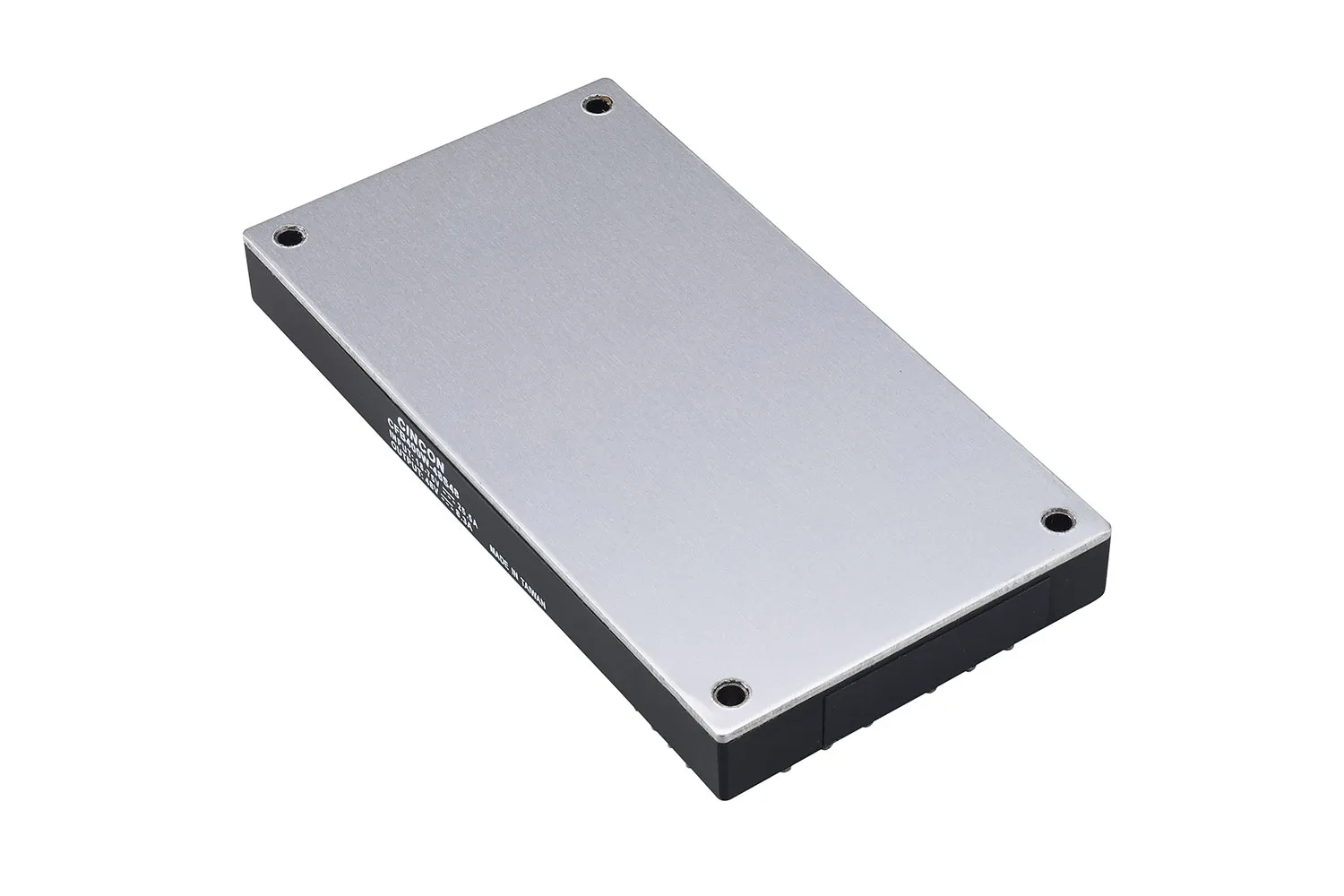

DC-DC Converter Isolated 12VDC 33.3A 4:1 Input 9-36VDCin Full Brick Board Mount

Features

  • 400W Isolated Output
  • Fixed Switching Frequency
  • Input Under Voltage Protection
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Remote On/Off
  • Full-Brick Size Meet Industry Standard
  • Fully Isolated 1500VDC
  • Without Tantalum Capacitor Inside
  • UL60950-1 Approval

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0 mA to 33.3 A
  • Input Voltage: 9 to 36 VDC
  • Input Current: 120 mA (no load); 19.36 A (full load)
  • Efficiency: 85% to 86%
  • Capacitive Load: 10,000 µF (max.)

Product Identification

Manufacturer Series:CFB400W
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.5 in.
Width:2.4 in.
Length:4.6 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Full Brick

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:19.36 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:33.30 A

Features

Pins:16
Efficiency:86%
Power Rating:400 W
,
