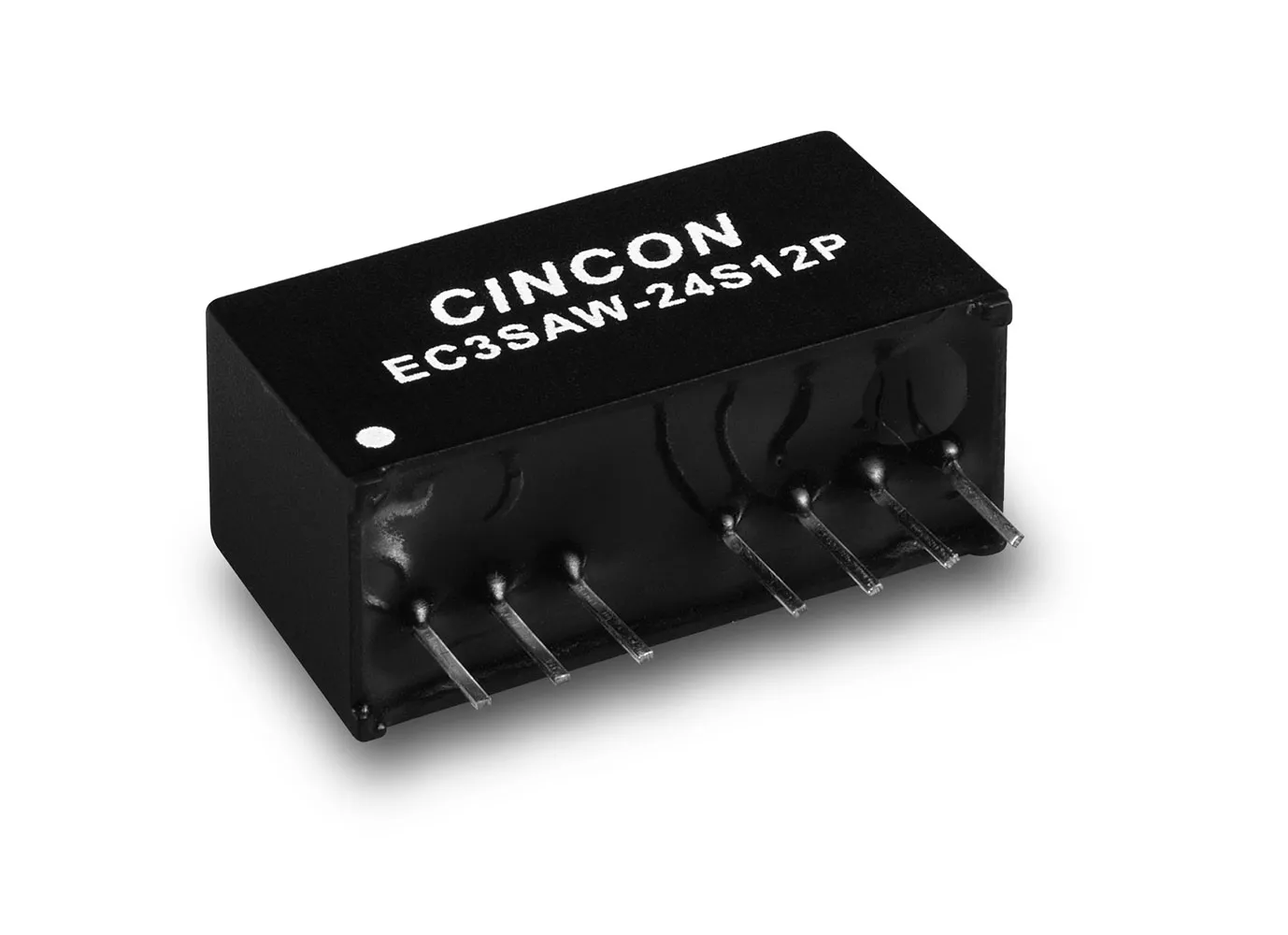

DC-DC Converter Isolated 12VDC 250mA 4:1 Input 9-36VDCin SIP-8

Features

  • 3W Isolated Output
  • SIP-8 Package
  • 4:1 Input Range
  • Regulated Outputs
  • Remote ON/OFF Control
  • 1500 VDC Isolation
  • Continuous Short Circuit Protection
  • Input Under Voltage Protection
  • No Tantalum Capacitor Inside
  • Non-conductive black plastic (encapsulated)
  • CE Mark Meets 2014/30/EU
  • Safety Meets UL60950-1, EN60950-1 and IEC60950-1
  • Compact SIP-8 Package

Specifications

  • Output Voltage: 12 VDC
  • Output Current: 0 mA to 250 mA
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 8 mA (no load); 150 mA (full load)
  • Efficiency: 84%
  • Capacitor Load Max.: 220 µF
  • Size: 0.86"W x 0.36"D x 0.44"H

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:EC3SAW

Compliance

Agency Approvals:UL, CE

Dimensions & Appearance

Height:0.44 in.
Width:0.36 in.
Length:0.86 in.
Mounting:PCB

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:85°C

Packaging

Package:SIP-8

Input

Maximum Input Current:0.15 A
Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC

Output

Number of Outputs:1
Output Connector Type:SIP-8
Output Voltage:12 VDC
Output Current:0.25 A
Additional Output Voltages (VDC):N/A

Features

Pins:7
Efficiency:84%
Power Rating:3 W
,
