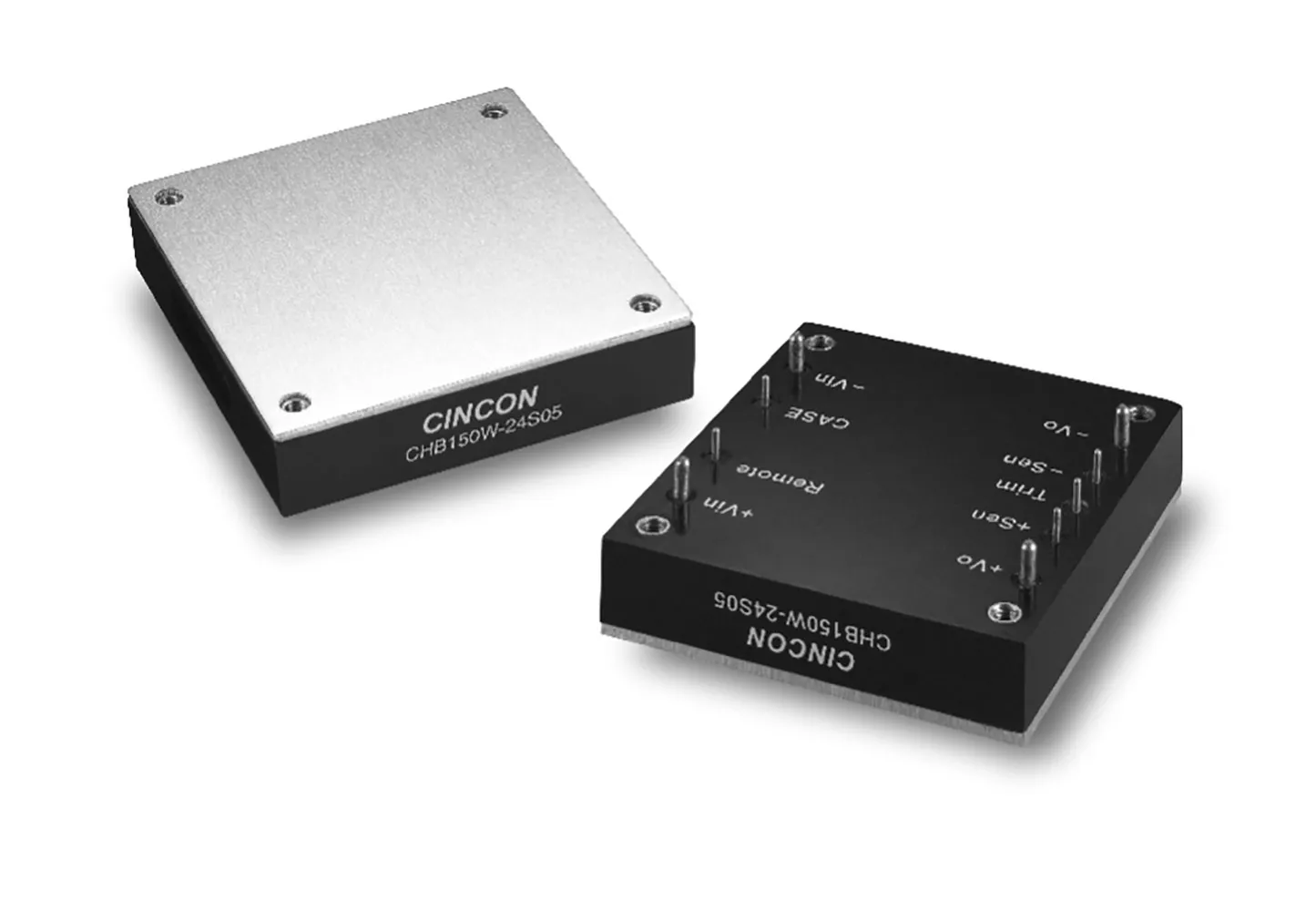

DC-DC Converter Isolated 12VDC 12.5A 4:1 Input 9-36VDCin Half-Brick Board Mount

Features

  • 150W Isolated Output
  • 250 KHz Switching Frequency
  • 4:1 Input Range
  • Regulated Outputs
  • Remote ON/OFF
  • Over Temperature Protection
  • Over Voltage/Current Protection
  • Continuous Short Circuit Protection
  • Half-Brick Size Meet Industry Standard
  • CE, UL60950-1 Approval

Specifications

  • Output Voltage: 12VDC
  • Output Current: 0 mA to 12.5 A
  • Input Voltage: 9 to 36 VDC (24 VDC nominal)
  • Input Current: 100 mA (no load); 7.102 A (full load)
  • Efficiency: 88%
  • Capacitive Load: 12,500 µF (max.)
  • Size: 2.28"W x 2.4"D x 0.52"H

Product Identification

Manufacturer Series:CHB150W
Product Type:DC-DC Converter SMPS

Compliance

Agency Approvals:UL, CUL, CE

Dimensions & Appearance

Mounting:PCB
Height:0.52 in.
Width:2.4 in.
Length:2.28 in.

Operating conditions

Maximum Operating Temperature:100°C
Minimum Operating Temperature:-40°C

Packaging

Package:Half Brick

Input

Input Voltage Range:9 VDC to 36 VDC
Input Voltage:24 VDC
Maximum Input Current:7.102 A

Output

Number of Outputs:1
Output Voltage:12 VDC
Output Connector Type:PC Pins
Additional Output Voltages (VDC):N/A
Output Current:12.50 A

Features

Pins:9
Efficiency:88%
Power Rating:150 W
,
