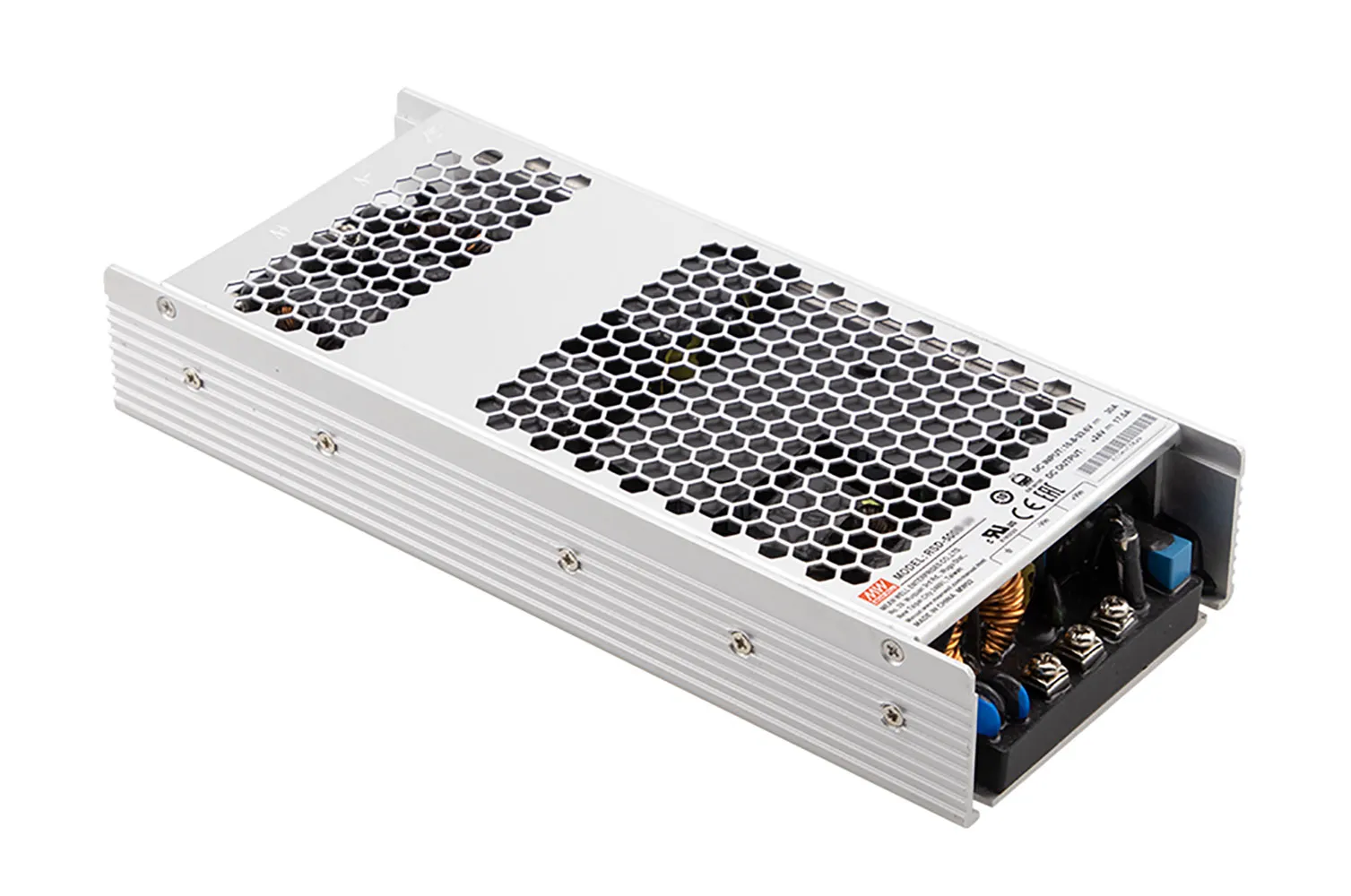

DC-DC Converter Enclosed Reliable Railway Type 48V 10.4A 499.2W 67.2Vin to 154Vin

Features

  • Compliant to EN50155 and EN45545-2 railway standard
  • 1U low profile: 41 mm
  • 2:1 wide input range
  • Fanless design, half encapsulated, cooling by free air convection
  • -40 to +80°C wide operating temperature
  • DC output adjustable
  • Protections: Short circuit, overload, over voltage, over temperature, input reverse polarity, input under voltage
  • 4 KV DC I/O isolation (reinforced isolation)
  • Operating altitude up to 5000 meters
  • LED indicator for power ON
  • 3 year warranty

Specifications

  • Output Voltage: 48 VDC
  • Rated Current: 10.4 A
  • Rated Power: 499.2 W
  • Input Voltage: 67.2 VDC to 154 VDC
  • Efficiency: 93%
  • Connections: Screw terminal input and output
  • Size (LxWxH): 9.33" x 3.94" x 1.61 " (237 x 100 x 41 mm)
  • Agency Approvals: UL, CUL, CB, CE, EN, EAC

Applications

  • Bus, tram, metro or railway systems
  • Industrial control systems
  • Semi-conductor fabrication equipment
  • Factory automation
  • Electro-mechanical
  • Wireless networks
  • Telecom or datacom systems
  • High vibration, highly dusty, extremely low or high temperature harsh environments

Product Identification

Product Type:Railway Singe Output DC to DC Converter SMPS
Manufacturer Series:RSD-500

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, EAC

Dimensions & Appearance

Color:Silver
Height:1.61 in.
Width:3.94 in.
Length:9.33 in.

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Packaging

Package:Railway Enclosed

Input

Input Voltage Range:67.2 VDC to 154 VDC
Input Voltage:110 VDC
Maximum Input Current:5 A

Output

Number of Outputs:1
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Additional Output Voltages (VDC):N/A
Output Current:10.40 A

Features

Pins:7
Efficiency:93%
Power Rating:499.2 W
,
