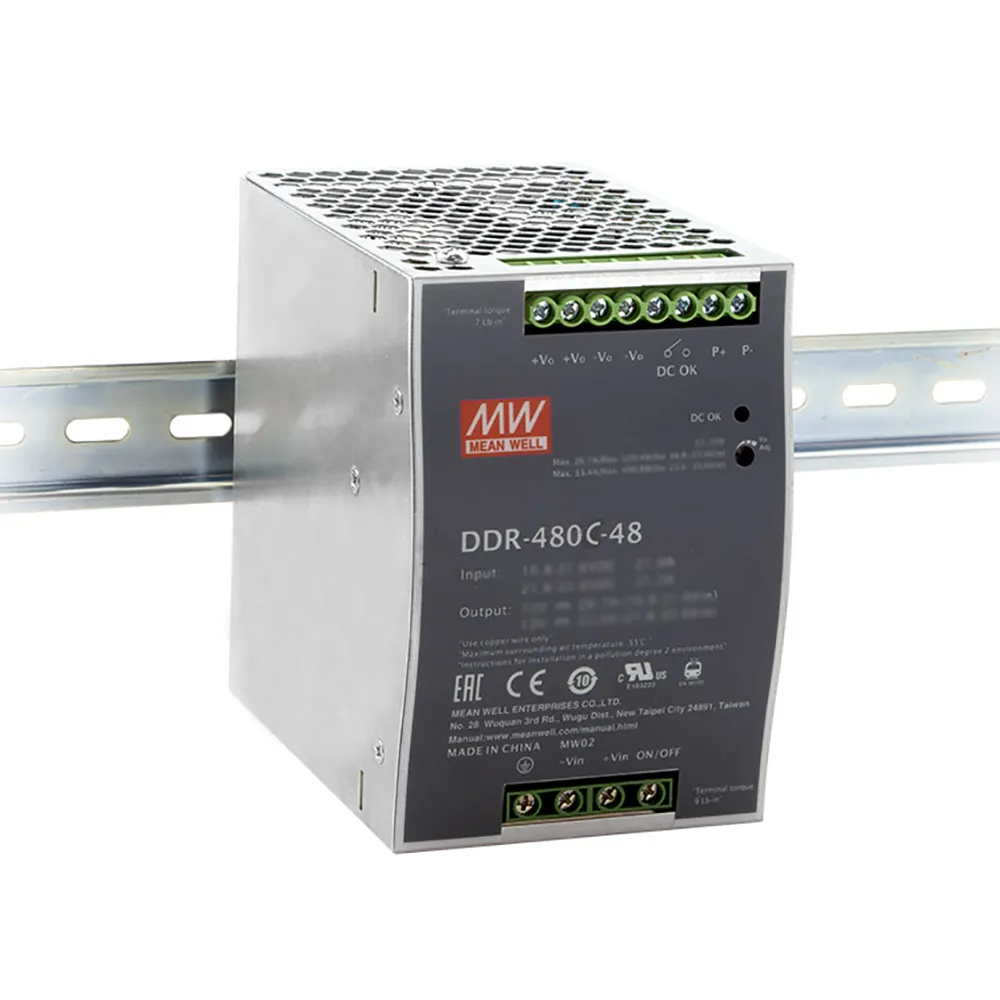

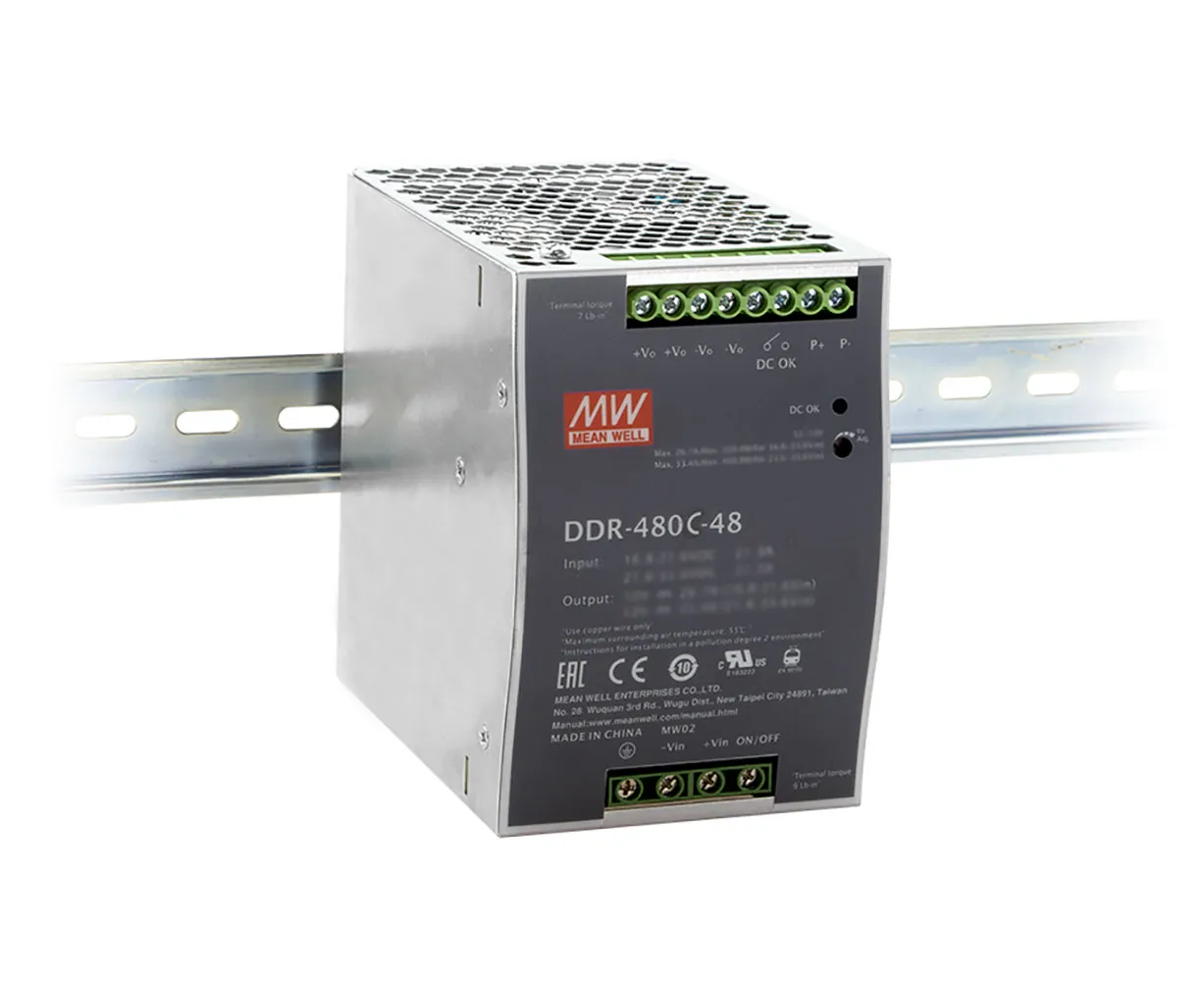

DC-DC Converter DIN-Rail Type 48V 10A 480W 33.6V-67.2Vin

Features

  • Compliant to EN50155 and EN45545-2 railway standard
  • Width only 85.5 mm
  • -40 to +80°C wide operating temperature
  • 150% peak load capability
  • Current sharing up to 1920W (3+1)
  • DC output adjustable
  • Cooling by free air convection
  • Can be installed on DIN rail TS-35/7.5 or TS-35/15
  • Protections: Short circuit, overload, over voltage, over temperature, input reverse polarity, input under voltage
  • 4 KV DC I/O isolation (reinforced isolation)
  • DC OK relay contact
  • Remote ON-OFF control
  • Operating altitude up to 5000 meters
  • 3 year warranty

Specifications

  • Output Voltage: 48 VDC
  • Rated Current: 10 A
  • Rated Power: 480 W
  • Input Voltage: 33.6 VDC to 67.2 VDC
  • Efficiency: 92 %
  • Size (WxHxD): 3.37" x 4.93" x 5.06" (85.5 x 125.2 x 128.5 mm)
  • Agency Approvals: UL, CUL, CB, CE, EN, EAC

Applications

  • Bus, tram, metro or railway systems
  • Industrial control systems
  • Semi-conductor fabrication equipment
  • Factory automation
  • Electro-mechanical
  • Wireless networks
  • Telecom or datacom systems

Product Identification

Product Type:DC-DC Converter SMPS
Manufacturer Series:DDR-480

Compliance

Agency Approvals:UL, CUL, CB, CE, EN, EAC

Dimensions & Appearance

Color:Silver
Width:3.37 in.
Height:4.93 in.
Length:5.06 in.
Mounting:DIN Rail

Operating conditions

Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C

Input

Input Voltage:48 VDC
Input Voltage Range:33.6 VDC to 67.2 VDC
Maximum Input Current:11.2 A

Output

Number of Outputs:1
Output Voltage (Channel 1):48 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:48 VDC
Output Current (Channel 1):10 A
Output Current:10 A

Features

Efficiency:92%
Power Rating:480 W
,
