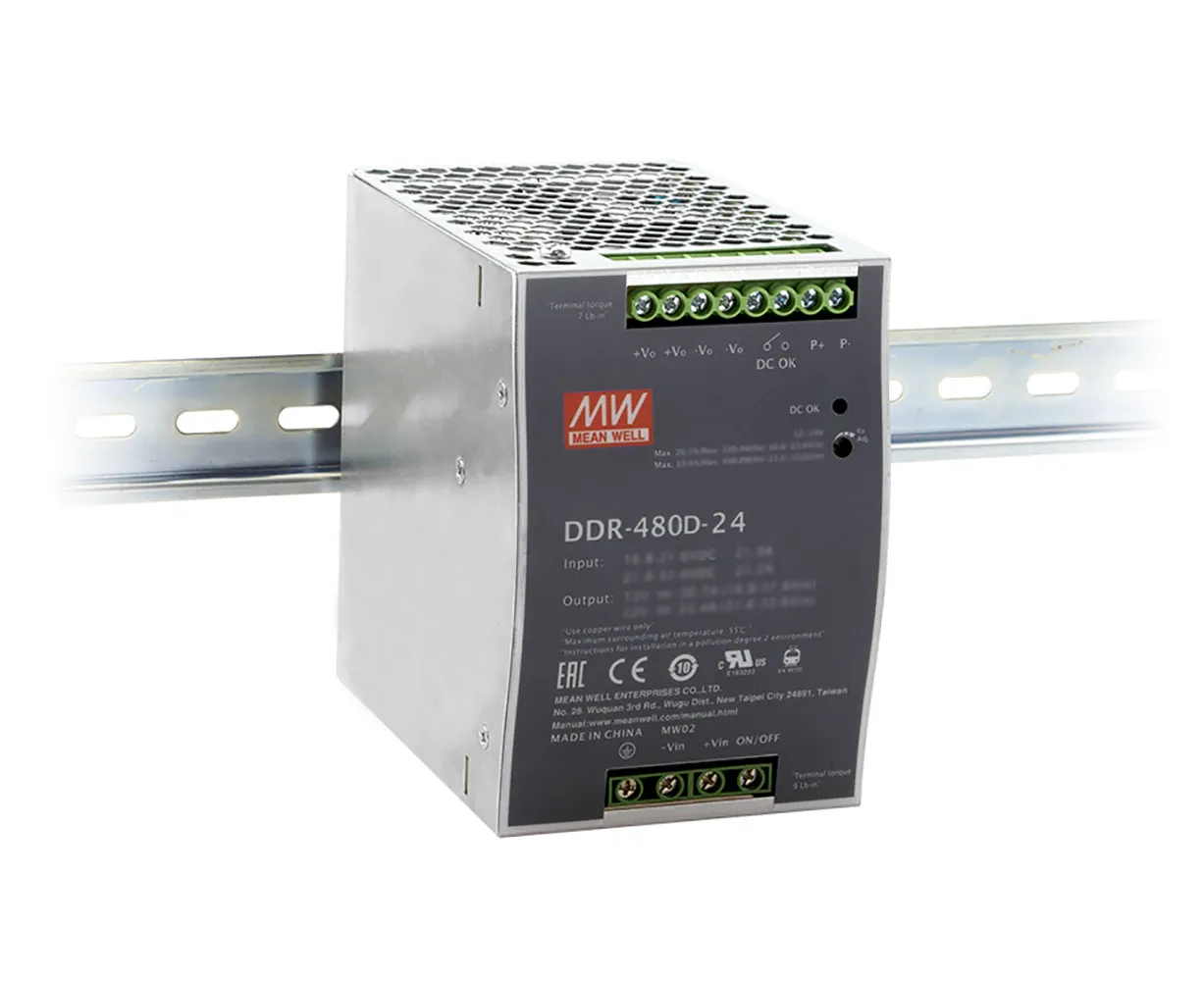

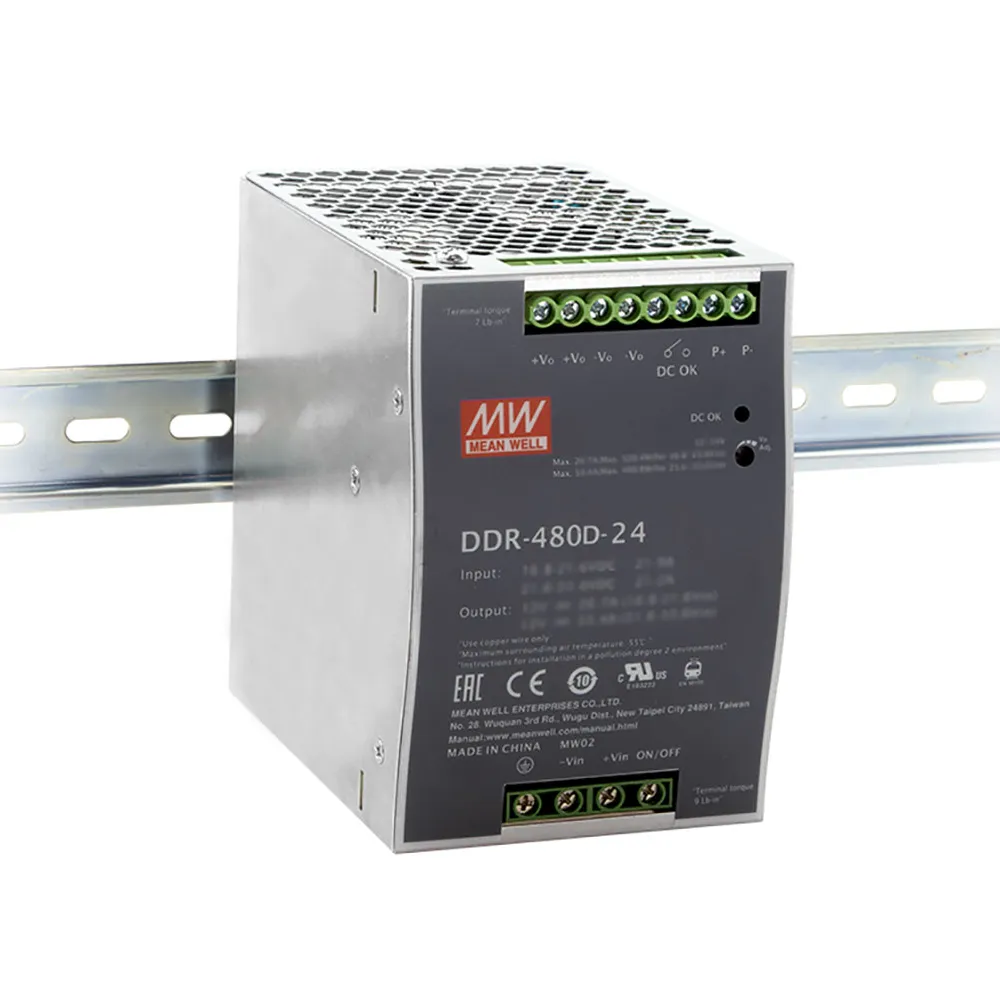

DC-DC Converter DIN-Rail Type 24V 20A 480W 67.2V to 154Vin
Features
- Compliant to EN50155 and EN45545-2 railway standard
- Width only 85.5 mm
- -40 to +80°C wide operating temperature
- 150% peak load capability
- Current sharing up to 1920W (3+1)
- DC output adjustable
- Cooling by free air convection
- Can be installed on DIN rail TS-35/7.5 or TS-35/15
- Protections: Short circuit, overload, over voltage, over temperature, input reverse polarity, input under voltage
- 4 KV DC I/O isolation (reinforced isolation)
- DC OK relay contact
- Remote ON-OFF control
- Operating altitude up to 5000 meters
- 3 year warranty
Specifications
- Output Voltage: 24 VDC
- Rated Current: 20 A
- Rated Power: 480 W
- Input Voltage: 67.2 VDC to 154 VDC
- Efficiency: 92 %
- Size (WxHxD): 3.37" x 4.93" x 5.06" (85.5 x 125.2 x 128.5 mm)
- Agency Approvals: UL, CUL, CB, CE, EN, EAC
Applications
- Bus, tram, metro or railway systems
- Industrial control systems
- Semi-conductor fabrication equipment
- Factory automation
- Electro-mechanical
- Wireless networks
- Telecom or datacom systems
Product Identification
Product Type:DC-DC Converter SMPS
Manufacturer Series:DDR-480
Compliance
Agency Approvals:UL, CUL, CB, CE, EN, EAC
Dimensions & Appearance
Color:Silver
Width:3.37 in.
Height:4.93 in.
Length:5.06 in.
Mounting:DIN Rail
Operating conditions
Minimum Operating Temperature:-40°C
Maximum Operating Temperature:80°C
Input
Input Voltage Range:67.2 VDC to 154 VDC
Input Voltage:110 VDC
Maximum Input Current:5 A
Output
Number of Outputs:1
Output Voltage (Channel 1):24 VDC
Output Connector Type:Screw Terminal Block
Output Voltage:24 VDC
Output Current (Channel 1):20 A
Output Current:20 A
Features
Efficiency:92%
Power Rating:480 W
